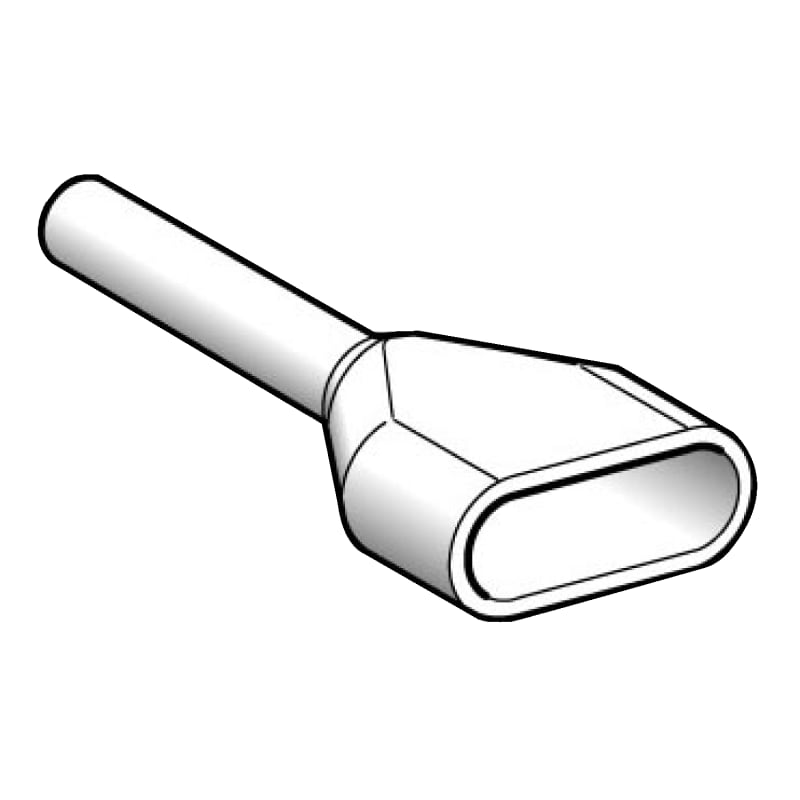

end ferrule double (AZ5DE005)

Schneider Electric AZ5DE005 end ferrule double.

Manufacturer part number (MPN)

AZ5DE005

EAN / GTIN

3389110768060

Sales unit

pcs

Package quantity

1000 pcs

Range of product

Linergy

Product or component type

Cable end

Cable end size

Medium

Standards

NF C 63-023

Type of packing

Individual bag

Quantity per set

Set of 1000

Cable cross section

0.5 mm²

Cable end type

Twin conductor

Additional information

Without marker tag holder

Colour

White

Bezel material

Halogen-free plastic

Tube material

Copper conforming to ISO 1337

Number of cables

2

AWG gauge

22 AWG

Bezel size

Ø 2.5 x 4.7 mm

Tube diameter

1.7 mm

Length

18.5 mm

Tube length

8 mm

Product weight

0.11 kg

Product certifications

cCSAus

Ambient air temperature for operation

-20…105 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.400 cm

Package 1 Width

0.400 cm

Package 1 Length

1.400 cm

Package 1 Weight

0.100 g

Unit Type of Package 2

BB1

Number of Units in Package 2

1000

Package 2 Height

2.000 cm

Package 2 Width

15.000 cm

Package 2 Length

15.000 cm

Package 2 Weight

116.000 g

Unit Type of Package 3

S02

Number of Units in Package 3

30000

Package 3 Height

15.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

3.786 kg

Country of origin

DE

Warranty (in months)

18

Sleeve length

8 mm

Insulated

Yes

Halogen free

No

Surface protection

Tinned

Total length

15 mm

Construction type

Twin cable end sleeve

Nominal cross section

0.5 mm²

For cables resistant to short circuit

No

Reel/roll packaging

No

Material

Copper

With identification flag

No

Material insulation

Polyamide (PA)

AWG size

22

HS Code

8536.90
