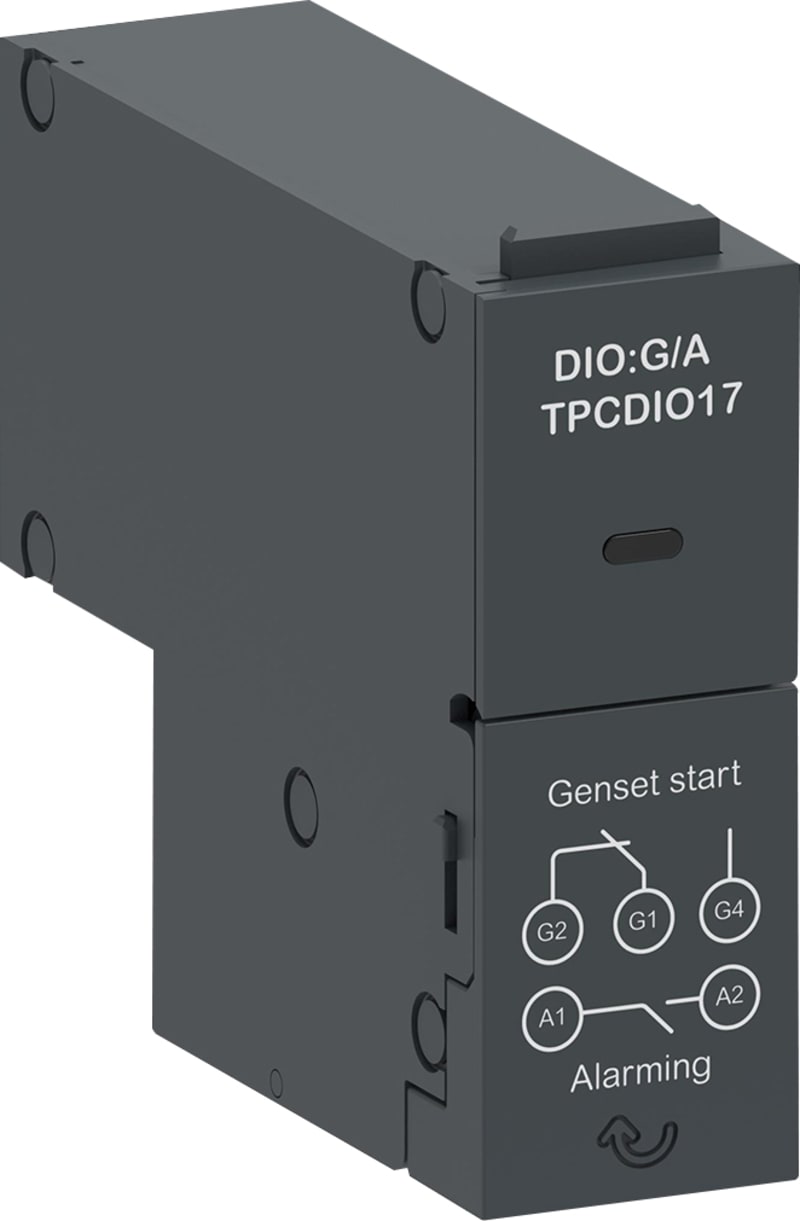

Schneider Electric function module, TransferPacT, genset start and alarm, output signal TPCDIO17
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TPCDIO17 Function Module-TransferPacT-Genset startsignal-tidsforsinket-and Alarm-utgangs-signal.
Technical Specifications
- Manufacturer part number (MPN)
- TPCDIO17
- EAN / GTIN
- 3606481066077
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- TransferPacT
- Product or component type
- I/O module
- Device application
- Signalling
- Auxiliary contact composition
- 2 NO + 1 NC
- Signalling function
- Genset start output signal; Alarm
- Auxiliary connection terminal
- Screw clamp terminal 0.05…2.6 mm²
- mounting mode
- Plug-in
- Mounting position
- Left-bottom
- [Ui] rated insulation voltage
- 300 V AC
- Tightening torque
- 0.6 N.m +/- 0.1 N.m
- Height
- 56.5 mm
- Width
- 20 mm
- Depth
- 69 mm
- Accessory / separate part category
- Signalling accessory
- IP degree of protection
- IP20
- Pollution degree
- 3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.600 cm
- Package 1 Width
- 10.600 cm
- Package 1 Length
- 10.800 cm
- Package 1 Weight
- 110.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 20
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 2.500 kg
- Country of origin
- CN
- Warranty (in months)
- 18
Cross References
- EAN 3606481066077
- SAP 1200586050
- Code 82956315
