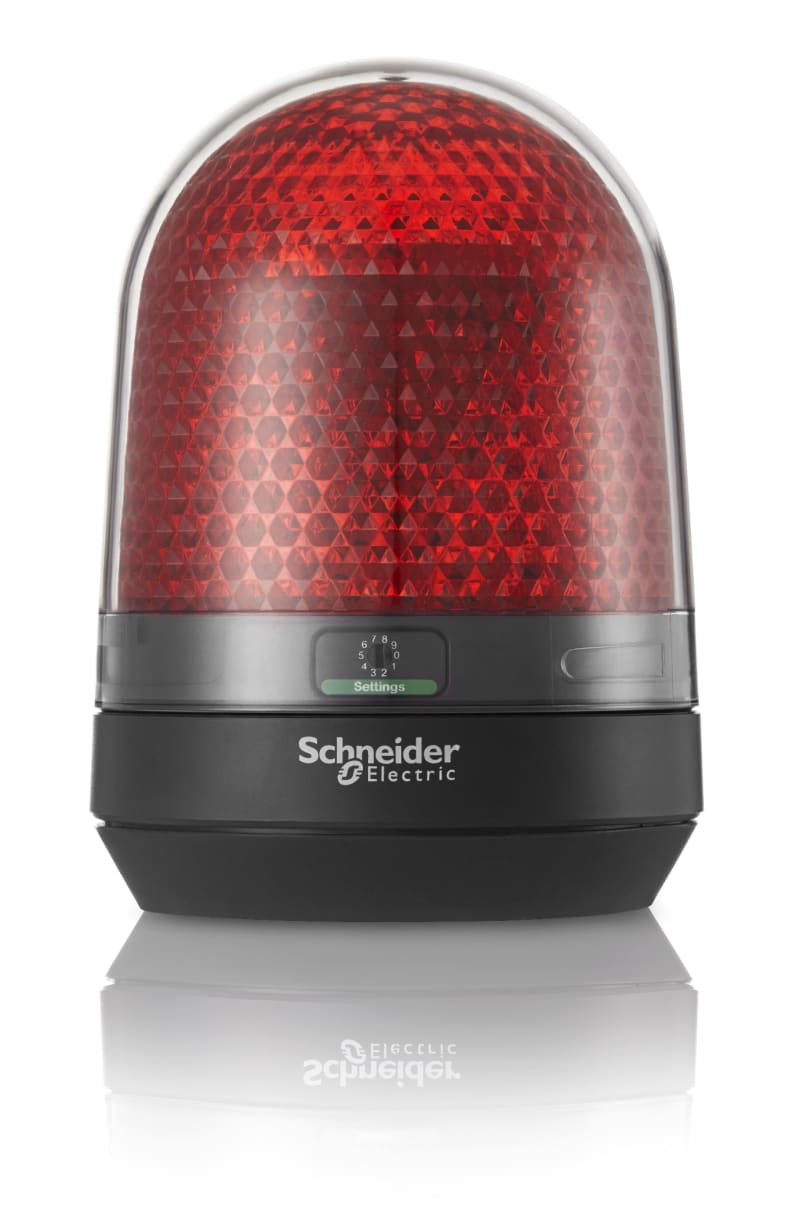

Warning Lamp 24VDC Red
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVR3B04 Harmony XVR3 Varsellamper.
Technical Specifications
- Manufacturer part number (MPN)
- XVR3B04
- EAN / GTIN
- 3606480611773
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V DC
- Range of product
- Harmony XVR
- Product or component type
- Beacon
- Device short name
- XVR3
- Beacon or indicator bank unit type
- LED unit
- Mounting diameter
- 100 mm
- Light source
- LED, red
- Device application
- Forklift; Automated guided vehicle (AGV); Bulldozer
- Signalling type
- Blinking; Rotating; Flashing
- Assembly style
- Ready assembled
- Material
- PC (polycarbonate): lenses; PBT (polybutylene terephthalate) + PC (polycarbonate): body; EPDM (ethylene propylene diene monomer): base
- [Us] rated supply voltage
- 12...24 V DC
- [Ue] rated operational voltage
- 10...30 V DC
- Inrush current
- 3 A
- Power consumption in W
- 2.8 W
- Marking
- CE
- Installation direction
- Upright indoor; Sideways indoor; Inverted indoor; Upright outdoor
- Electrical insulation class
- Class II
- Current consumption
- 3000 mA
- Length
- 100 mm
- Width
- 100 mm
- Height
- 139 mm
- Product weight
- 0.484 kg
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -35…70 °C
- Relative humidity
- 35…85 % without condensation
- Vibration resistance
- 4.6 gn (sideways); 4.6 gn (inverted); 7.1 gn (upright)
- IP degree of protection
- IP65 (upright); IP23 (sideways); IP23 (inverted)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- CN
- Warranty (in months)
- 18
- Nominal voltage
- 24 V
- Type of current
- DC
- Degree of protection (IP)
- IP65
- Colour of lamp hood
- Orange
- Lamp type
- LED
- Optics
- Mirror
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480611773
- SAP 1000704499
- Code 8185046
