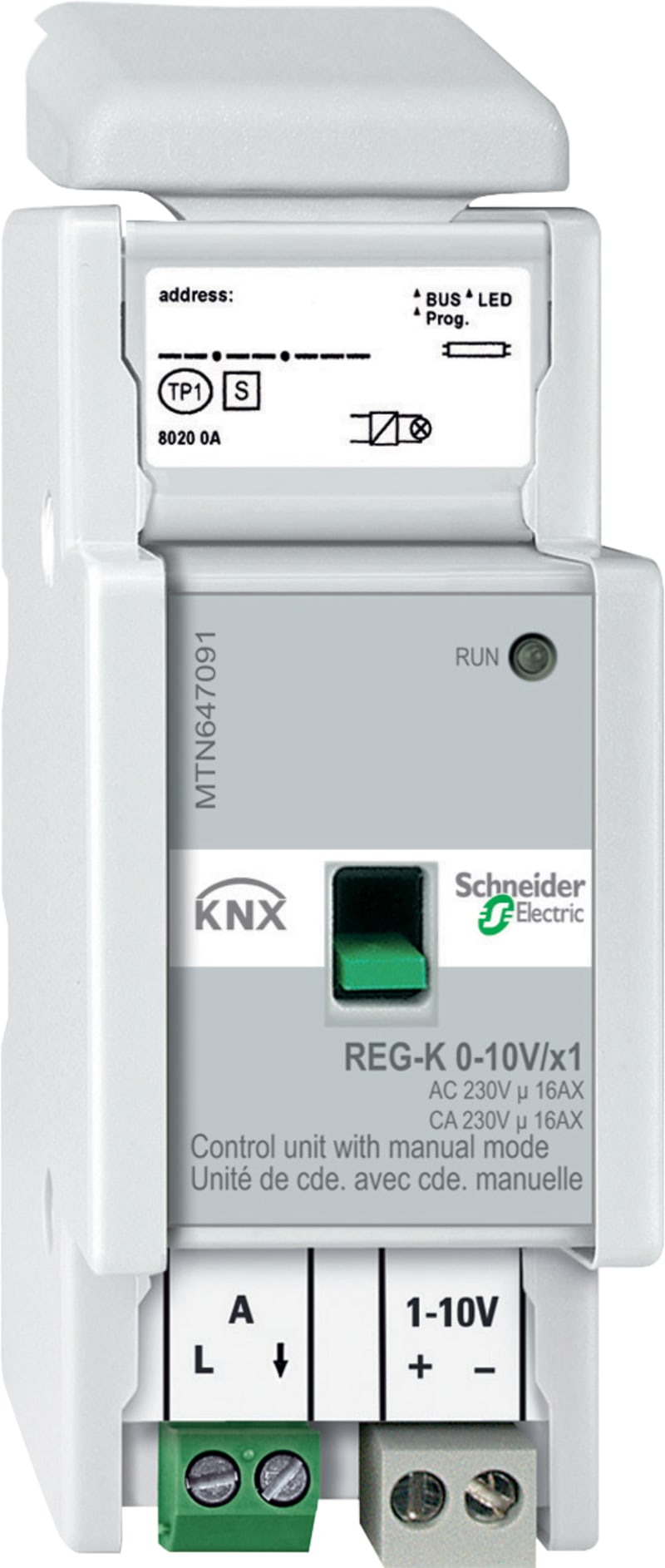

Schneider Electric MTN647091 Control unit 0-10 V REG-K/1-GANG with manual mode, light grey
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric MTN647091 Control unit 0-10 V REG-K/1-GANG with manual mode, light grey is listed under Electrical Components. Sales unit: pcs; Package quantity: 10 pcs; Range of product: SpaceLogic KNX; Product or component type: Dimming actuator; Operating mode: KNX bus system; Manual; Bus type: KNX.
Technical Specifications
- Manufacturer part number (MPN)
- MTN647091
- EAN / GTIN
- 3606485100043
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- SpaceLogic KNX
- Product or component type
- Dimming actuator
- Operating mode
- KNX bus system; Manual
- Bus type
- KNX
- Colour tint
- Light grey
- Range
- SpaceLogic KNX
- Power supply input current
- 17.5 mA
- total number of 18 mm modules
- 2.5
- Mounting support
- DIN rail
- [Ue] rated operational voltage
- 100...240 V AC 50...60 Hz
- Input current
- 0.12…100 mA
- Analogue output type
- Voltage
- Analogue output range
- 1...10 V
- Number of outputs
- 1
- [In] rated current
- 16 A
- Load type
- Incandescent lamps: <= 1600 W, 100 V AC; Incandescent lamps: <= 3600 W, 16 A, 200 µF, 230 V AC; Incandescent lamps: <= 3840 W, 240 V AC; Halogen lamps: <= 1086 W, 100 V AC; Halogen lamps: <= 2500 W, 230 V AC; Halogen lamps: <= 2608 W, 240 V AC; Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC; Capacitive: <= 2608 VA, 16 A, 200 µF, 100...240 V AC
- Main colour tint
- Light grey
- IP degree of protection
- IP20
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.200 cm
- Package 1 Width
- 12.700 cm
- Package 1 Length
- 15.800 cm
- Package 1 Weight
- 252.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 19.700 cm
- Package 2 Width
- 30.600 cm
- Package 2 Length
- 40.400 cm
- Package 2 Weight
- 2.664 kg
- Country of origin
- LV
- Warranty (in months)
- 18
- Other bus systems
- None
- Width in number of modular spacings
- 2.5
- Max. switching power
- 3600 W
- Max. control current
- 100 mA
- Degree of protection (IP)
- IP20
- Mounting method
- DRA (DIN-rail adaptor)
- Max. switching current (resistive load)
- 16 A
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606485100043
- SAP 1000325175
- Code 8872045
Product Documentation
