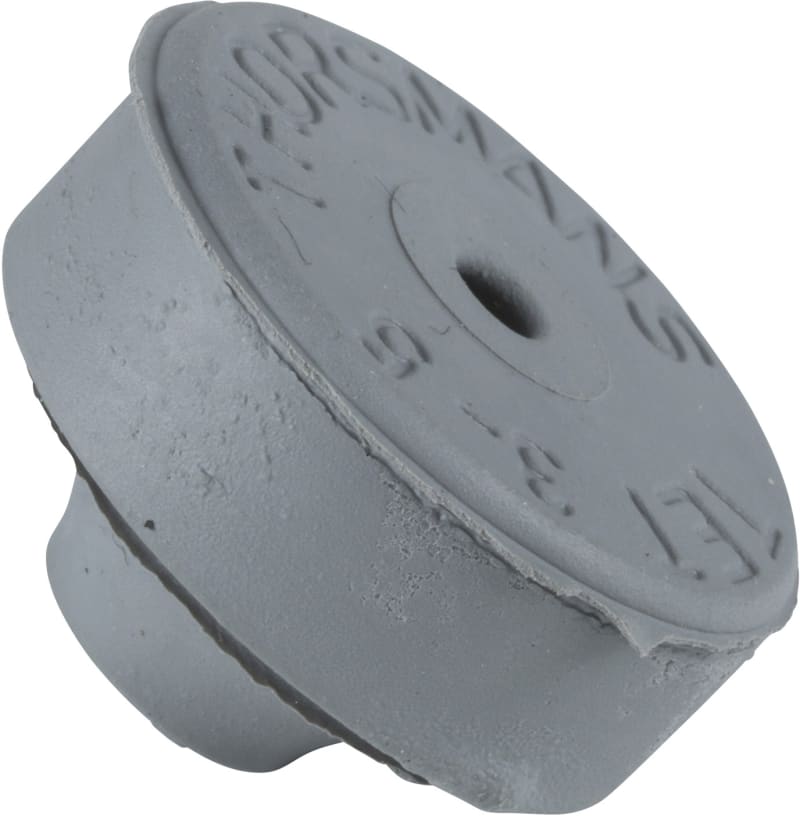

Schneider Electric Thorsman TET - grommet - grey - ISO M32 - diameter 14 to 20 IMT36183
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT36183 Membrane Gland, suitable for wall between 1 for 4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- IMT36183
- EAN / GTIN
- 3606480163821
- Sales unit
- pcs
- Package quantity
- 50 pcs
- IP rating
- IP67
- product range
- Thorsman TET
- product type
- Grommet
- colour
- Grey
- quantity per package
- Set of 50
- Material
- Rubber
- ISO thread
- M32
- Cable outer diameter
- 14…20 mm
- Drilling diameter
- 32.4 mm
- Height
- 30 mm
- Width
- 48 mm
- Length
- 48 mm
- Main colour tint
- Grey
- Colour tint
- Grey
- IP-Class
- IP67
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Number of Units in Package 3
- 850
- Country of origin
- SE
- Warranty (in months)
- 18
- Model
- Closed
- Halogen free
- Yes
- Surface protection
- Untreated
- Cable entry
- Round
- With strain relief
- No
- Material quality
- Ethylene-propylene diene monomer rubber (EPDM)
- Thread size (metric)
- 32
- Angle model
- No
- Suitable for cable diameter
- 14–20 mm
- Degree of protection (IP)
- IP67
- Bore diameter
- 32 mm
- For wall thickness
- 1–4 mm
- Shrink technique
- No
- Number of cables
- 1
- Suitable for cable gland
- No
Standards & Compliance
- HS Code
- 4016.99
Cross References
- EAN 3606480163821
- SAP 1000090395
- Code 8893974
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LV429274 automatic auxiliary connector, moving part, ComPact NSX 100/160/250, for circuit breaker, 1 to 9 wires
Schneider Electric
Schneider Electric NSYS3D10630P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000X600X300MM, IP66, IK10
Schneider Electric

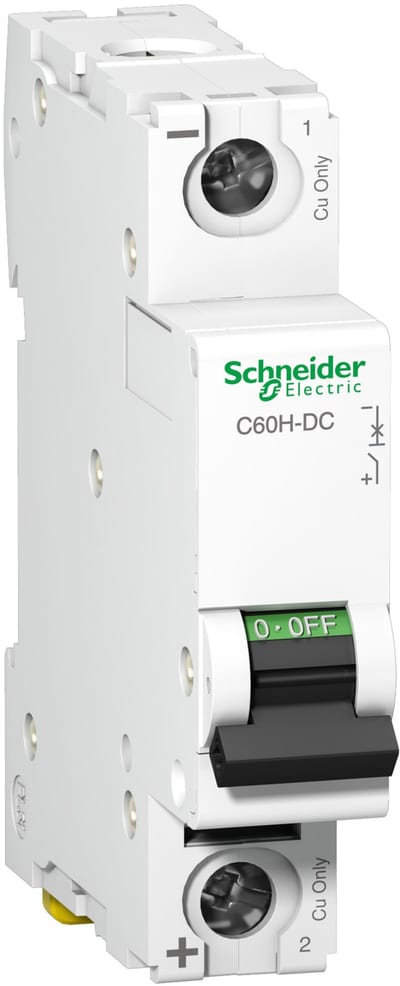

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 1P, 6A, C curve, 6KA (IEC/EN 60947-2) A9N61506
Schneider Electric

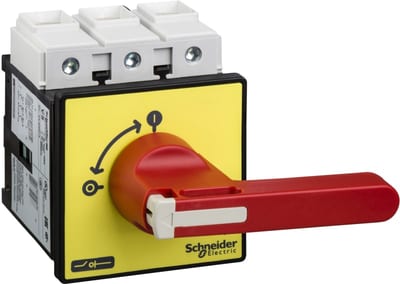

Schneider Electric TeSys Vario - emergency stop switch disconnector - 125 A - on door VCF5
Schneider Electric

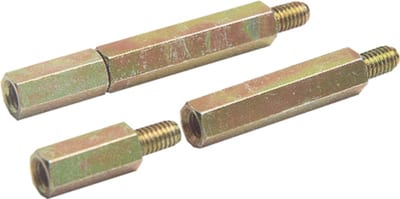

Spacer M6 height 40 (NSYEX406)
Schneider Electric

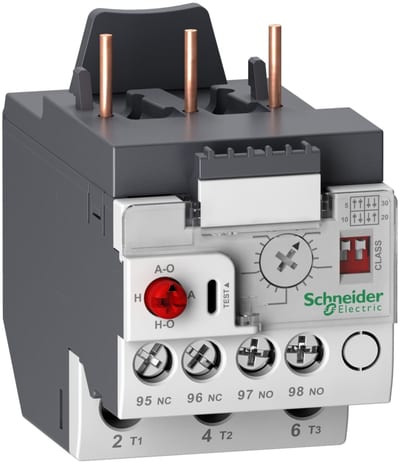

Schneider Electric TeSys LRD - electronic thermal overload relay - 3P - 1.6...8 A LR9D08
Schneider Electric

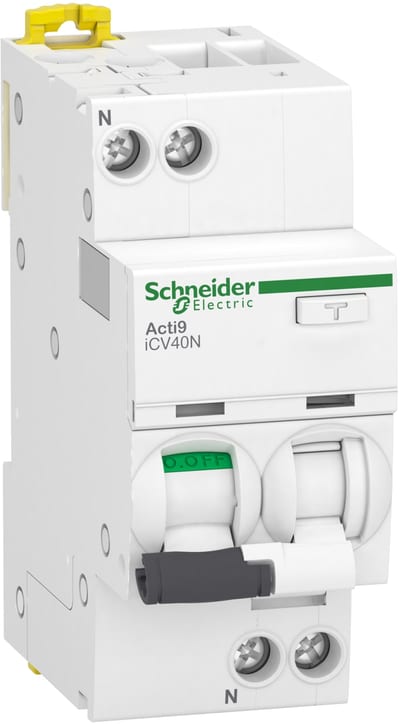

Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 1P+N, 6 A, C Curve, 6000 A, 30 mA, A type A9DC3606
