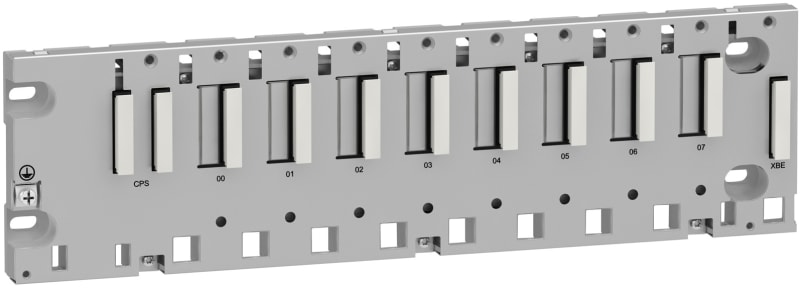

Schneider Electric BMXXBP0800 rack M340 - 8 slots - panel, plate or DIN rail mounting
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric BMXXBP0800 rack M340 - 8 slots - panel, plate or DIN rail mounting is listed under Computer & Electronics / Racks & Enclosures. Sales unit: pcs; Package quantity: 7 pcs; Range of product: Modicon X80; Product or component type: Backplane; Power consumption in W: 2.21 W; Electrical connection: 1 connector (XBE) expansion module.
Technical Specifications
- Manufacturer part number (MPN)
- BMXXBP0800
- EAN / GTIN
- 3595863909012
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Range of product
- Modicon X80
- Product or component type
- Backplane
- Number of slots
- 8 bus X
- Product compatibility
- BMXP34 processor; BMXCPS power supply; I/O module; Specific application module
- Power consumption in W
- 2.21 W
- Electrical connection
- 1 connector (XBE) expansion module
- Fixing mode
- By 4 M4/M5/M6 screws, mounting on panel; By 4 M4/M5/M6 screws, mounting on mounting plate; By clips, mounting on 35 mm symmetrical DIN rail
- Height
- 103.7 mm
- Width
- 372.8 mm
- Depth
- 19 mm
- Product weight
- 0.95 kg
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Product certifications
- CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy
- Standards
- EN/IEC 61131-2; EN/IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.600 cm
- Package 1 Width
- 15.300 cm
- Package 1 Length
- 45.500 cm
- Package 1 Weight
- 996.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 9.783 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 36
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 51.132 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- AC/DC
- Redundancy
- No
- With integrated power supply
- Yes
- Suitable for rail mounting
- Yes
- Appendant operation agent (Ex ia)
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- Yes
- Wall mounting/direct mounting
- Yes
- Performance level according to EN ISO 13849-1
- None
- Type of output voltage
- AC/DC
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863909012
- SAP 1000204114
- Code 8736284
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric NSYS3D10840P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000X800X400MM, IP66, IK10
Schneider Electric

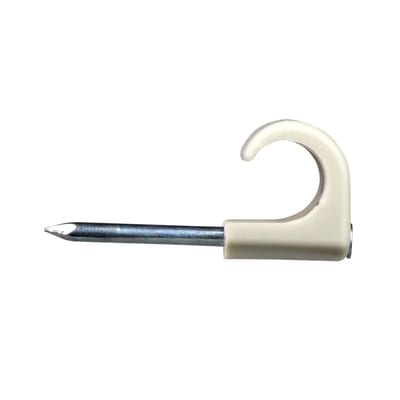

TC nail clip 5-7 natural 25 pcs
IMT37425
Schneider Electric
Modbus termination, RJ45
VW3A8306RC
Schneider Electric

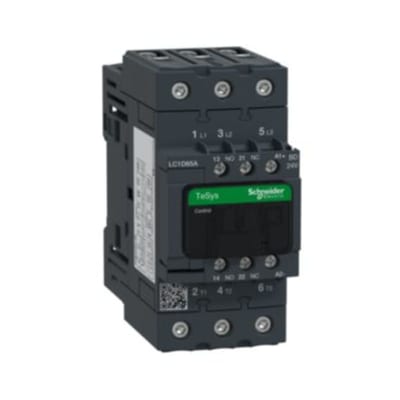

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 65A, 24V DC standard coil, screw clamp terminals LC1D65ABD
Schneider Electric

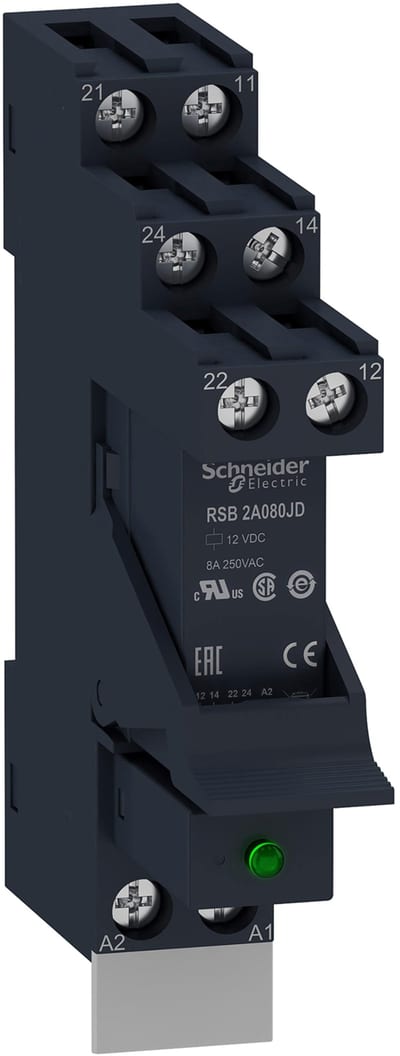

Schneider Electric Harmony, Interface plug-in relay pre-assembled, 8 A, 2 CO, with LED, with protection circuit, 12 V DC RSB2A080JDPV
Schneider Electric

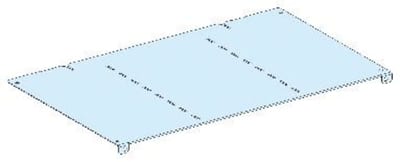

Schneider Electric Form 3 horizontal partition LVS04901
Schneider Electric

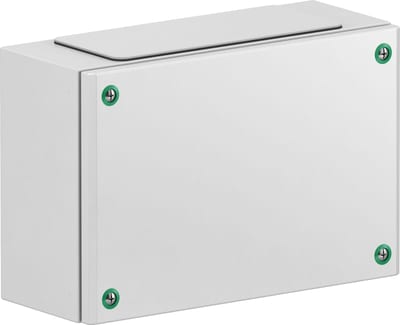

Schneider Electric Metal industrial box plain door H200XW200XD80 IP66 IK10 RAL 7035 NSYSBM20208
Schneider Electric

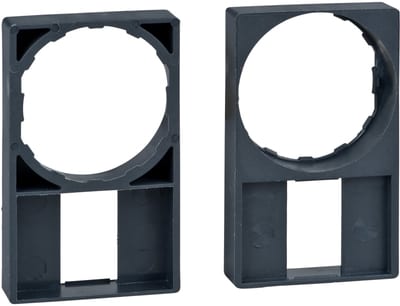

Schneider Electric ZBZ35 legend holder 30 x 50 mm with legend 18 x 27 mm unmarked
