Modbus termination, RJ45
Pricing
Request a quote
We reply within 24 hours
Product Description

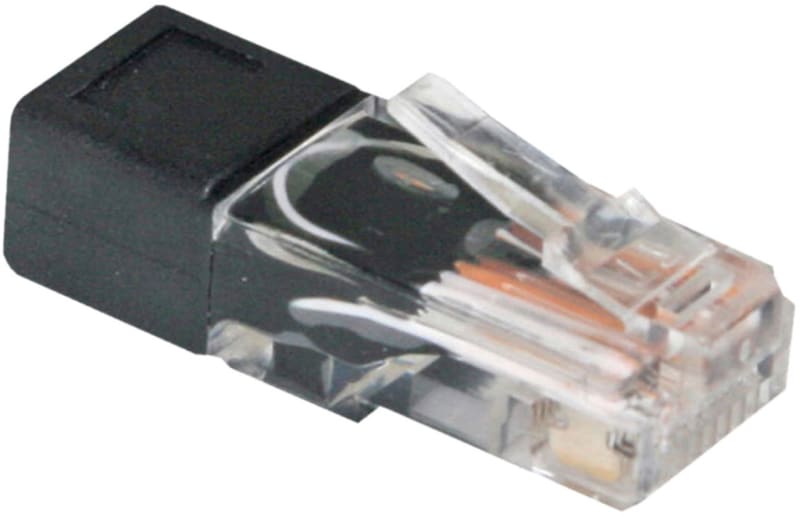

Schneider Electric VW3A8306RC — Modbus line terminator - for end of RS485 line - RJ45 connector.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A8306RC
- EAN / GTIN
- 3389110400533
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Range of product
- Altivar
- Bus type
- Modbus
- Accessory / separate part category
- Connection accessory
- Accessory / separate part type
- Line terminator
- Accessory / separate part destination
- RJ45 connector
- Quantity per set
- Set of 2
- Range compatibility
- Altivar 61; Altivar 71Q; Altivar Easy 310; Altivar 31; Preventa XPS MF; Altivar Machine ATV320; Altivar 32; Lexium SD3; Modicon LMC058; Altivar Easy 610; Altivar 21; Zelio Logic; Altivar Process ATV600; Altistart 48; Altivar Process ATV900; Modicon M258; Altivar 312; Altivar Machine ATV340 except Sercos drives; Modicon M238; Altivar 61Q; Altivar 31C; Altistart 22; Altivar 212; Altivar 71; Altivar 12
- Communication port protocol
- Modbus
- Terminator resistance
- 120 Ohm
- Terminator capacitance
- 1 nF
- Product weight
- 0.2 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 6.000 cm
- Package 1 Weight
- 9.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 100
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 1.548 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 800
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 22.384 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.21
Cross References
- EAN 3389110400533
- SAP 1000253726
- Code 8220156
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 65A, 24V DC standard coil, screw clamp terminals LC1D65ABD
Schneider Electric
Schneider Electric Harmony, Interface plug-in relay pre-assembled, 8 A, 2 CO, with LED, with protection circuit, 12 V DC RSB2A080JDPV
Schneider Electric
Schneider Electric Form 3 horizontal partition LVS04901
Schneider Electric
Schneider Electric Metal industrial box plain door H200XW200XD80 IP66 IK10 RAL 7035 NSYSBM20208
Schneider Electric
Schneider Electric ZBZ35 legend holder 30 x 50 mm with legend 18 x 27 mm unmarked
Schneider Electric
Schneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NO (fault) GVAD1001
Schneider Electric
Schneider Electric Metal industrial box plain door H200XW200XD120 IP66 IK10 RAL 7035 NSYSBM202012
Schneider Electric
Indicator LAMP,RED < 250V BA9S
XB4BV64
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy VW3A8306RC?
- VW3A8306RC can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is VW3A8306RC.
- What is the HS code for VW3A8306RC?
- The customs tariff (HS) code for VW3A8306RC is 8533.21.
- Who manufactures VW3A8306RC?
- VW3A8306RC is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for VW3A8306RC?
- Yes — the VW3A8306RC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for VW3A8306RC?
- The minimum order quantity is 1.
- Is VW3A8306RC available?
- Yes — VW3A8306RC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
