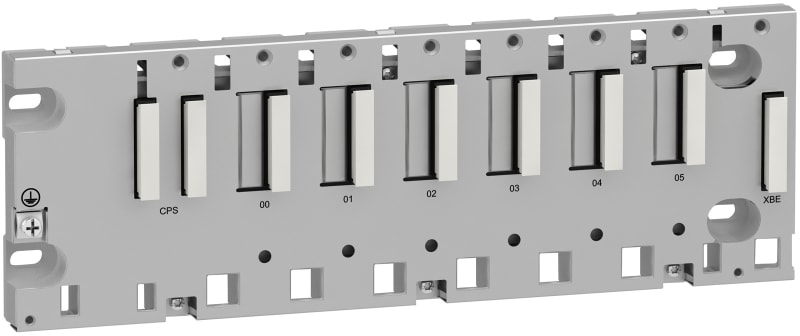

M340 RACK, 6 Modules
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMXXBP0600 M340 rack, 6 modules.
Technical Specifications
- Manufacturer part number (MPN)
- BMXXBP0600
- EAN / GTIN
- 3595863908909
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Range of product
- Modicon X80
- Product or component type
- Backplane
- Number of slots
- 6 bus X
- Product compatibility
- BMXP34 processor; BMXCPS power supply; I/O module; Specific application module
- Power consumption in W
- 1.68 W
- Electrical connection
- 1 connector (XBE) expansion module
- Fixing mode
- By 4 M4/M5/M6 screws, mounting on panel; By 4 M4/M5/M6 screws, mounting on mounting plate; By clips, mounting on 35 mm symmetrical DIN rail
- Height
- 103.7 mm
- Width
- 307.6 mm
- Depth
- 19 mm
- Product weight
- 0.79 kg
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Product certifications
- CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy
- Standards
- EN/IEC 61131-2; EN/IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.700 cm
- Package 1 Width
- 15.300 cm
- Package 1 Length
- 39.500 cm
- Package 1 Weight
- 835.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 8.385 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 36
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 45.540 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- AC/DC
- Redundancy
- No
- With integrated power supply
- Yes
- Suitable for rail mounting
- Yes
- Appendant operation agent (Ex ia)
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- Yes
- Wall mounting/direct mounting
- Yes
- Performance level according to EN ISO 13849-1
- None
- Type of output voltage
- AC/DC
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863908909
- SAP 1000009548
- Code 873327
Product Documentation
More from Schneider Electric
Schneider Electric

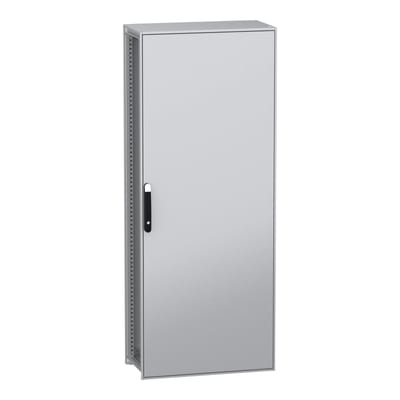

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X800X400MM, IP55 NSYSFN20840
Schneider Electric

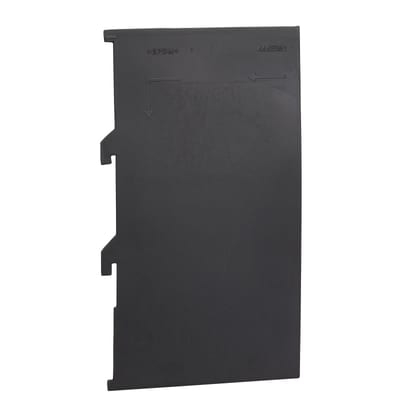

Faseskille 3P/4P MTZ1 withdrawable
LV833768SP
Schneider Electric
Schneider Electric Busbar Cover Vertical MTZ2/NW/ISFL W650 PrismaSet P LVS04860
Schneider Electric

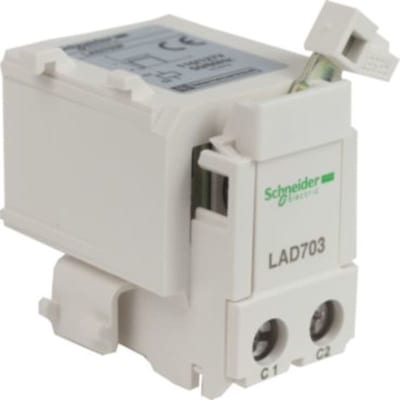

Schneider Electric TeSys D thermal overload relays - remote electrical stop - 220...230 V DC/AC LAD703M
Schneider Electric

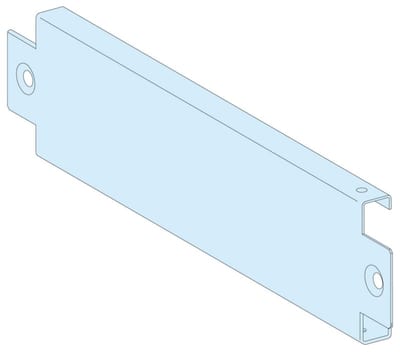

Side Plates for PLINTH-2 PCS-D600-PRISMA P
LVS08721
Schneider Electric

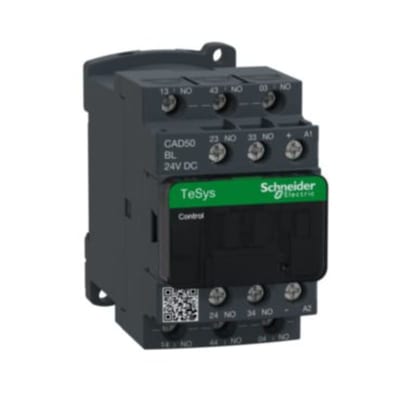

Schneider Electric TeSys D control relay - 5 NO - <= 690 V - 24 V DC low consumption coil CAD50BL
Schneider Electric

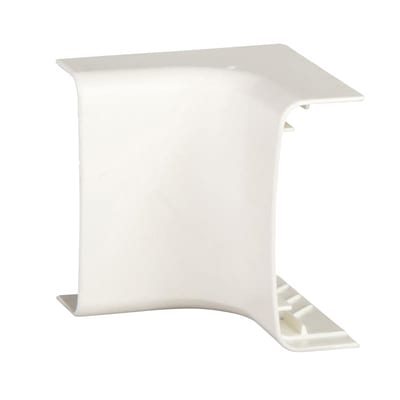

OL Internal corner 1845 HF PC/ABS Pure white
ISM14501P
Schneider Electric

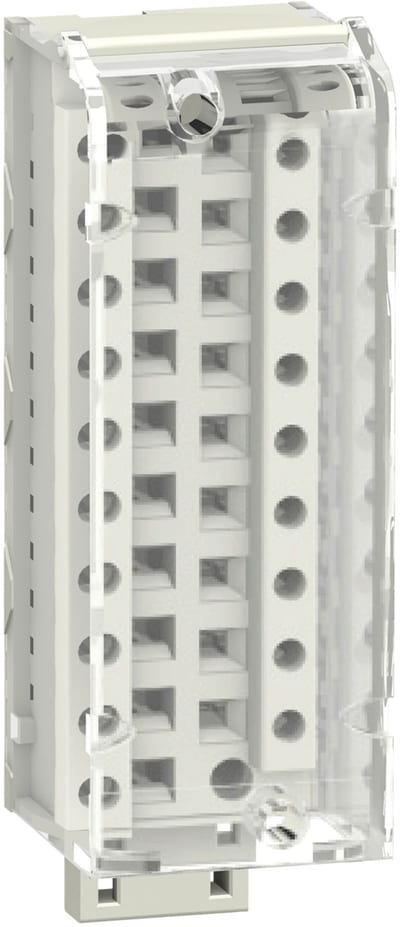

Schneider Electric 20-Pin removable screw clamp terminal blocks - 1 or 2 x 0.34..1.5 MM2 BMXFTB2010
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BMXXBP0600?
- BMXXBP0600 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is BMXXBP0600.
- What is the HS code for BMXXBP0600?
- The customs tariff (HS) code for BMXXBP0600 is 8536.90.
- Who manufactures BMXXBP0600?
- BMXXBP0600 is a Schneider Electric product in the Computer & Electronics range.
- Is a datasheet available for BMXXBP0600?
- Yes — the BMXXBP0600 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BMXXBP0600?
- The minimum order quantity is 1.
- Is BMXXBP0600 available?
- Yes — BMXXBP0600 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
