Side Plates for PLINTH-2 PCS-D600-PRISMA P
Pricing
Request a quote
We reply within 24 hours
Product Description

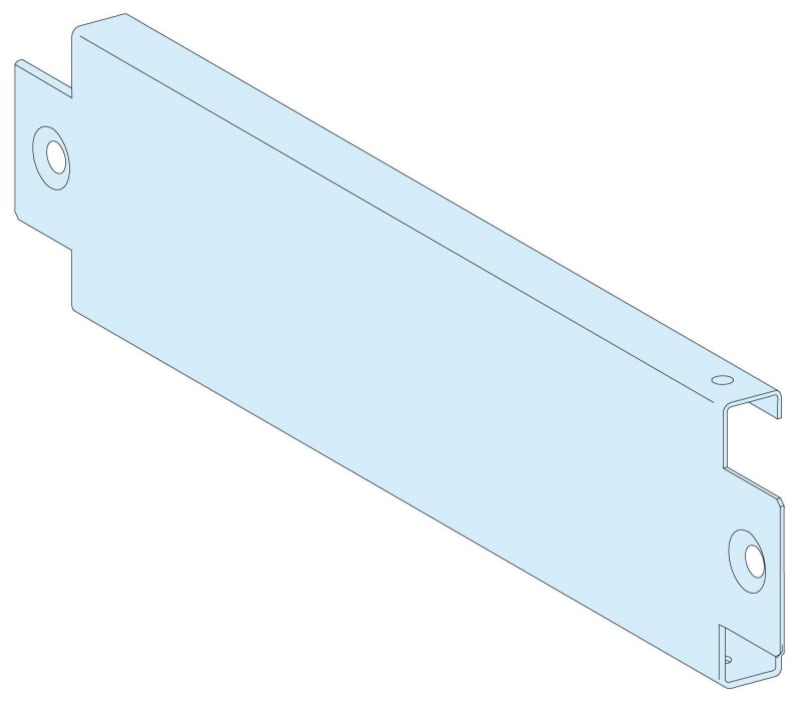

Schneider Electric LVS08721 Side Plates for plinth-2 pcs-depth 600mm-height 100mm-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08721
- EAN / GTIN
- 3606481877703
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Plinth side panel
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Product compatibility
- IP31 enclosure; IP41 enclosure
- installation description
- Cubicle, depth 600 mm; Duct, depth 600 mm
- Quantity per set
- Set of 2
- Height
- 100 mm
- Depth
- 600 mm
- Product weight
- 1.08 kg
- Surface finish
- Textured; Matt
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 11.500 cm
- Package 1 Length
- 44.000 cm
- Package 1 Weight
- 1.118 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 323
- Package 2 Height
- 72.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 375.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Width
- 25 mm
- Model
- Base side set
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building depth
- 600 mm
- Material
- Steel
- RAL-number (similar)
- 9003
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- Yes
- Suitable for outdoor installation
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877703
- SAP 1200547344
- Code 82880662
Product Documentation
