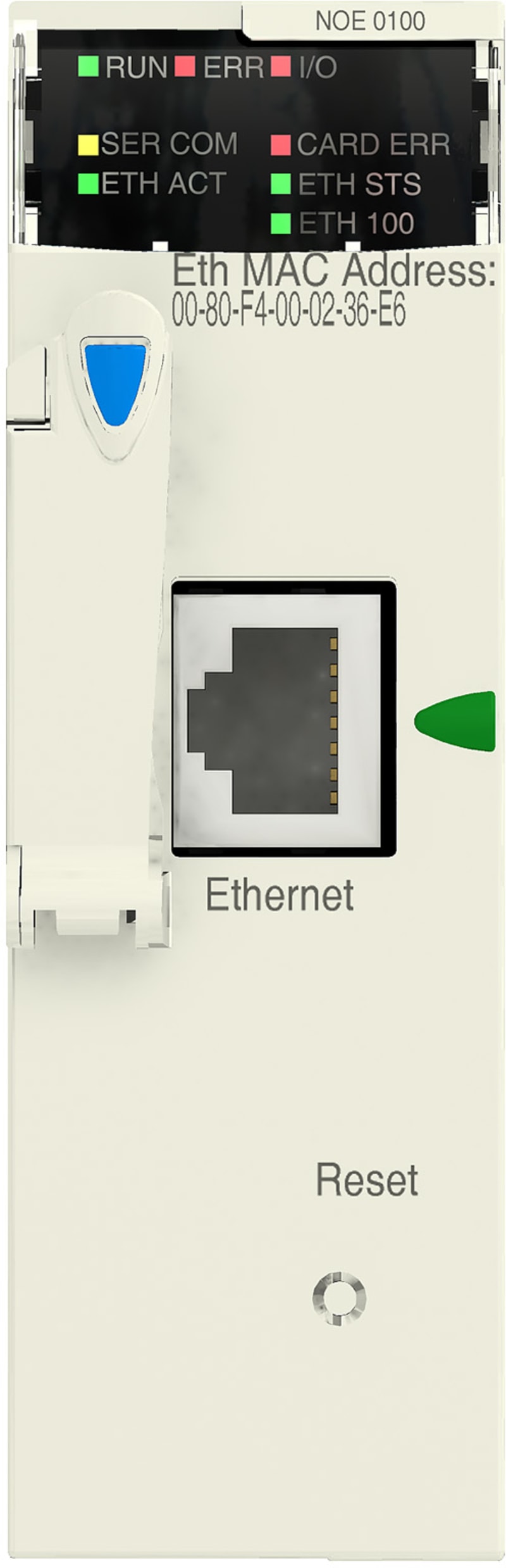

Schneider Electric BMXNOE0100 Ethernet module M340 - flash memory card - 1 x RJ45 10/100
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric BMXNOE0100 Ethernet module M340 - flash memory card - 1 x RJ45 10/100 is listed under Communications / Network & Data. Sales unit: pcs; Range of product: Modicon M340 automation platform; Product or component type: Ethernet TCP/IP network module; Concept: Transparent Ready; Protective treatment: TC; Port Ethernet: 10BASE-T/100BASE-TX.
Technical Specifications
- Manufacturer part number (MPN)
- BMXNOE0100
- EAN / GTIN
- 3595863910674
- Sales unit
- pcs
- Range of product
- Modicon M340 automation platform
- Product or component type
- Ethernet TCP/IP network module
- Concept
- Transparent Ready
- Integrated connection type
- Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
- Protective treatment
- TC
- Communication service
- Bandwidth management; Data Editor (via PC terminal); FDR server; Rack Viewer; SNMP network administrator; Global Data; I/O scanning; Modbus TCP messaging; Web server configurable
- Port Ethernet
- 10BASE-T/100BASE-TX
- Memory description
- Supplied Flash memory card (BMXRWSC016M)
- Memory usage
- Application saving; Activating the standard web server
- Supply
- Internal power supply via rack
- Marking
- CE
- Local signalling
- 1 LED (green) for activity on Ethernet network (ETH ACT); 1 LED (green) for processor running (RUN); 1 LED (green) for status of Ethernet network (ETH STS); 1 LED (red) for data rate (ETH 100); 1 LED (red) for memory card fault (CARD ERR); 1 LED (red) for processor or system fault (ERR)
- Control type
- RESET push-button cold restart
- Current consumption
- 90 mA at 24 V DC
- Module format
- Standard
- Product weight
- 0.2 kg
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- IP degree of protection
- IP20
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.100 cm
- Package 1 Width
- 11.000 cm
- Package 1 Length
- 11.500 cm
- Package 1 Weight
- 235.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 15
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.868 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Power consumption
- 1.1 W
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Number of HW-interfaces industrial Ethernet
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Redundancy
- No
- Type of data transmission
- Module rack extension
- Transmission rate
- 100000 kBit/s
- With potential separation
- Yes
- SIL according to IEC 61508
- None
- Suitable for safety functions
- No
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 29 mm
- Height
- 100 mm
- Depth
- 160 mm
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3595863910674
- SAP 1000063572
- Code 8895740
Product Documentation
More from Schneider Electric
Schneider Electric

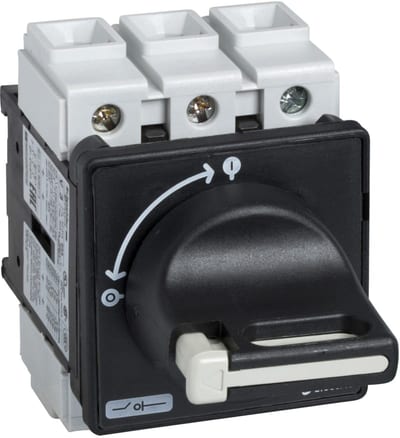

Schneider Electric TeSys Vario - switch disconnector - 32 A - on door VBD1
Schneider Electric

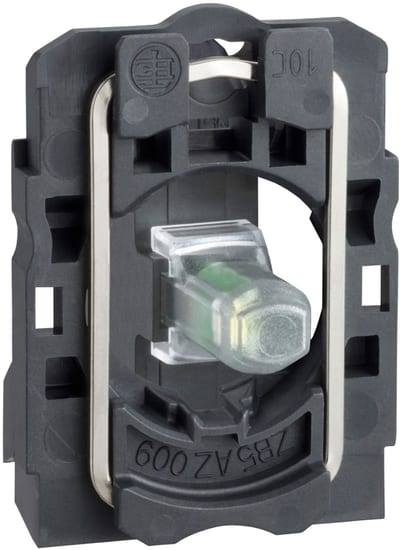

Schneider Electric Complete body/light block assembly, Harmony XB5, plastic, universal LED, body/fixing collar, 24V AC DC ZB5AVB1
Schneider Electric

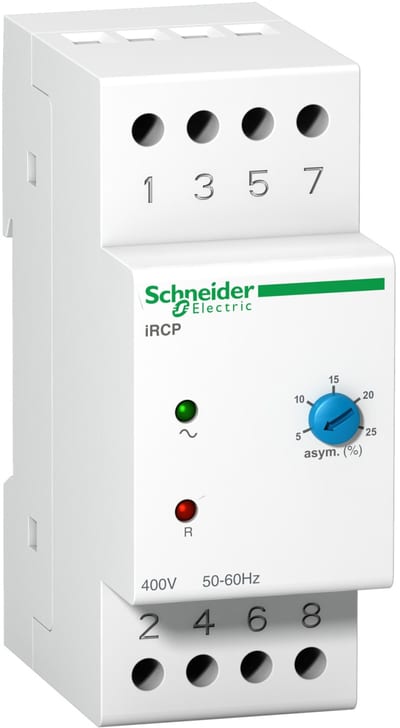

Schneider Electric phase control relay iRCP - 8 A - 400 V 50/60Hz - 1 OC A9E21180
Schneider Electric

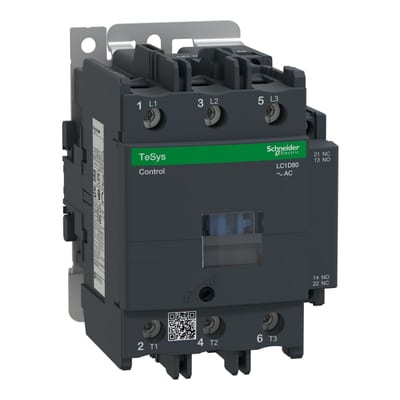

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, 440V, 80A, 110V AC 50/60Hz coil, screw clamp terminals LC1D80F7
Schneider Electric

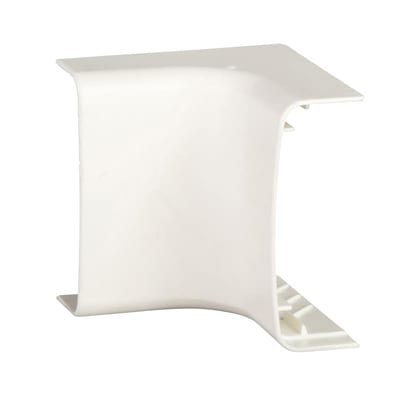

OL Internal corner 1230 HF PC/ABS Pure white
ISM14201P
Schneider Electric

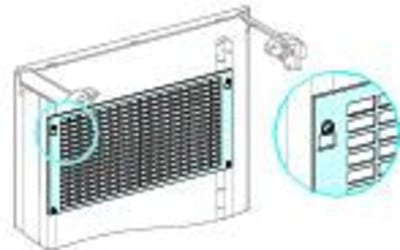

Mounting Plate-Perforated-Flat-4MOD.-PRISMASET G
LVS03170
Schneider Electric

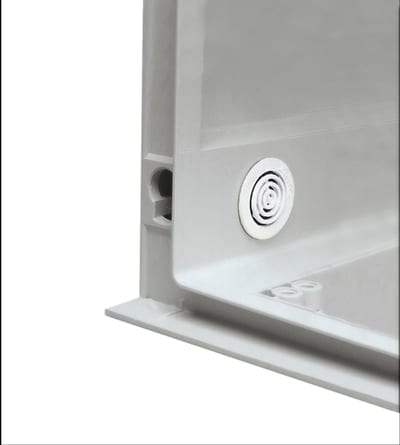

Schneider Electric NSYCAG35LP Airing grille cut-out diameter 35mm IP44
Schneider Electric

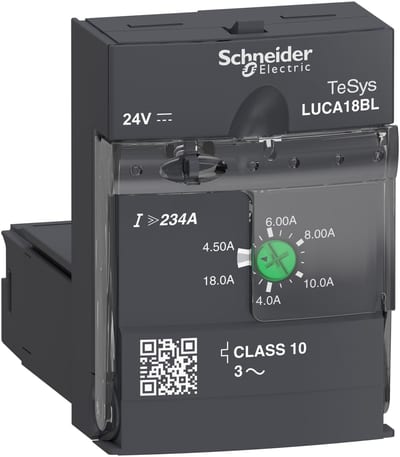

Schneider Electric Standard control unit, TeSys U, 4.5-18A, 3P motors, thermal magnetic protection, class 10, coil 24V DC LUCA18BL
