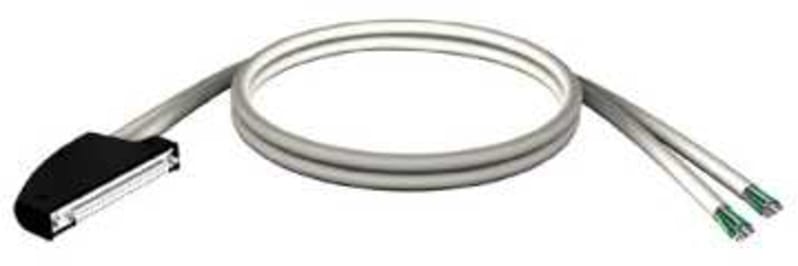

M340 Cable FCN 2*20 CONDUCTOR, 5M
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMXFCW503 M340 cable FCN 2*20 conductor, 5m.
Technical Specifications
- Manufacturer part number (MPN)
- BMXFCW503
- EAN / GTIN
- 3595863920185
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range of product
- Modicon X80
- Accessory / separate part type
- Preformed cordset
- Accessory / separate part designation
- Preformed cordset with one end with flying leads
- Accessory / separate part destination
- For I/O module with 40-way connectors
- Number of cables
- 2
- Electrical connection
- 1 connector 40 ways; 2 ends with color-coded flying leads conforming to DIN 47100
- Cable length
- 5 m
- Total number of wires
- 40
- Wire section
- 0.324 mm²
- AWG gauge
- 22 AWG
- Relative impedance
- 10 MOhm for <= 50 V; 100 MOhm for 50...250 V
- Product weight
- 1.49 kg
- Standards
- CSA C22.2 No 142; EN/IEC 61131-2; UL 508
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Number of Units in Package 3
- 192
- Country of origin
- TN
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3595863920185
- SAP 1000043117
- Code 8775637
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Floor standing encl. polyester vers.PLA compl.sealed 750X500X320 IP65 glazed NSYPLA753TG
Schneider Electric
Cover 6 pcs LC1F630/F800
LA9F704
Schneider Electric
Schneider Electric A9F92463 ACTI9 IC60L Miniature Circuit Breaker 4P 50 A, Curve Z
Schneider Electric
Schneider Electric TeSys K - Auxiliary contact block - 1 NO + 3 NC - screw-clamps terminals LA1KN13
Schneider Electric
Foot for gstav and pole white
INS45018
Schneider Electric
Bakelite Mounting Plate for PLA 105 Enclosure
NSYPMB105
Schneider Electric
Schneider Electric Plastic foot made of black polyamide. Packaging unit: 20 pieces NSYSPC
Schneider Electric

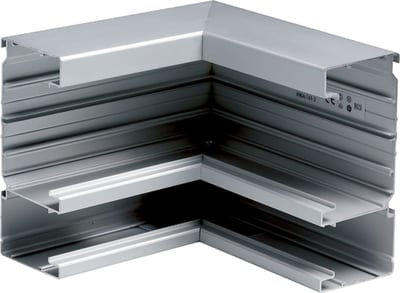

INKA IH 161-2 AN Innerhj
