Bakelite Mounting Plate for PLA 105 Enclosure
Pricing
Request a quote
We reply within 24 hours
Product Description

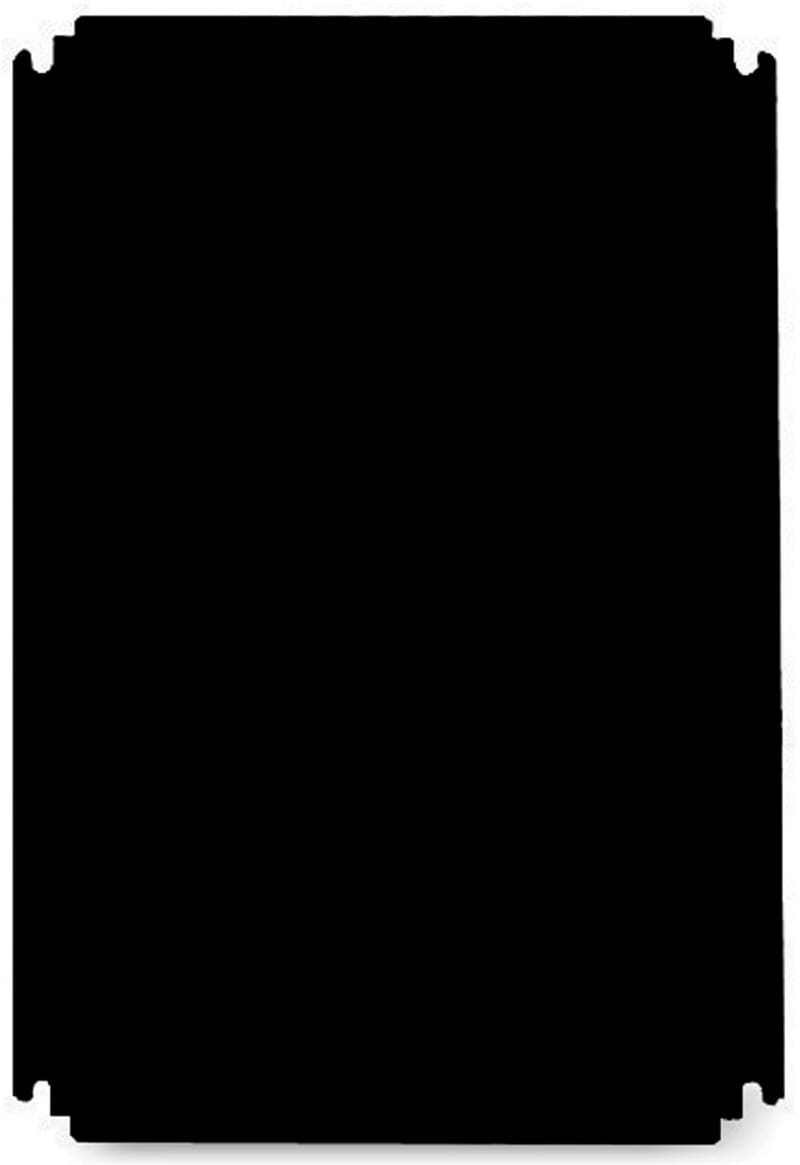

Schneider Electric NSYPMB105 bakelite (insulating) mounting plate for Thalassa PLA 105 polyester enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMB105
- EAN / GTIN
- 3606480194153
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Step slide; Back inserts
- Mounting plate description
- Insulating
- Range compatibility
- PanelSeT PLA PLA
- Device composition
- 1 mounting plate
- Material
- Bakelite
- Colour
- Black (RAL 9005)
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 1000 mm; Real: 890 mm
- Width
- Nominal: 500 mm; Real: 375 mm
- Depth
- Real : 125 mm
- thickness
- 5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.700 cm
- Package 1 Width
- 39.000 cm
- Package 1 Length
- 89.000 cm
- Package 1 Weight
- 2.450 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 45.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 49.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Untreated
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480194153
- SAP 1000318020
- Code 81019239
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Plastic foot made of black polyamide. Packaging unit: 20 pieces NSYSPC
Schneider Electric
INKA IH 161-2 AN Innerhj
5510200
Schneider Electric
Push-button flush black with text (ZB4FA233)
Schneider Electric
Adr. module EME210-IN
FFS06720311
Schneider Electric
Schneider Electric Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13 AP7821B
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 7.2E, ComPacT NSX100/160/250, 4 poles, basic and earth leakage protections, energy meter, 40A C1047E040
Schneider Electric
OFSP Auxiliary Contact ID 100-125A
16940
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H65W65D45 EXT.H74W74D56 Opaque cover H10 NSYTBS775
Technical guides
Catalogue entry last verified: 2026-10-02. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYPMB105?
- NSYPMB105 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYPMB105.
- What is the HS code for NSYPMB105?
- The customs tariff (HS) code for NSYPMB105 is 3926.90.
- Who manufactures NSYPMB105?
- NSYPMB105 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYPMB105?
- Yes — the NSYPMB105 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYPMB105?
- The minimum order quantity is 1.
- Is NSYPMB105 available?
- Yes — NSYPMB105 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
