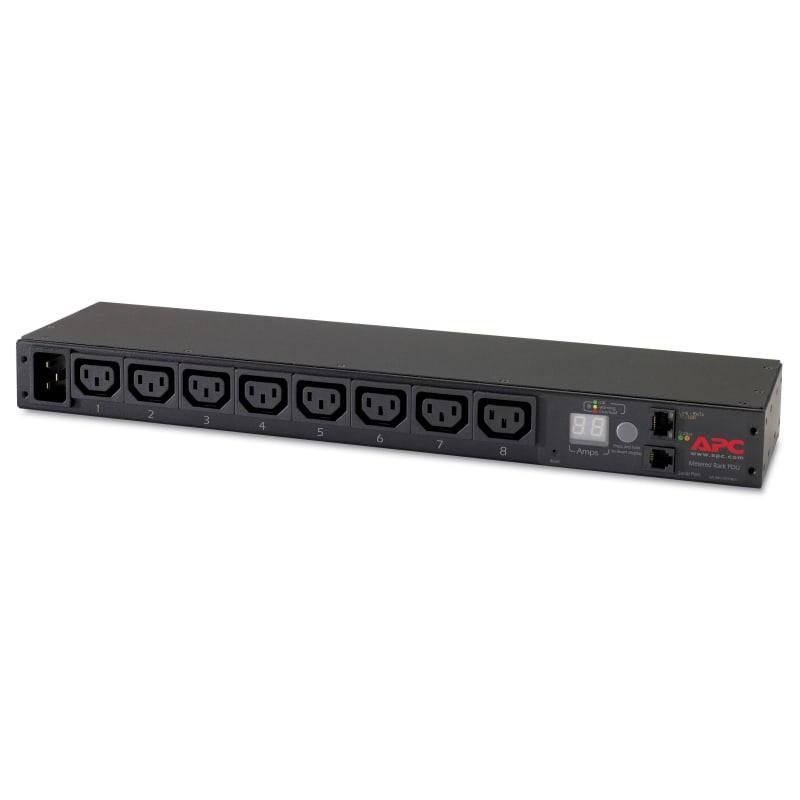

Schneider Electric Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13 AP7821B

Schneider Electric AP7821B RACK PDU, METERED, 1U, 16A, 208/230V, (8) C13.

Manufacturer part number (MPN)

AP7821B

EAN / GTIN

0731304331513

Sales unit

pcs

Product or component type

PDU

PDU type

Metered

Cord length

2.4 m

Provided equipment

Cord retention bracket(s); Installation guide; Rack mounting brackets; User manual

Input Voltage

200 V; 208 V; 230 V

Height

44 mm

Width

444 mm

Output Voltage

208 V; 230 V

Depth

102 mm

Product weight

1.74 kg

Mounting location

Front; Rear

Mounting preference

No preference

Input Plug Type

IEC 60320 C20

mounting mode

Rack-mounted

Rack units

1U

Mounting position

Horizontal

[In] rated current

16 A

Input current limits

20 A

Load capacity

3300 VA

Network frequency

50/60 Hz

Outlet type and quantity

8 IEC 60320 C13

Product certifications

cUL listed; C-Tick; CE; CSA; GOST; UL listed; VCCI; VDE

Standards

FCC part 15 class A; ICES-003; UL 60950

Ambient air temperature for operation

-5…45 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.4 cm

Package 1 Width

33.7 cm

Package 1 Length

47 cm

Package 1 Weight

2.92 kg

Country of origin

IN

Warranty (in months)

24

Nominal current

20 A

Mounting direction

Horizontal

Electrical connection

Connection cable with plug

Cable length

2.5 m

Number of C13 socket outlets

8

Number of height units

1

Length

102 mm

Supply voltage

230 V

Overvoltage category

1

Interface ethernet

Yes

Colour

Black

HS Code

8537.10
