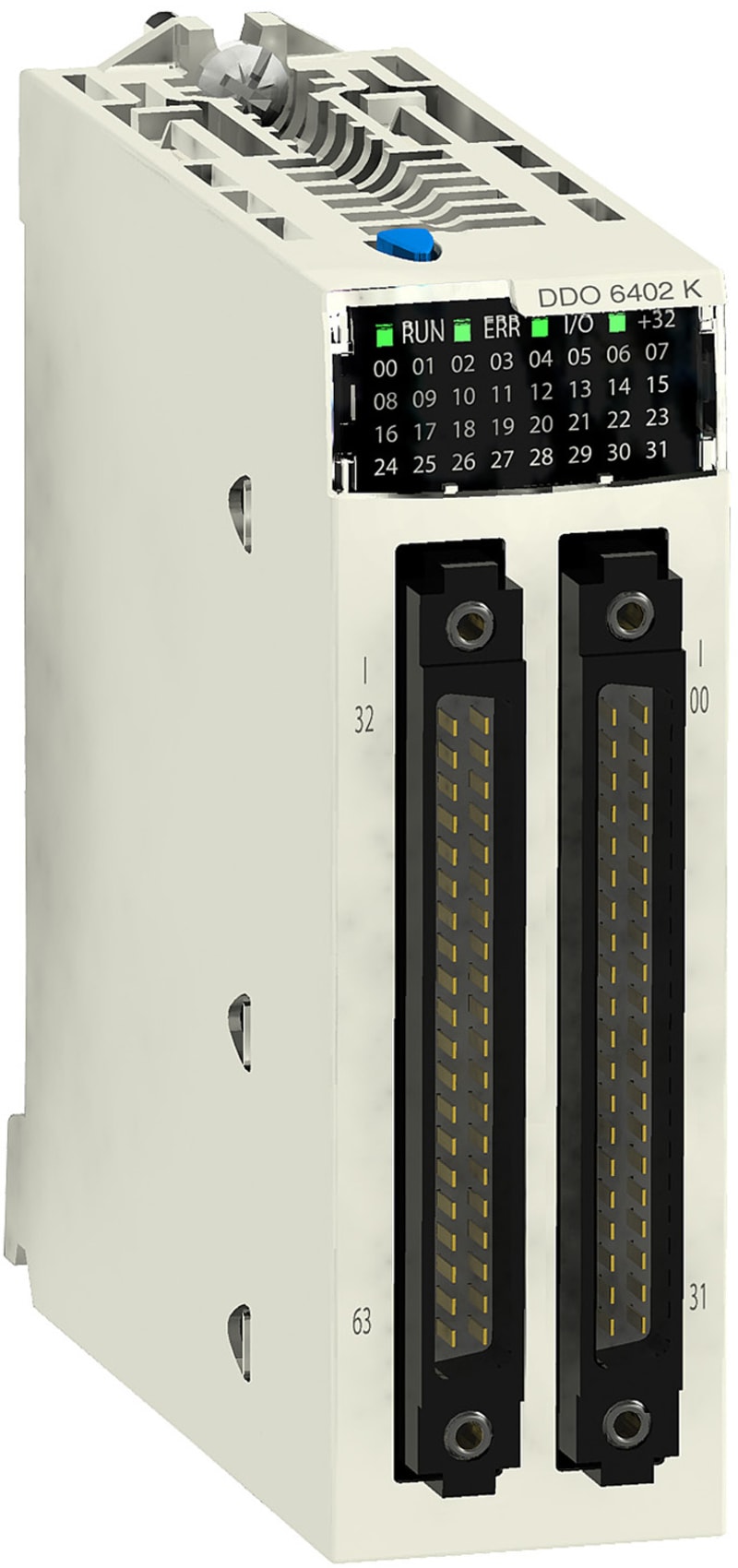

Schneider Electric BMXDDO6402K discrete output module X80 - 64 outputs - 24 V DC positive

Schneider Electric BMXDDO6402K discrete output module X80 - 64 outputs - 24 V DC positive is listed under Control & Automation / I/O Modules. Sales unit: pcs; Package quantity: 15 pcs; Range of product: Modicon X80; Product or component type: Discrete output module; Discrete output logic: Positive; Response time on output: 1.2 ms.

Manufacturer part number (MPN)

BMXDDO6402K

EAN / GTIN

3595863910490

Sales unit

pcs

Package quantity

15 pcs

Range of product

Modicon X80

Product or component type

Discrete output module

Discrete output logic

Positive

Response time on output

1.2 ms

Insulation resistance

> 10 MOhm 500 V DC

Current per channel

0.125 A

Maximum current per module

6.4 A

Paralleling of outputs

Yes : 3 maximum

Switching frequency

0.5/LI² Hz

Maximum overload time

15 ms

Load impedance ohmic

>= 220 Ohm

Reverse polarity protection

Reverse mounted diode

MTBF reliability

150000 H

Protection type

External fuse reverse polarity protection; short-circuit protection; overload protection; overvoltage protection

Voltage detection threshold

18 V DC preactuator at state 0

Product weight

0.15 kg

IP degree of protection

IP20

Protective treatment

Standard version

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, output/ground; 1500 V AC at 50/60 Hz 1 minute, output/internal logic; 500 V DC 1 minute, between group of channels

Relative humidity

5…95 % at 55 °C without condensation

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.800 cm

Package 1 Width

11.300 cm

Package 1 Length

11.300 cm

Package 1 Weight

180.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.030 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

6.85 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital outputs

64

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

0.65 mA

Permitted voltage at input

19–30 V

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Output current

0.1 A

Permitted voltage at output

19–30 V

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

1.2 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

33 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90
