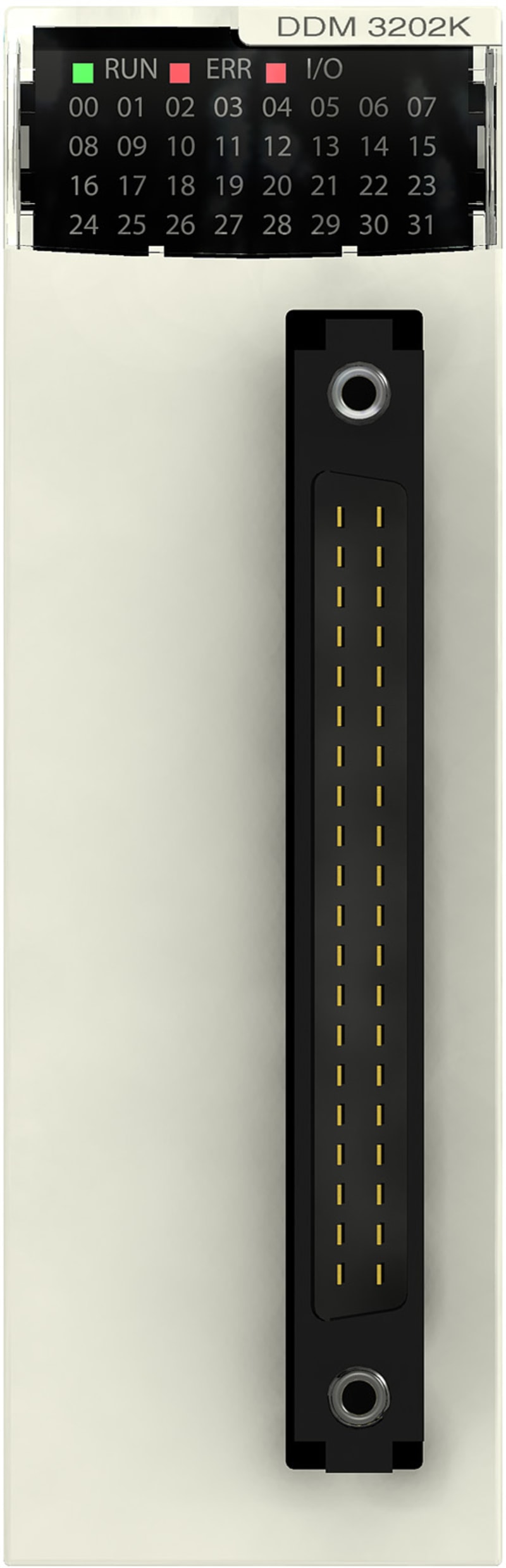

Schneider Electric discrete I/O module X80 - 16 inputs - 24 V DC - 16 outputs - solid state BMXDDM3202K

Schneider Electric BMXDDM3202K M340 16 in digital 24VDC,16ut transistor, FCN.

Manufacturer part number (MPN)

BMXDDM3202K

EAN / GTIN

3595863910636

Sales unit

pcs

Package quantity

15 pcs

Voltage

24 V DC

Range of product

Modicon X80

Product or component type

Discrete I/O module

Discrete input number

16

Input impedance

9600 Ohm

Response time on output

1.2 ms

Maximum voltage drop

<1.5 V at state 1

Insulation resistance

> 10 MOhm 500 V DC

DC typical response time

4 ms

DC maximum response time

7 ms

Current per channel

0.125 A

Maximum current per module

3.2 A

Paralleling of outputs

Yes : 3 maximum

Switching frequency

0.5/LI² Hz

Maximum overload time

15 ms

Load impedance ohmic

<= 220 Ohm

Reverse polarity protection

Reverse mounted diode

Current consumption

<= 104 mA at 24 V DC; <= 166 mA at 3.3 V DC

MTBF reliability

430000 H

Protection type

1 external fuse per group of input channel0.5 A fast blow; overvoltage protection on output; reverse polarity protection on input; reverse polarity protection on output

Voltage detection threshold

18 V DC preactuator OK; > 18 V DC sensor OK

Product weight

0.11 kg

IP degree of protection

IP20

Protective treatment

Standard version

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, output/ground; 1500 V AC at 50/60 Hz 1 minute, output/internal logic; 1500 V AC at 50/60 Hz 1 minute, primary/secondary; 500 V DC 1 minute, between group of inputs and outputs

Relative humidity

5…95 % at 55 °C without condensation

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

FR

Warranty (in months)

18

Power consumption

4 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital inputs

16

Number of digital outputs

16

Digital inputs configurable

Yes

Digital outputs configurable

Yes

Input current at signal 1

2.5 mA

Permitted voltage at input

19–30 V

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Output current

0.1 A

Permitted voltage at output

19–30 V

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

4–7 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

33 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90

• EAN 3595863910636
• SAP 1000041019
• Code 8754046
