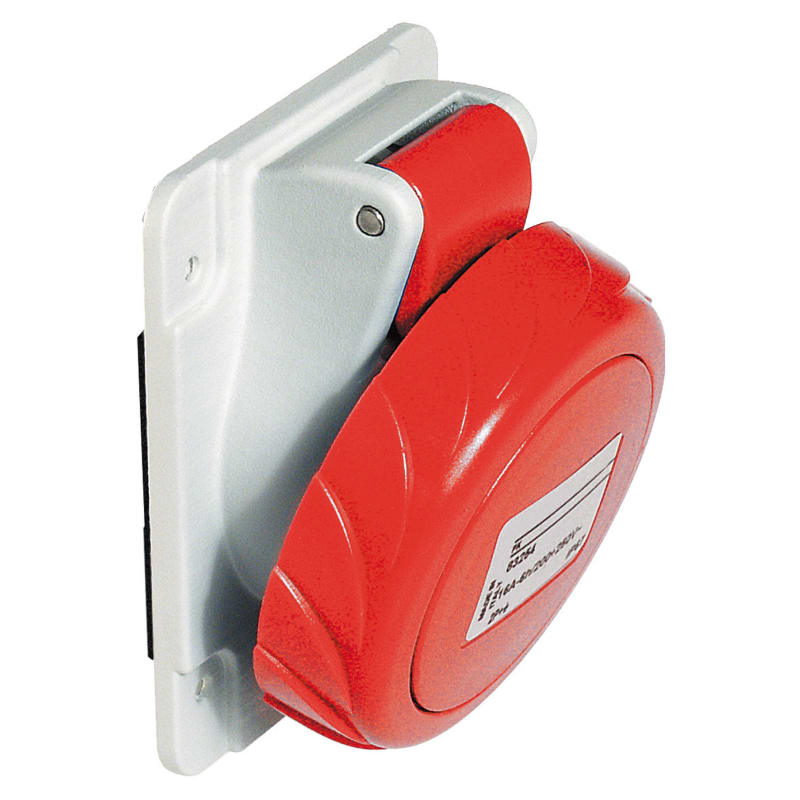

PratiKa Panel Socket Outlet, Angled, 125 A 3P+E
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 81294 PratiKa large wall-mounted socket outlet - 125 A - 3P + E - 380-415 V AC - IP67.
Technical Specifications
- Manufacturer part number (MPN)
- 81294
- EAN / GTIN
- 3303430812944
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Rated current
- 125 A
- RAL-number
- 7035
- Cable entry
- None
- Number of poles
- 4
- Rated frequency
- 50–60 Hz
- Material
- Plastic
- IEC-amperage
- 125 A
- Connection system
- Screwed terminal
- Insert direction
- Angled
- Rated voltage
- 380–415 V
- Degree of protection (IP)
- IP67
- Military model
- No
- Clock hour position
- 6 h
- Identification colour
- Red
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Drill hole distance vertical
- 90 mm
- Drill hole distance horizontal
- 90 mm
- Flange size vertical
- 114 mm
- Flange size horizontal
- 110 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3303430812944
- SAP 1200221702
- Code 82168786
