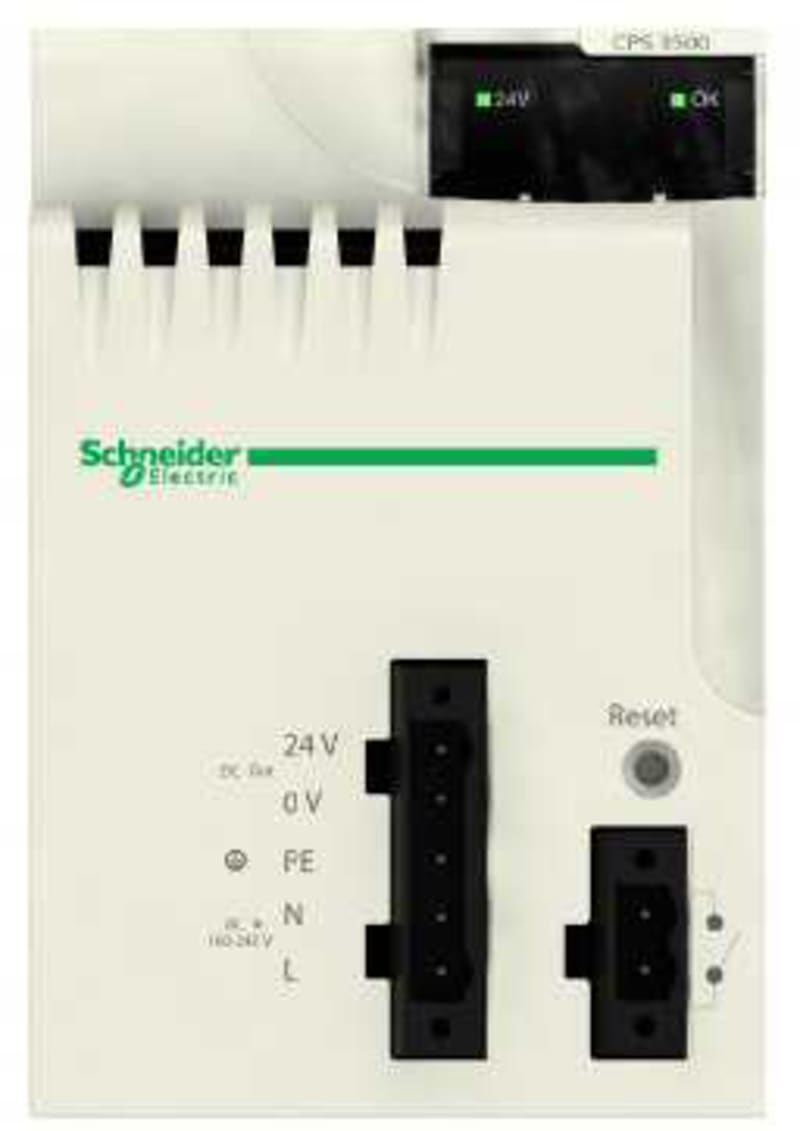

Schneider Electric power supply module X80 - 100..240 V AC - 36 W BMXCPS3500

Schneider Electric BMXCPS3500 M340 power supply 100/240VAC, 35W.

Manufacturer part number (MPN)

BMXCPS3500

EAN / GTIN

3595863908978

Sales unit

pcs

Package quantity

12 pcs

Power

35 W

Range of product

Modicon X80

Product or component type

Power supply module

backplane compatibility

Not compatible with BMEXBP..02

Primary voltage

100...240 V

Supply circuit type

AC

Secondary power

15 W 3.3 V DC I/O module logic power supply; 31.2 W 24 V DC I/O module power supply and processor; 21.6 W 24 V DC sensor power supply

Primary voltage limit

85...264 V

Network frequency

50/60 Hz

Network frequency limits

47…63 Hz

Apparent power

0.12 kVA

Input current

0.52 A 240 V; 1.04 A 115 V

Inrush current

30 A 120 V; 60 A 240 V

I²t on activation

1 A².s 120 V; 3 A².s 240 V

It on activation

0.05 A.s 120 V; 0.07 A.s 240 V

MTBF reliability

4300000 H

Protection type

Internal fuse not accessible for primary circuit; Overload protection for secondary circuit; Overvoltage protection for secondary circuit; Short-circuit protection for secondary circuit

Current at secondary voltage

0.9 A 24 V DC sensor power supply; 1.3 A 24 V DC I/O module power supply and processor; 4.5 A 3.3 V DC I/O module logic power supply

Maximum power dissipation in W

8.5 W

Status LED

1 LED (green) rack voltage OK; 1 LED (green) sensor voltage

Control type

RESET push-button cold restart

Electrical connection

1 connector 2 pin(s)alarm relay; 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor

Insulation resistance

>= 100 MOhm primary/ground; >= 100 MOhm primary/secondary

Product weight

0.36 kg

Immunity to microbreaks

1 ms

Dielectric strength

1500 V primary/secondary I/O module logic power supply; 1500 V primary/secondary I/O module power supply and processor; 2300 V primary/secondary sensor power supply; 1500 V primary/ground; 500 V 24 V sensor output/ground

Vibration resistance

3 gn

Shock resistance

30 gn

IP degree of protection

IP20

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % at 55 °C without condensation

Protective treatment

TC

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

48

Country of origin

ID

Warranty (in months)

18

Width

68 mm

Height

104 mm

Depth

99 mm

Suitable for safety functions

No

Type of voltage (input voltage)

AC/DC

Power output

36 W

Redundancy

No

Output voltage DC

3.3–24 V

Input voltage AC 50 Hz

115–230 V

Input voltage AC 60 Hz

115–230 V

Max. output current DC

4.5 A

Max. input current AC 50 Hz

1.04 A

Max. input current AC 60 Hz

1.04 A

Type of output voltage

AC/DC

HS Code

8504.40
