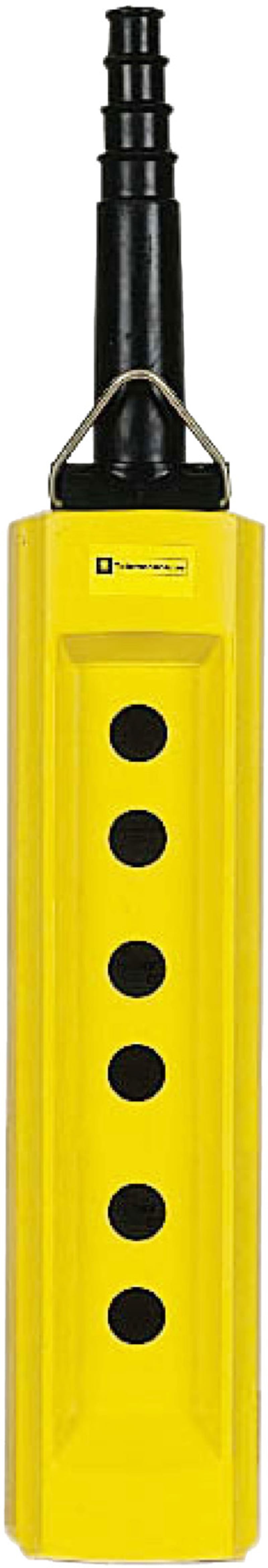

Schneider Electric empty pendant control station XAC-B - 6 openings + 1 in base XACB061
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XACB061 Suspended enclosure Empty 6 Hole+Bunnmon.
Technical Specifications
- Manufacturer part number (MPN)
- XACB061
- EAN / GTIN
- 3389110640625
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XAC
- Product or component type
- Pendant control station
- Device short name
- XACB
- Control station type
- Double insulated
- Enclosure material
- Glass reinforced polyester
- Electrical circuit type
- Control circuit; Power circuit
- enclosure type
- Empty enclosure
- Number of cut-out
- 6 cut-outs
- Control station colour
- Yellow
- Cable entry
- Rubber sleeve with stepped entry 10…22 mm
- Guard rail
- Without
- Vertical operator cut-out centre
- 40 mm
- Standards
- CSA C22.2 No 14; IEC 60947-5-1
- Product certifications
- CSA type 4
- Protective treatment
- TH
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Mechanical durability
- 1000000 cycles
- Product weight
- 1.16 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Country of origin
- CZ
- Warranty (in months)
- 18
- Suitable for control current circuit
- Yes
- Suitable for main current circuit
- Yes
- Number of command positions
- 6
- Colour housing cover
- Yellow
- Housing material
- Plastic
- Degree of protection (IP)
- IP65
- Inner diameter opening
- 22 mm
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110640625
- SAP 1000036596
- Code 8516031
