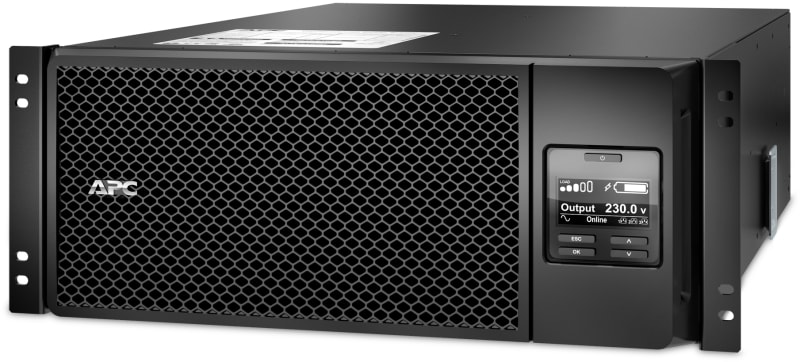

APC SRT 6KVA RM Marine
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT6KRMXLIM SRT online UPS, 6 kVA/6 kW, rack-mount 4U, 230 V, 6x C13 + 4x C19 IEC outputs, Marine, expandable, NMC + SmartSlot, with rail kit.
Technical Specifications
- Manufacturer part number (MPN)
- SRT6KRMXLIM
- EAN / GTIN
- 0731304320838
- Sales unit
- pcs
- Presentation
- High availability, ruggedized power protection for shipboard and other transportation applications.
- Main input voltage
- 230 V
- Other input voltage
- 220 V; 240 V
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 6000 W
- Rated power in VA
- 6000 VA
- Output connection
- 6 IEC 60320; 2 IEC Jumpers; 4 IEC 60320
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 3 %
- Maximum configurable power in VA
- 6000 VA
- Maximum configurable power in W
- 6000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC140
- Run Time
- View Runtime Graph
- Emergency power off
- Yes
- Free slot
- 0
- Preinstalled device
- Dry contact I/O smartslot card
- Alarm
- Audible and visible alarms : prioritized by severity
- Surge energy rating
- 480 J
- Number of rack unit
- 4U
- Color
- Black
- Height
- 174 mm
- Width
- 432 mm
- Depth
- 719.4 mm
- Product weight
- 60 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- CD with software; Installation guide; Rack mounting hardware; Rack mounting brackets; Rack mounting support rails; Temperature probe; USB cable; Warranty card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM; VDE
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 1300 Btu/h
- Operating altitude
- 0...10000 ft
- Battery type
- Lead-acid battery
- Extendable runtime
- 1
- Included battery module
- 0
- Typical recharge time
- 1 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 893 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 37 cm
- Package 1 Width
- 96 cm
- Package 1 Length
- 61 cm
- Package 1 Weight
- 67 kg
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304320838
- SAP 1200082575
- Code 81934904
Product Documentation
More from Schneider Electric
Schneider Electric
ATV630 IP00 55kW 690V DNV
ATV630D55Y6428
Schneider Electric

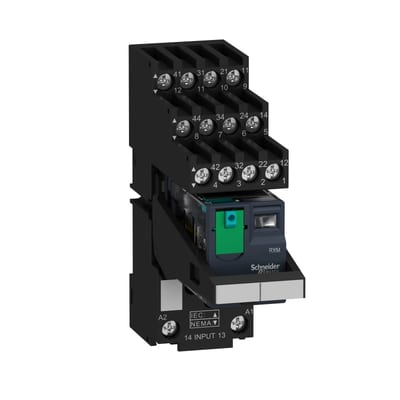

Schneider Electric Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with lockable test button, separate terminals socket, 24 V DC RXM4AB1BDPVS
Schneider Electric

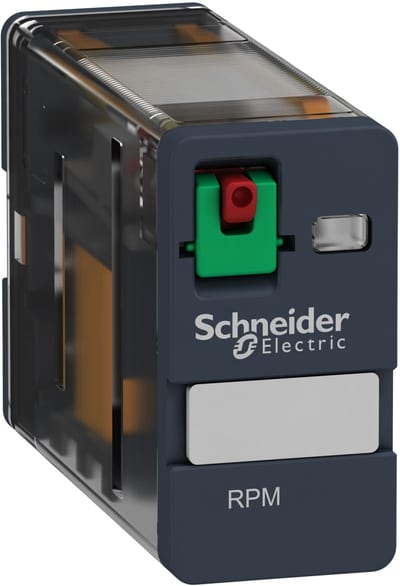

Schneider Electric Power plug-in relay, 15 A, 1 CO, 120 V AC RPM11F7
Schneider Electric

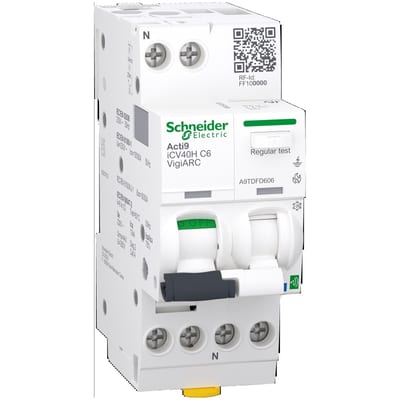

Schneider Electric Active arc fault detection RCBO, ACTI9 ICV40H ARC, 1P + N, 6 A, C curve, 30 mA, type A-SI, 10000 A A9TDFD606
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250R, 200KA/415VAC, 3 poles, MicroLogic 5.2E trip unit 160A C25R35E160
Schneider Electric

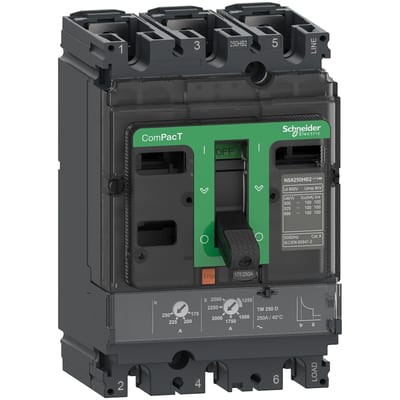

Schneider Electric Circuit breaker, ComPacT NSX160N, 50KA/415VAC, 3 poles, TMD trip unit 100A C16N3TM100
Schneider Electric

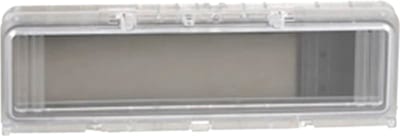

Schneider Electric Plastic window with hinged transparent cover. L78XW235XD15MM. NSYVA2712M
Schneider Electric

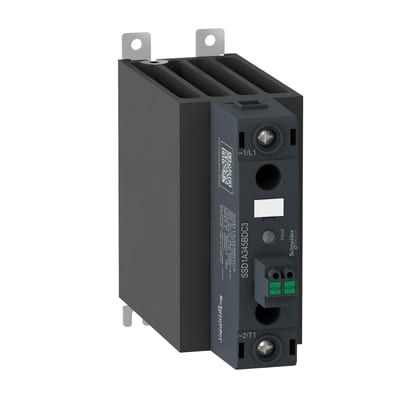

Schneider Electric Harmony, Solid state relay, 45 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A345BDC3
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SRT6KRMXLIM?
- SRT6KRMXLIM can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is SRT6KRMXLIM.
- What is the HS code for SRT6KRMXLIM?
- The customs tariff (HS) code for SRT6KRMXLIM is 8504.40.
- Who manufactures SRT6KRMXLIM?
- SRT6KRMXLIM is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for SRT6KRMXLIM?
- Yes — the SRT6KRMXLIM datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SRT6KRMXLIM?
- The minimum order quantity is 1.
- Is SRT6KRMXLIM available?
- Yes — SRT6KRMXLIM is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
