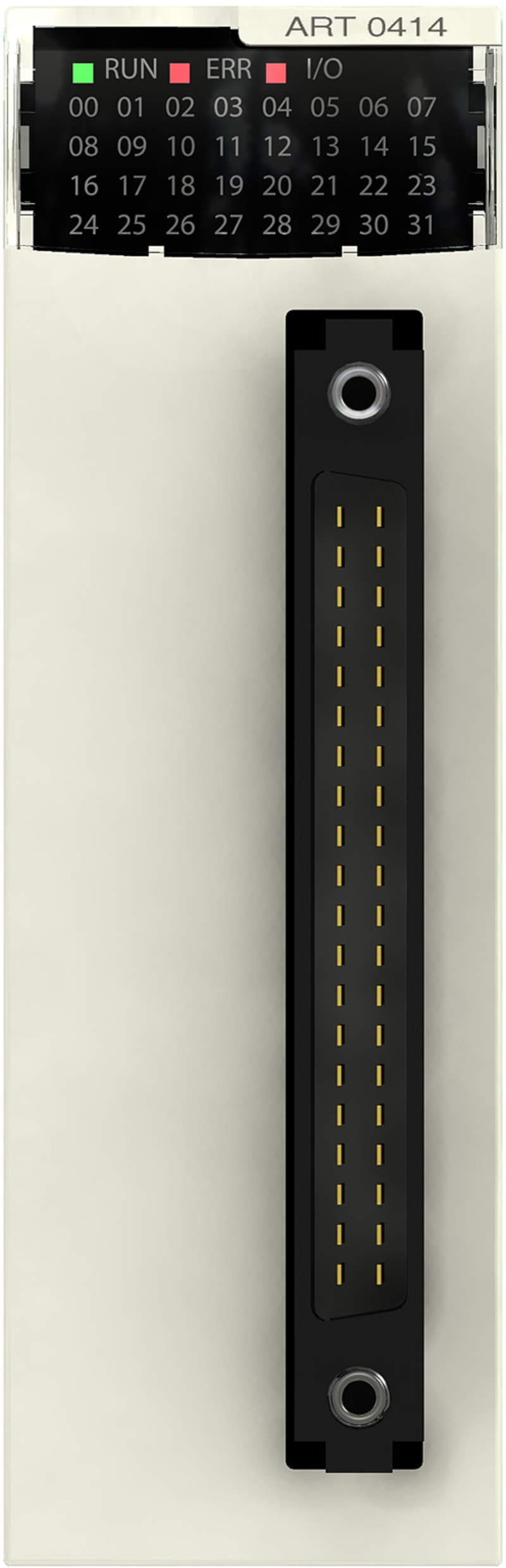

Schneider Electric analog input module X80 - 4 inputs - temperature BMXART0414

Schneider Electric BMXART0414 M340 4 in analog TC/RTD, insulated, FTB.

Manufacturer part number (MPN)

BMXART0414

EAN / GTIN

3595863910186

Sales unit

pcs

Package quantity

15 pcs

Range of product

Modicon X80

Product or component type

Analog input module

Electrical connection

40 ways 1 connector

Isolation between channels

Isolated

Input level

Low level

Analogue input number

4

Analogue input type

Voltage +/- 1.28 V; Voltage +/- 160 mV; Voltage +/- 320 mV; Voltage +/- 40 mV; Voltage +/- 640 mV; Voltage +/- 80 mV; Resistor 400 Ohm 2 wires; Resistor 400 Ohm 3 wires; Resistor 400 Ohm 4 wires; Resistor 4000 Ohm 2 wires; Resistor 4000 Ohm 3 wires; Resistor 4000 Ohm 4 wires; Temperature probe -100...+260 °C Cu 10; Temperature probe -100...+450 °C Pt 100 conforming to UL/JIS; Temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS; Temperature probe -200...+850 °C Pt 100 conforming to IEC; Temperature probe -200...+850 °C Pt 1000 conforming to IEC; Temperature probe -60...+180 °C Ni 100; Temperature probe -60...+180 °C Ni 1000; Thermocouple +130...+1820 °C thermocouple B; Thermocouple +270...+1300 °C thermocouple N; Thermocouple -200...+600 °C thermocouple U; Thermocouple -200...+760 °C thermocouple J; Thermocouple -200...+900 °C thermocouple L; Thermocouple -270...+1000 °C thermocouple E; Thermocouple -270...+1370 °C thermocouple K; Thermocouple -270...+400 °C thermocouple T; Thermocouple -50...+1769 °C thermocouple R; Thermocouple -50...+1769 °C thermocouple S

Analog/digital conversion

Sigma delta 16 bits

Analogue input resolution

15 bits + sign

Permitted overload on inputs

+/- 7.5 V +/- 1.28 V; +/- 7.5 V +/- 160 mV; +/- 7.5 V +/- 320 mV; +/- 7.5 V +/- 40 mV; +/- 7.5 V +/- 640 mV; +/- 7.5 V +/- 80 mV

Common mode rejection

120 dB 50/60 Hz

Differential mode rejection

60 dB 50/60 Hz

Cold junction compensation

External by Pt100 probe

Type of filter

First order digital filtering

Nominal read cycle time

400 ms with temperature probe; 200 ms with thermocouple

Measurement error

+/- 0.7 °C Ni 1000 25 °C; +/- 1.3 °C Ni 1000 0...60 °C; +/- 2 °C Pt 100 0...60 °C; +/- 2 °C Pt 1000 0...60 °C; +/- 2.1 °C Ni 100 25 °C; +/- 2.1 °C Pt 100 25 °C; +/- 2.1 °C Pt 1000 25 °C; +/- 2.7 °C thermocouple U 25 °C; +/- 2.8 °C thermocouple J 25 °C; +/- 3 °C Ni 100 0...60 °C; +/- 3 °C thermocouple L 25 °C; +/- 3.2 °C thermocouple R 25 °C; +/- 3.2 °C thermocouple S 25 °C; +/- 3.5 °C thermocouple B 25 °C; +/- 3.7 °C thermocouple E 25 °C; +/- 3.7 °C thermocouple K 25 °C; +/- 3.7 °C thermocouple N 25 °C; +/- 3.7 °C thermocouple T 25 °C; +/- 4 °C Cu 10 0...60 °C; +/- 4 °C Cu 10 25 °C; +/- 4.5 °C thermocouple J 0...60 °C; +/- 4.5 °C thermocouple L 0...60 °C; +/- 4.5 °C thermocouple R 0...60 °C; +/- 4.5 °C thermocouple S 0...60 °C; +/- 4.5 °C thermocouple U 0...60 °C; +/- 5 °C thermocouple B 0...60 °C; +/- 5 °C thermocouple E 0...60 °C; +/- 5 °C thermocouple K 0...60 °C; +/- 5 °C thermocouple N 0...60 °C; +/- 5 °C thermocouple T 0...60 °C; <= 0.15 % of full scale +/- 1.28 V 0...60 °C; <= 0.15 % of full scale +/- 160 mV 0...60 °C; <= 0.15 % of full scale +/- 320 mV 0...60 °C; <= 0.15 % of full scale +/- 40 mV 0...60 °C; <= 0.15 % of full scale +/- 640 mV 0...60 °C; <= 0.15 % of full scale +/- 80 mV 0...60 °C; <= 0.2 % of full scale 400 Ohm 0...60 °C; <= 0.2 % of full scale 4000 Ohm 0...60 °C; 0.05 % of full scale +/- 1.28 V 25 °C; 0.05 % of full scale +/- 160 mV 25 °C; 0.05 % of full scale +/- 320 mV 25 °C; 0.05 % of full scale +/- 40 mV 25 °C; 0.05 % of full scale +/- 640 mV 25 °C; 0.05 % of full scale +/- 80 mV 25 °C; 0.12 % of full scale 400 Ohm 25 °C; 0.12 % of full scale 4000 Ohm 25 °C

Temperature drift

25 ppm/°C 400 Ohm; 25 ppm/°C 4000 Ohm; 25 ppm/°C Ni 1000; 25 ppm/°C thermocouple B; 25 ppm/°C thermocouple E; 25 ppm/°C thermocouple J; 25 ppm/°C thermocouple K; 25 ppm/°C thermocouple L; 25 ppm/°C thermocouple N; 25 ppm/°C thermocouple R; 25 ppm/°C thermocouple S; 25 ppm/°C thermocouple T; 25 ppm/°C thermocouple U; 30 ppm/°C +/- 1.28 V; 30 ppm/°C +/- 160 mV; 30 ppm/°C +/- 320 mV; 30 ppm/°C +/- 40 mV; 30 ppm/°C +/- 640 mV; 30 ppm/°C +/- 80 mV; 30 ppm/°C Cu 10; 30 ppm/°C Ni 100; 30 ppm/°C Pt 100; 30 ppm/°C Pt 1000

Recalibration

Internal

Isolation voltage

1400 V DC between channels and bus; 750 V DC between channels; 750 V DC between channels and ground

Detection type

Open circuit Cu 10; Open circuit Ni 100; Open circuit Ni 1000; Open circuit Pt 100; Open circuit Pt 1000; Open circuit thermocouple B; Open circuit thermocouple E; Open circuit thermocouple J; Open circuit thermocouple K; Open circuit thermocouple L; Open circuit thermocouple N; Open circuit thermocouple R; Open circuit thermocouple S; Open circuit thermocouple T; Open circuit thermocouple U

Maximum wiring resistance

20 Ohm 2 wires Cu 10; 20 Ohm 2 wires Ni 100; 20 Ohm 2 wires Pt 100; 20 Ohm 3 wires Cu 10; 20 Ohm 3 wires Ni 100; 20 Ohm 3 wires Pt 100; 200 Ohm 2 wires Ni 1000; 200 Ohm 2 wires Pt 1000; 200 Ohm 3 wires Ni 1000; 200 Ohm 3 wires Pt 1000; 50 Ohm 4 wires Cu 10; 50 Ohm 4 wires Ni 100; 50 Ohm 4 wires Pt 100; 500 Ohm 4 wires Ni 1000; 500 Ohm 4 wires Pt 1000

Measurement resolution

0.1 °C Cu 10; 0.1 °C Ni 100; 0.1 °C Ni 1000; 0.1 °C Pt 100; 0.1 °C Pt 1000; 0.1 °C thermocouple B; 0.1 °C thermocouple E; 0.1 °C thermocouple J; 0.1 °C thermocouple K; 0.1 °C thermocouple L; 0.1 °C thermocouple N; 0.1 °C thermocouple R; 0.1 °C thermocouple S; 0.1 °C thermocouple T; 0.1 °C thermocouple U; 1280/2exp14 mV +/- 1.28 V; 160/2exp14 mV +/- 160 mV; 320/2exp14 mV +/- 320 mV; 40/2exp14 mV +/- 40 mV; 12.5 mOhm 400 Ohm; 125 mOhm 4000 Ohm; 640/2exp14 mV +/- 640 mV; 80/2exp14 mV +/- 80 mV

Maximum conversion value

+/- 100 % 400 Ohm; +/- 100 % 4000 Ohm; +/- 102.5 % +/- 1.28 V; +/- 102.5 % +/- 160 mV; +/- 102.5 % +/- 320 mV; +/- 102.5 % +/- 40 mV; +/- 102.5 % +/- 640 mV; +/- 102.5 % +/- 80 mV

MTBF reliability

1400000 H

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Status LED

1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O

Product weight

0.135 kg

Current consumption

150 mA at 3.3 V DC; 40 mA at 24 V DC

Vibration resistance

3 gn

Shock resistance

30 gn

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % at 55 °C without condensation

IP degree of protection

IP20

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Product certifications

EAC; RCM; UL; Merchant Navy; CSA; CE

Standards

IEC 61131-2; IEC 61000-6-4; IEC 61000-6-2; EN 61010-2-201

Protective treatment

Standard version

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

FR

Warranty (in months)

18

Power consumption

3.9 W

Number of analogue inputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Input, current

No

Input, voltage

Yes

Input, resistor

Yes

Input, resistance thermometer

Yes

Input, thermocouple

Yes

Input signal, configurable

Yes

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Type of electric connection

Plug-in connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

Yes

Width

32 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90
