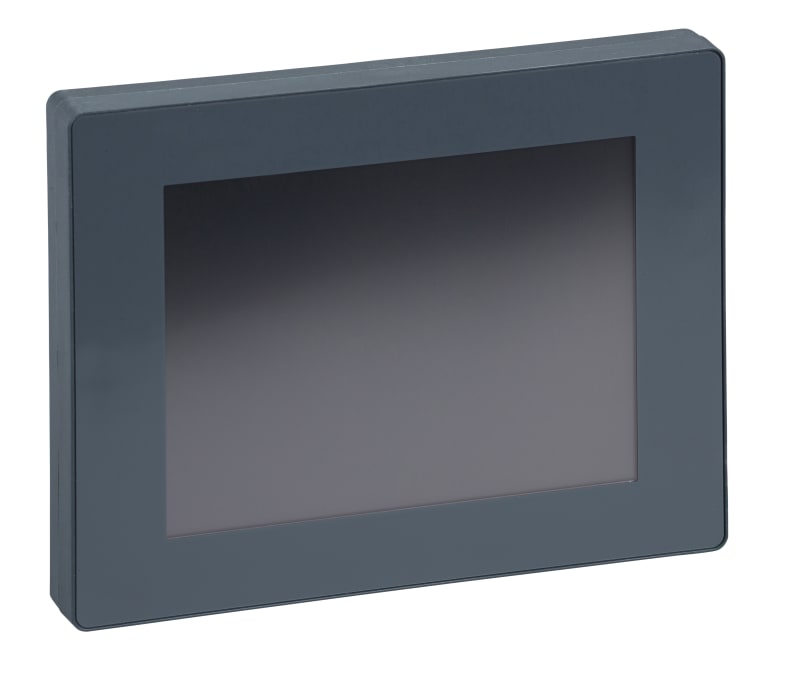

Schneider Electric HMIS85W Harmony SCU 5.7 in Touchscreen Front Module Unbranded

Schneider Electric HMIS85W is a small Harmony SCU HMI front module with a 5.7 in colour TFT LCD, 320 x 240 QVGA resolution and analogue touch panel, supplied without the Schneider logo for OEM re-branding. LED backlight is rated 50000 hours; character sets cover ASCII, Japanese, traditional and simplified Chinese, and Korean. The 163 x 129.4 mm unit suits panel-mount operator interfaces on machines and process skids where the machine builder applies their own branding.

Manufacturer part number (MPN)

HMIS85W

EAN / GTIN

3595864153292

Sales unit

pcs

Package quantity

8 pcs

Range of product

Harmony SCU

Product or component type

Small touchscreen display HMI

Display size

5.7 inch

Pixel resolution

320 x 240 pixels QVGA

Display type

with backlit LED colour TFT LCD

Touch panel

Analogue

Backlight lifespan

50000 hours with 65536 colours

Brightness

16 levels via touch panel

View angle horiz x vert

60° left; 60° right; 40° top; 60° bottom

Character font

Taiwanese (traditional Chinese); Japanese (ANK, Kanji); Korean; ASCII; Chinese (simplified Chinese)

Width

163 mm

Depth

129.4 mm

Product weight

0.405 kg

Product certifications

UKCA; UKEX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.000 cm

Package 1 Width

19.000 cm

Package 1 Length

27.000 cm

Package 1 Weight

689.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

8

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.028 kg

Country of origin

CN

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

Number of HW-interfaces other

1

With SW interfaces

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

Yes

Type of display

TFT

Colour display

Yes

Number of colours of the display

65000

Number of grey-scales/blue-scales of display

16

Screen diagonal

5.7 inch

Number of pixels, horizontal

320

Number of pixels, vertical

240

Usable project memory/user memory

128000 kByte

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

Yes

With message indication

Yes

With message system (incl. buffer and confirmation)

Yes

Process value representation (output) possible

Yes

Process default value (input) possible

Yes

With recipes

Yes

With printer output

No

Number of online languages

8

Additional software components, loadable

Yes

Degree of protection (IP), front side

IP65/IP67

Operating temperature

0–50 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

Yes

Suitable for safety functions

No

Width of the front

163 mm

Height of the front

129.4 mm

Built-in depth

76.22 mm

HS Code

8537.10
