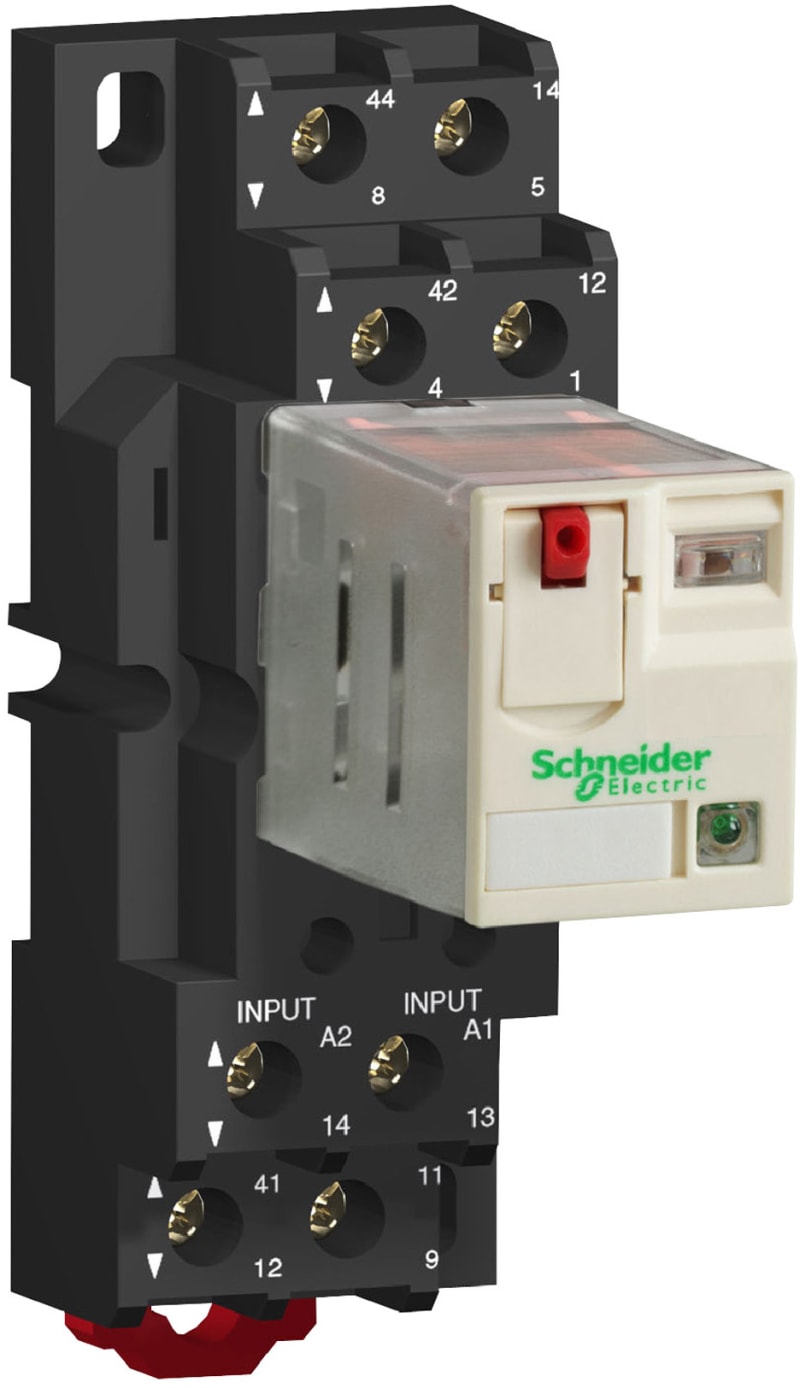

Schneider Electric Socket, mixed contact, 16 A, relay type RPM2, screw clamp terminals, 250 V AC RPZF2

Schneider Electric RPZF2 Plinth effektrelé 2CO 16 A - < 250 V - skurekotakt - kompatibelt for relay RPM2.

Manufacturer part number (MPN)

RPZF2

EAN / GTIN

3389119402293

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RPZ

Product or component type

Socket

Product compatibility

Plug-in relay RPM with 2 C/O contact

Contacts type and composition

2 C/O

[Ith] conventional free air thermal current

16 A

[Ue] rated operational voltage

< 250 V

Shape of pin

Flat

Contact terminal arrangement

Mixed

Tightening torque

< 1 N.m for M3.5 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

30 mm

Product weight

0.054 kg

Connections - terminals

- screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG; - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG; - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG; - screw clamps terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

UL; CSA

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

200

Country of origin

TW

Warranty (in months)

18

HS Code

8536.90

• EAN 3389119402293
• SAP 1000046191
• Code 8833498
