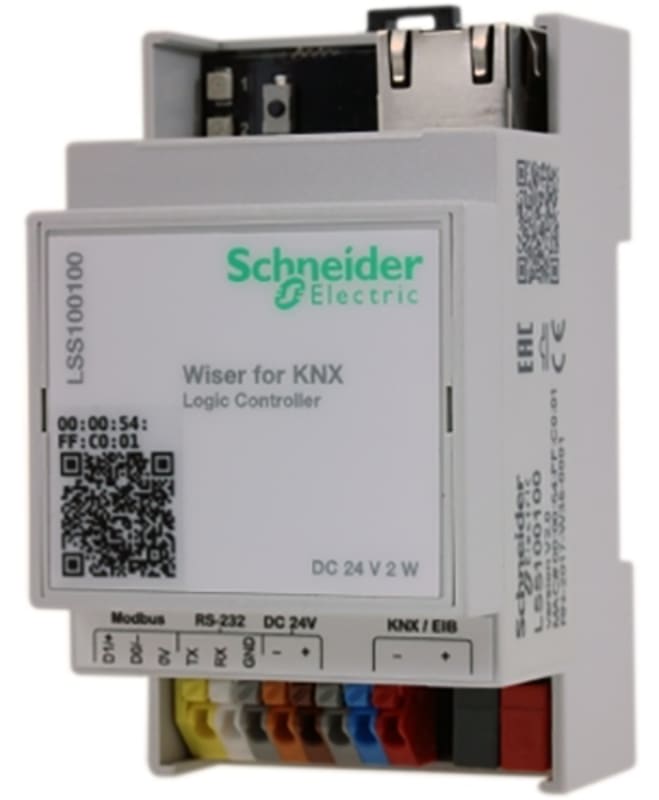

KNX HomeLYnk Multi gateway

Schneider Electric LSS100100 — Wiser for KNX logic controller.

Manufacturer part number (MPN)

LSS100100

EAN / GTIN

3606480595998

Sales unit

pcs

Package quantity

40 pcs

Range

SpaceLogic KNX

Product name

Wiser for KNX

Product or component type

Logic controller

Communication port protocol

BACnet; KNX; IP (Internet Protocol); Modbus

[Us] rated supply voltage

24 V DC

Power consumption in W

2 W

LED indicator

LED (green) for CPU load; LED (green/red) for KNX powered/reset

Physical interface

1 x RJ45; 1 x RS485; 1 x RS232; 1 x TP-UART2

Port Ethernet

10BASE-T/100BASE-TX

Maximum number of users

8

Number of Modbus server

10

Number of BACnet tags

150

Integrated connection type

1 USB 2.0 port

Control type

RESET push-button

Mounting support

DIN rail

Connections - terminals

KNX bus: bus terminal 2 cable(s) 0.8 mm²; Power supply: clamp terminal1.5 mm²; Serial: clamp terminal1.5 mm²

Height

90 mm

Width

52 mm

Depth

58 mm

Ambient air temperature for operation

-5…45 °C

Relative humidity

0…93 %

Operating altitude

0...2000 m

IP degree of protection

IP20

Standards

IEC 60950-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.800 cm

Package 1 Width

6.000 cm

Package 1 Length

9.400 cm

Package 1 Weight

127.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

7.500 cm

Package 2 Width

19.700 cm

Package 2 Length

35.000 cm

Package 2 Weight

1.383 kg

Unit Type of Package 3

S03

Number of Units in Package 3

40

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.992 kg

Country of origin

LV

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Ethernet interface

Operating voltage

24 V

Voltage type

DC

Width in number of modular spacings

3

Protocol

TCP/IP

Degree of protection (IP)

IP20

HS Code

8537.10

• EAN 3606480595998
• SAP 1000622755
• Code 8111573
