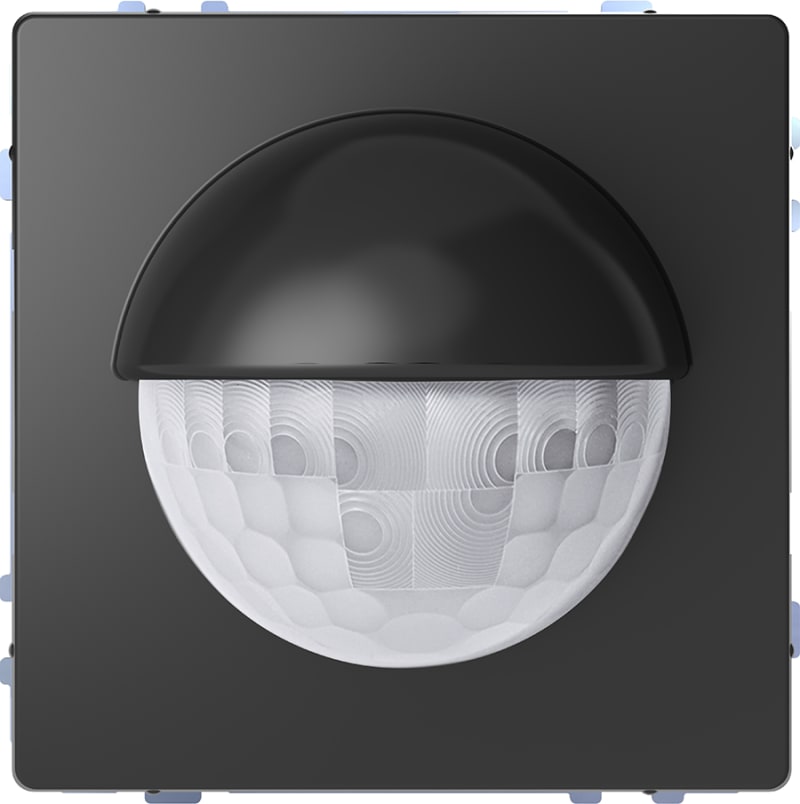

Schneider Electric MTN6302-6034 KNX Argus Presence Detector, 180°/2.2 m, Anthracite

Schneider Electric MTN6302-6034 is a SpaceLogic KNX Argus presence detector for flush mounting at 2.2 m, with a 180 degree horizontal detection angle and 8 m lateral reach. It offers five channels, creep-zone protection and adjustable light sensitivity, drawing 10 mA from the KNX bus. The polycarbonate housing is finished in anthracite from the D-Life design line and rated IP20.

Manufacturer part number (MPN)

MTN6302-6034

EAN / GTIN

3606480919510

Sales unit

pcs

Package quantity

30 pcs

Range

SpaceLogic KNX

Product or component type

Presence detector

Bus type

KNX

Colour tint

Anthracite

Power supply input current

10 mA

Device presentation

Mechanism with fixing frame and cover plate

Number of channels

5

Protection type

Creep zone protection

Type of setting

Light sensitivity adjustable

Duty cycle

15300 minutes

Time delay range

0...1 s (switch-on)

Detection face

Lateral: 8 m

Detection angle

180° horizontal

Material

Polycarbonate

surface treatment

Varnished

Device mounting

Flush

Mounting height

2.2 m

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

30

Warranty (in months)

18

Other bus systems

None

Model

Presence detector

Mounting method

Flush-mounted

Material quality

Thermoplastic

Surface protection

Lacquered

Surface finishing

Matt

Colour

Anthracite

Optimum mounting height

2.2 m

Max. reach sideways

8 m

Max. reach frontally

12 m

Diameter reach on floor

16 m

Min. switch-on time

1 s

Max. duty cycle

15300 min

Min. depth of built-in installation box

40 mm

Country of origin

Germany

HS Code

8536.50
