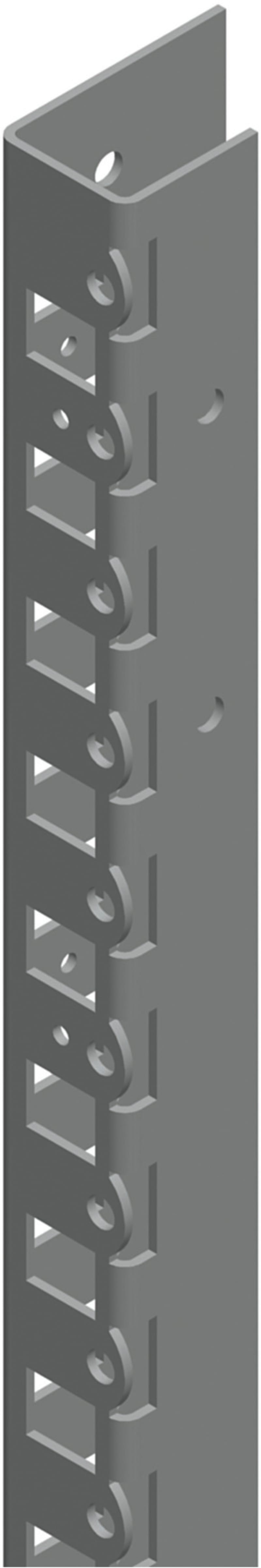

Schneider Electric PanelSeT SM horizontal adaptation profiles - 800 mm NSYSMHR8
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSMHR8 2 horizontal profiles 800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSMHR8
- EAN / GTIN
- 3606480146688
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Adaptation profile
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SM
- Mounting location
- Top and bottom front of enclosure
- Installation direction
- Horizontal
- Device composition
- fixing screws; 2 profile
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - on front fixing point location
- Height
- 24.5 mm
- Width
- Real: 580 mm
- Depth
- 42 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 5.500 cm
- Package 1 Length
- 60.500 cm
- Package 1 Weight
- 1.024 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 70
- Package 2 Height
- 35.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 89.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of height units
- 16
- Surface finishing
- Powder coating
- Length
- 800 mm
- Mounting method
- Screw mounting
- Profile height busbar
- 24.5 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480146688
- SAP 1000317621
- Code 8823000
