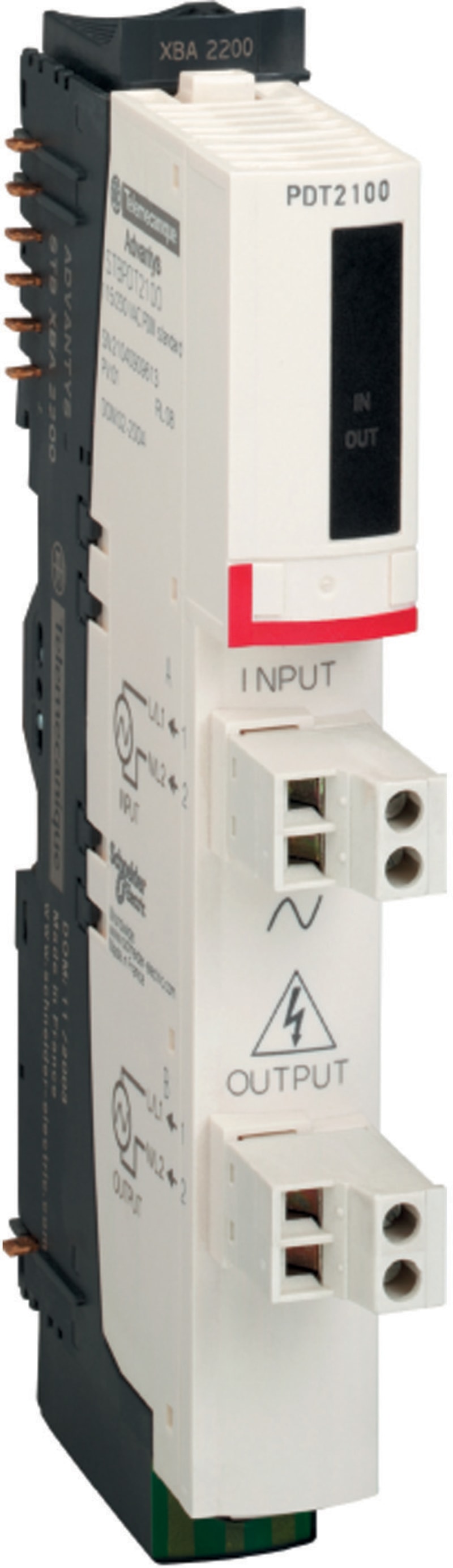

Schneider Electric standard power distribution kit STB - 115..230 V AC STBPDT2100K

Schneider Electric STBPDT2100K STB kit 115/230VAC distribution.

Manufacturer part number (MPN)

STBPDT2100K

EAN / GTIN

3595863949186

Sales unit

pcs

Package quantity

30 pcs

Voltage

115/230 V AC

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard power distribution kit

Kit composition

STBPDT2100 module; STBXBA2200 base; STBXTS2130, spring type connectors; STBXTS1130, screw type connectors

Product compatibility

Mounting base STBXBA2200

[Us] rated supply voltage

115...230 V for AC

Power supply output current

0…10 A for output circuit; 0…2.5 A for input circuit; 0…5 A for input circuit; 0…5 A for output circuit

Supply frequency

50...60 Hz

Voltage range

85...265 V AC sensor/actuator bus

Protection type

Built-in overcurrent protection, 10 A time-lag fuse for output circuit; Built-in overcurrent protection, 5 A time-lag fuse for input circuit

Permissible current

30 A for 2 minutes grounding terminal

Voltage detection threshold

70 V +/-5 AC IN/OUT LED lit

Hot swapping fallback

No

Local signalling

1 LED green for actuator bus power supply (OUT); 1 LED green for sensor bus power supply (IN)

Housing colour

White

Height

18.4 mm

Width

125 mm

Depth

65.1 mm

Product weight

0.129 kg

Overvoltage category

II

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; FM Class 1 Division 2; UL

Standards

EN/IEC 61131-2 type 1

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

24

Country of origin

ID

Warranty (in months)

18

Suitable for safety functions

Yes

Type of voltage (input voltage)

AC/DC

Redundancy

No

Output voltage DC

24 V

Input voltage AC 50 Hz

115–230 V

Input voltage AC 60 Hz

115–230 V

Max. output current DC

8 A

Max. input current DC

4 A

Type of output voltage

AC/DC

HS Code

8536.90

• EAN 3595863949186
• SAP 1000253851
• Code 8114272
