BOX 50A 3L+N Empty (KSB50SV4)
Pricing
Request a quote
We reply within 24 hours
Product Description

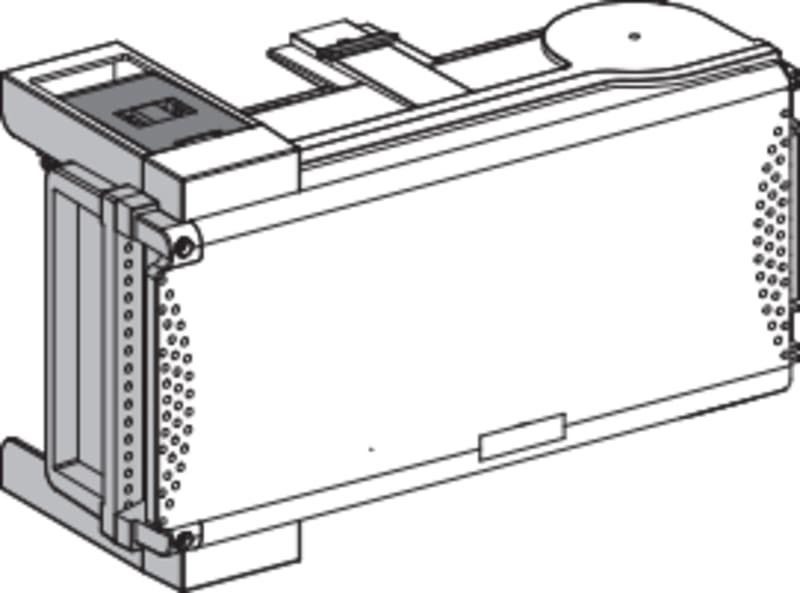

Schneider Electric KSB50SV4 Box 50A 3L+N Empty.
Technical Specifications
- Manufacturer part number (MPN)
- KSB50SV4
- EAN / GTIN
- 3606480006098
- Sales unit
- pcs
- Package quantity
- 38 pcs
- Rated current
- 50 A
- Range of product
- Canalis
- Product name
- KS
- Product or component type
- Empty tap-off unit
- Product compatibility
- KS
- [Ie] rated operational current
- 50 A at 35 °C
- Tap-off unit polarity
- 3L+N+PE
- Device application
- Low power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ui] rated insulation voltage
- 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Tap-off unit disconnection mode
- By drawing out
- Tap-off unit connector type
- With fixed polarity
- Door opening size
- 432.5 mm
- Door opening side
- Right
- Standards
- IEC 60439-2; IEC 61439-6
- Body material
- Plastic
- Colour
- White (RAL 9001)
- Width
- 356 mm
- Depth
- 103 mm
- Height
- 202 mm
- Product weight
- 2.2 kg
- Earthing system
- TT - busbar trunking; TN-S - busbar trunking; TN-C - busbar trunking; IT - busbar trunking; TT - tap-off unit; TN-S - tap-off unit; IT - tap-off unit
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 38
- Country of origin
- IT
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 356 mm
- Degree of protection (IP)
- IP55
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 50 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480006098
- SAP 1200721833
- Code 83845681
Product Documentation
