8 in ANA, POT.FRI, Sikret FORS

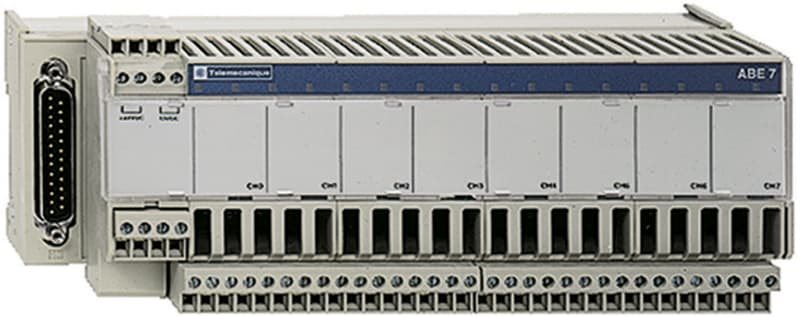

Schneider Electric ABE7CPA31 8 In ana, pot.fri, sikret delayed.

Manufacturer part number (MPN)

ABE7CPA31

EAN / GTIN

3389110836202

Sales unit

pcs

Package quantity

15 pcs

Range of product

Modicon ABE7

Product or component type

Connection sub-base for counter and analogue channels

Number of channels

8

Connections - terminals

Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid

Function of module

Isolated analogue input, compatible with Premium

[Uc] control circuit voltage

24 V DC

Connection to PLC

SUB-D 25

Fixing mode

By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)

[Ui] rated insulation voltage

2000 V terminals/mounting rails

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Product weight

0.41 kg

Standards

CSA C22.2; IEC 61131; UL 508

Product certifications

DNV; GL; CSA; UL

IP degree of protection

IP20 conforming to IEC 60529

Protective treatment

TC

Resistance to incandescent wire

750 °C, extinction time <30 s conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

0…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

LV

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8536.90
