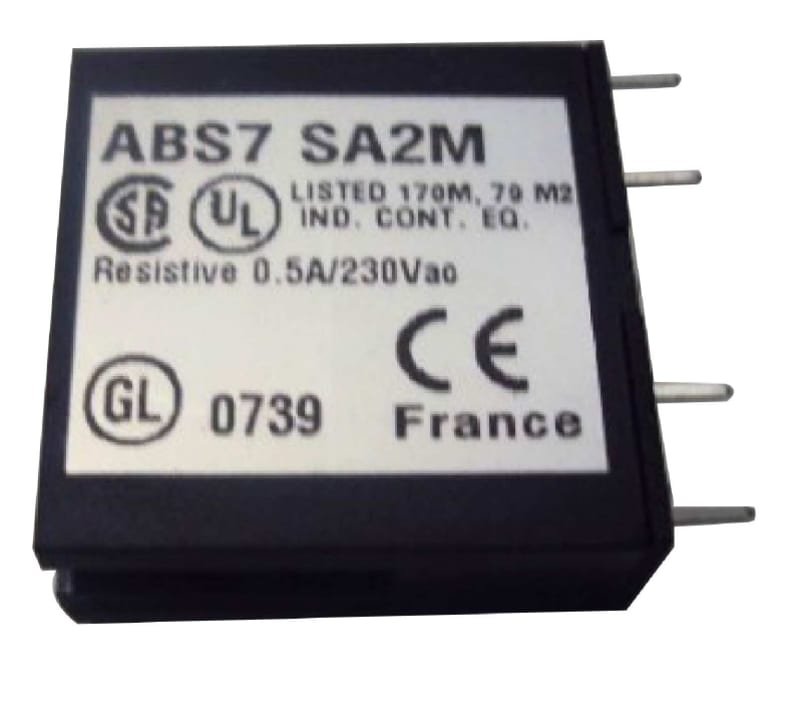

Schneider Electric plug-in solid state relay - 10 mm - output - 24..240 V AC - 0.5 A ABS7SA2M

Schneider Electric ABS7SA2M SS 10mm, out 24VDC/24-240VAC,0.5A.

Manufacturer part number (MPN)

ABS7SA2M EAN / GTIN: 3389110644777 Sales unit: pcs Package quantity: 4 pcs Voltage: 24 V DC Range of product: Advantys Telefast ABE7 Product or component type: Plug-in solid state relay Relay type: Output relay minimum ordered quantity: Set of 4 Response time: <= 10 ms from state 0 to 1; <= 10 ms from state 1 to 0 Width pitch dimension: 10 mm Product compatibility: ABE7P16T210; ABE7P16T212; ABE7P16T215; ABE7P16T214 Discrete input voltage: 24 V DC Discrete output voltage: 24...240 V AC Discrete output current: 500 mA Current state 0 guaranteed: 0.4 mA DC Current state 1 guaranteed: 6.5 mA DC Voltage state 0 guaranteed: 2.8 V DC Voltage state 1 guaranteed: 18.6 V DC Product weight: 0.016 kg Number of Units in Package 1: 1 Number of Units in Package 2: 4 Number of Units in Package 3: 64 Country of origin: LV Warranty (in months): 18 Built-in depth: 55 mm Control voltage 1: 24–240 V Type of control voltage 1: AC Rated current: 0.5 A Supply voltage: 24–240 V Voltage type (supply voltage): AC/DC

HS Code

8536.41

• EAN 3389110644777
• SAP 1000020874
• Code 8493714
