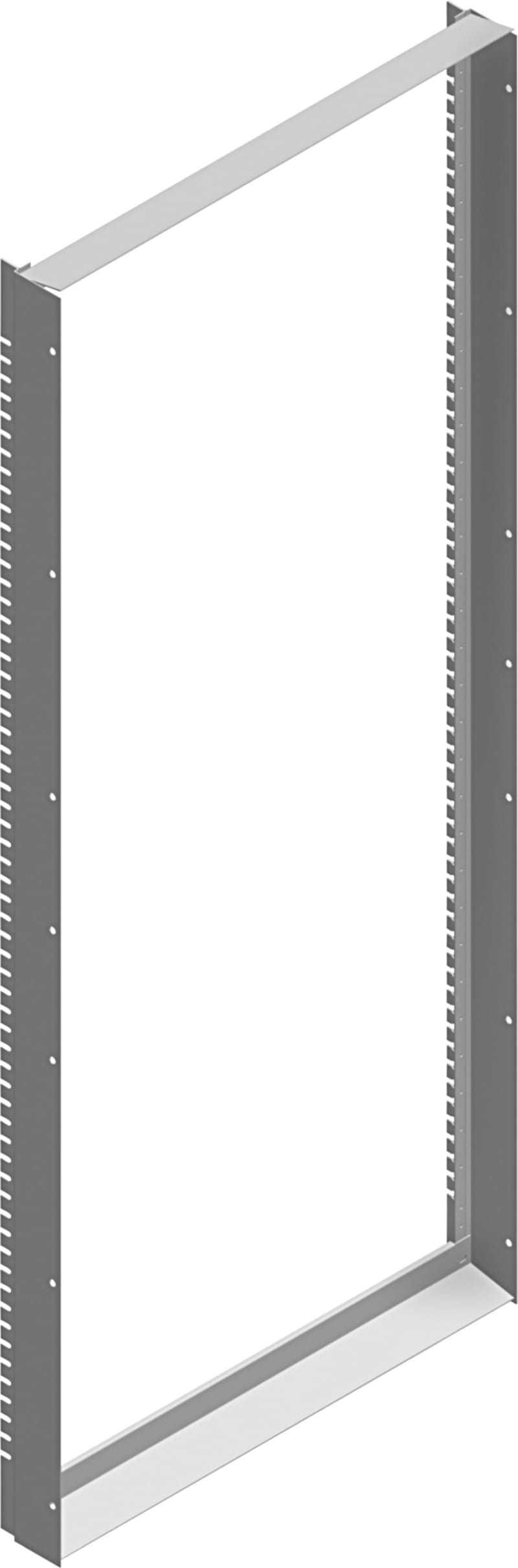

Modular frame 18X8 (NSYCSH188)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCSH188 Modular Frame 18X8.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCSH188
- EAN / GTIN
- 3606480063800
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose
- Product or component type
- Coupling kit
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT SM; PanelSeT SF
- Device composition
- fixing elements; 2 horizontal crossbars; 2 vertical uprights
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element
- Total number of 18 mm modules
- 360
- Height
- Real: 1705 mm; Nominal: 1800 mm
- Width
- Real: 702 mm
- Depth
- Real : 100 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 186.000 cm
- Package 1 Weight
- 7.726 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 40
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 359.900 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Module rack
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building height
- 1800 mm
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480063800
- SAP 1000090355
- Code 8925170
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric additionnal EMC filter S3 S4 M2 - 1-Phase supply - 9 A VW3A31401
Schneider Electric

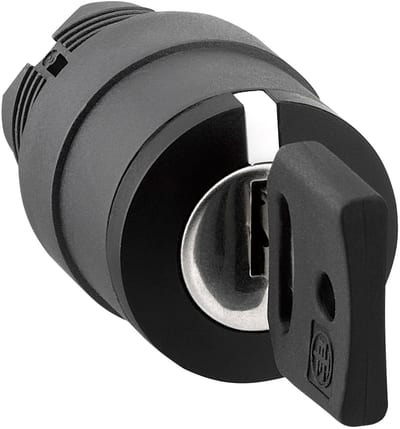

Key switch 3-Pos, key-out L
ZB5AG9
Schneider Electric

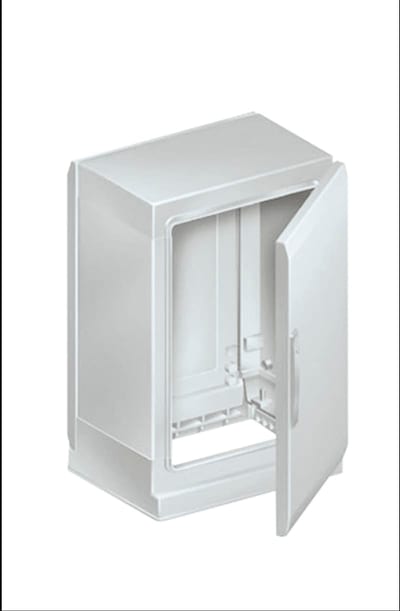

Schneider Electric Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1000X1250X320 IP54 NSYPLAZ10123G
Schneider Electric

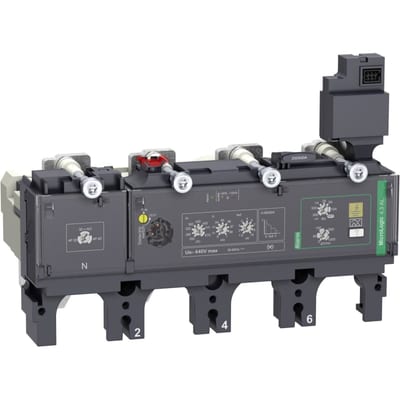

Schneider Electric Trip unit MicroLogic Vigi 7.3E ALUMINIUM, ComPacT NSX630, 3 poles, basic protections, earth leakage alarm, energy meter, 570A C6337A570
Schneider Electric

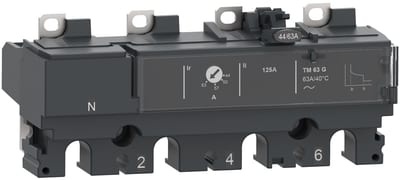

Schneider Electric Trip unit TM16G, ComPacT NSX100, 4 poles 4D (neutral fully protected), thermal magnetic protections, generator, 16A C104MG016
Schneider Electric

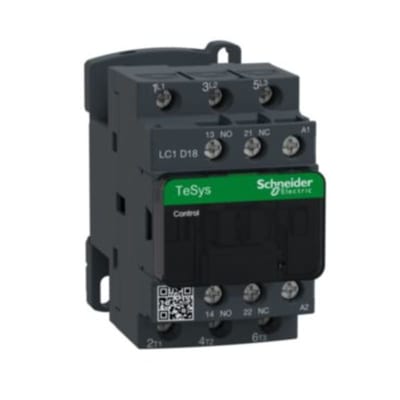

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 120V AC 50/60Hz coil, screw clamp terminals LC1D18G7
Schneider Electric

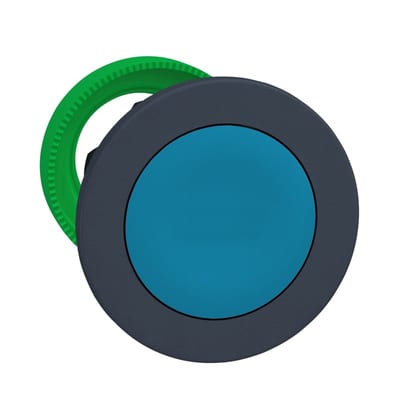

Push-button flush blue (ZB5FH06)
Schneider Electric

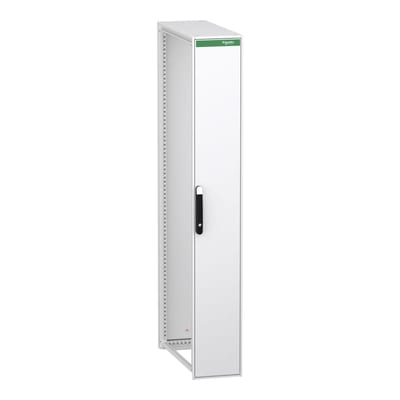

Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X300X800MM, IP55, RAL9003 NSYSFN20380ED
