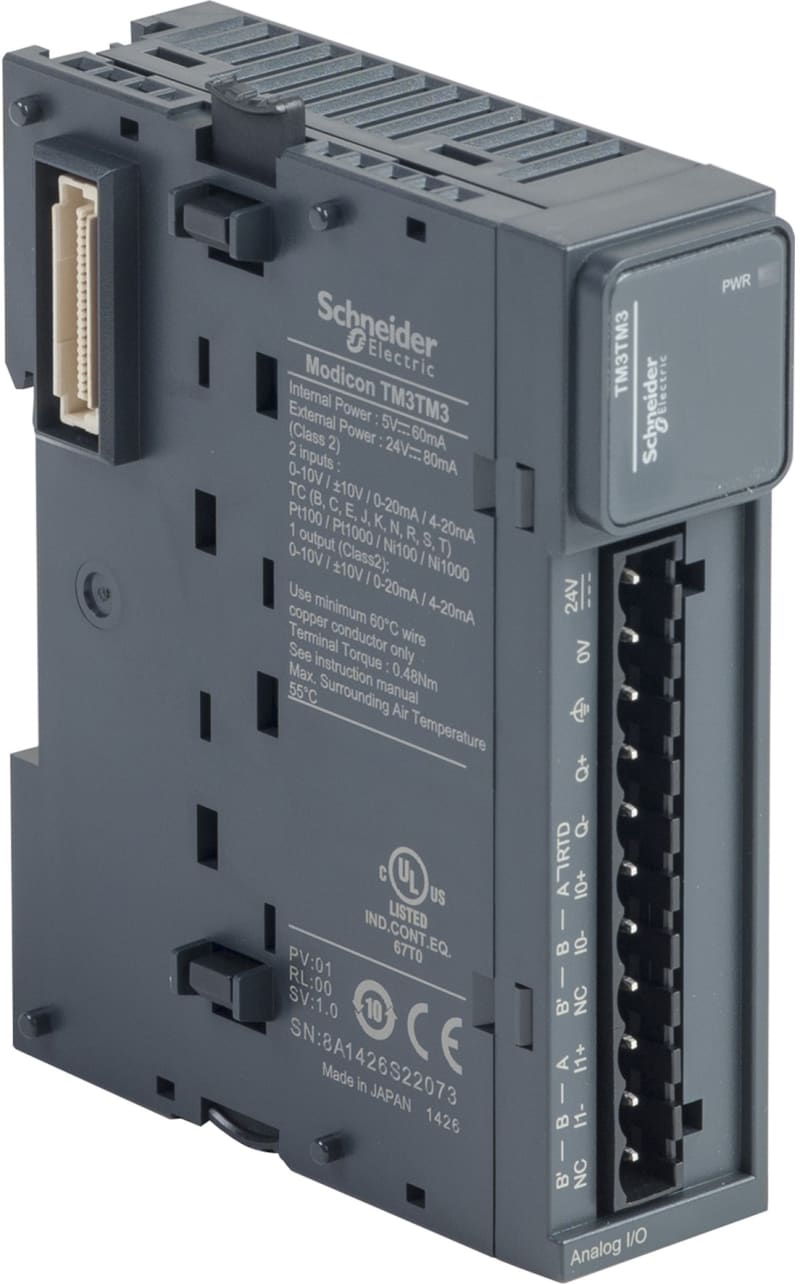

Schneider Electric Modicon TM3 - 2 analog or temperature inputs, 1 analog output (screw) 24VDC TM3TM3

Schneider Electric TM3TM3 Accessories Modicon PLS - IO extension - 2 temperaturinnganger and 1 analog output.

Manufacturer part number (MPN)

TM3TM3

EAN / GTIN

3606480649042

Sales unit

pcs

Package quantity

42 pcs

Range of product

Modicon TM3

Product or component type

Input/output analog module

Range compatibility

Modicon M221; Modicon M241; Modicon M251; Modicon M262

Analogue input number

2

Analogue output number

1

Analogue input type

Current 4...20 mA; Current 0...20 mA; Voltage 0...10 V; Voltage - 10...10 V; Thermocouple - 200...1000 °C thermocouple J; Thermocouple - 200...1300 °C thermocouple K; Thermocouple 0...1760 °C thermocouple R; Thermocouple 0...1760 °C thermocouple S; Thermocouple 0...1820 °C thermocouple B; Thermocouple - 200...400 °C thermocouple T; Thermocouple - 200...1300 °C thermocouple N; Thermocouple - 200...800 °C thermocouple E; Thermocouple 0...2315 °C thermocouple C; Temperature probe - 60...180 °C Ni 100/Ni 1000; Temperature probe - 200...850 °C Pt 100; Temperature probe - 200...600 °C Pt 1000

Analogue input resolution

16 bits; 15 bits + sign

Permissible continuous overload

13 V, analogue input type: voltage; 40 mA, analogue input type: current

Stabilisation time

1 ms

Input impedance

= 1 MOhm

Sampling duration

10 ms

Analogue output type

Current: 4...20 mA; Current: 0...20 mA; Voltage: 0...10 V; Voltage: - 10...10 V

Conversion time

100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple

Absolute accuracy error

+/- 6 °C at 25 °C for thermocouple R, S 0...200 °C; +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C; +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C; +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C; +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C; +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C; +/- 0.1 % of full scale at 25 °C for analogue input voltage/current; +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C; +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe; +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C; +/- 0.1 % of full scale at 25 °C for thermocouple B 300...1820 °C; +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C; +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C; +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C; +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C; +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C; +/- 0.1 % of full scale at 25 °C for analogue output voltage/current

Repeat accuracy

+/-0.5 %FS for input

Output ripple

20 mV

Cross talk

<= 1 LSB

Type of cable

Twisted shielded pairs cable <30 m for input/output circuit

Electrical connection

11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply

LSB value

0.15 mV, 0...10 V; 0.30 mV, - 10...10 V; 0.30 µA, 0...20 mA; 0.244 µA, 4...20 mA; 0.1 °C; 2.44 mV, 0...10 V; 4.88 mV, - 10...10 V; 4.88 µA, 0...20 mA; 3.91 µA, 4...20 mA

Insulation

Between input and supply at 1500 V AC; Between input and internal logic at 500 V AC; Between output and supply at 1500 V AC; Between output and internal logic at 500 V AC

Immunity to microbreaks

10 ms

Load impedance ohmic

1 kOhm voltage; 300 Ohm current

load type

Resistive

Temperature drift

+/- 0.006 %FS/°C

Non-linearity

+/- 0.01 %FS, analogue output type: analog output; +/- 0.1 %FS, analogue input type: analog input

Typical current consumption

55 mA at 24 V DC no load; 55 mA at 5 V DC no load; 60 mA at 5 V DC full load; 80 mA at 24 V DC full load

Local signalling

1 LED green for PWR

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Width

23.6 mm

Depth

70 mm

Product weight

0.115 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CE; UKCA; RCM; EAC; CULus; CULus HazLoc

Standards

IEC 61131-2

Electromagnetic emission

Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011

Ambient air temperature for operation

-10…55 °C (horizontal installation); -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

42

Number of Units in Package 3

504

Country of origin

JP

Warranty (in months)

18

Power consumption

1.1 W

Number of analogue inputs

2

Number of analogue outputs

1

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Input, current

Yes

Input, voltage

Yes

Input, resistor

Yes

Input, resistance thermometer

No

Input, thermocouple

Yes

Input signal, configurable

No

Resolution of the analogue inputs

16 Bit

Output, current

Yes

Output, voltage

Yes

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Type of electric connection

Screw connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90

• EAN 3606480649042
• SAP 1000506851
• Code 8758389
