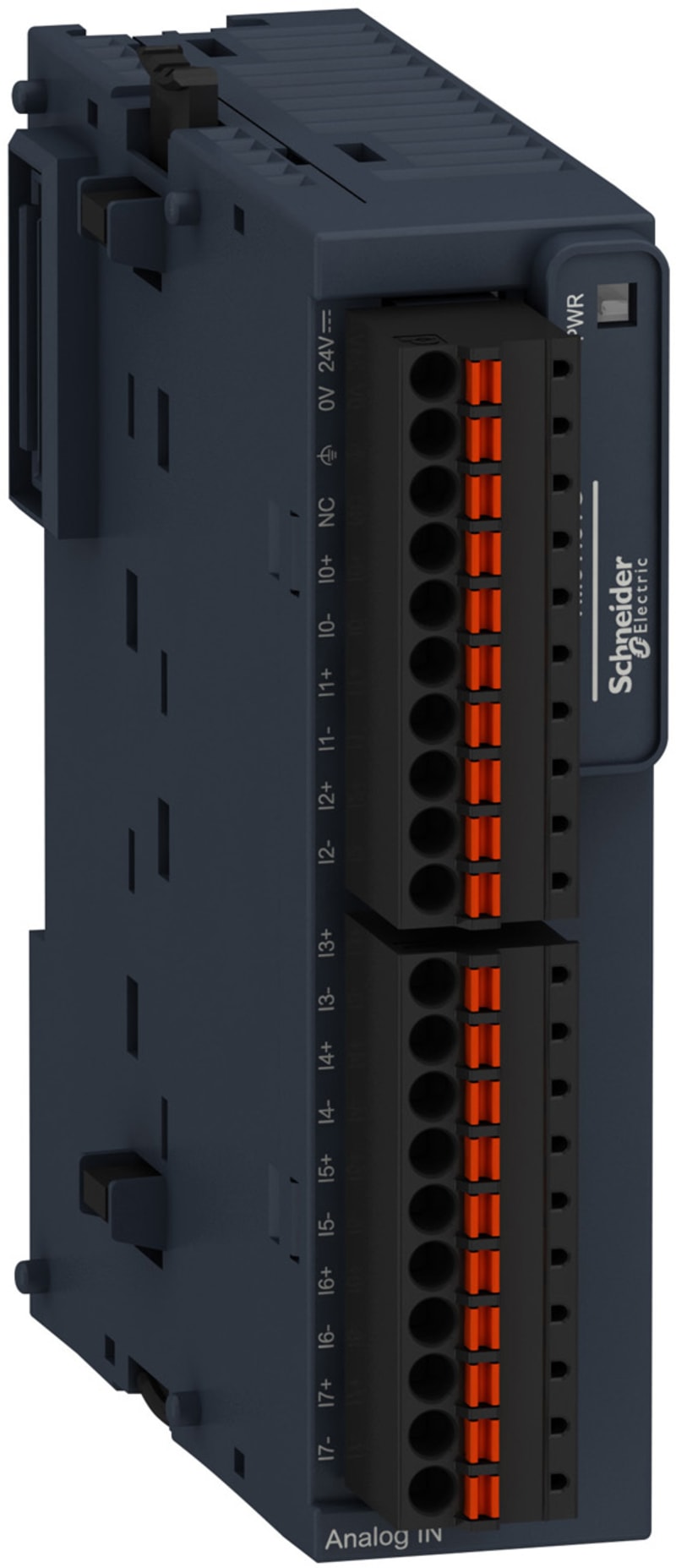

Schneider Electric Modicon TM3 - 8 temperature inputs (spring) 24VDC TM3TI8TG

Schneider Electric TM3TI8TG Accessories Modicon PLS - IO extension - 8 temperaturinnganger, spring terminal.

Manufacturer part number (MPN)

TM3TI8TG

EAN / GTIN

3606480649035

Sales unit

pcs

Package quantity

9 pcs

Range of product

Modicon TM3

Product or component type

Analog input module

Range compatibility

Modicon M221; Modicon M241; Modicon M251; Modicon M262

Analogue input number

8

Analogue input type

Thermocouple - 200...1000 °C thermocouple J; Thermocouple - 200...1300 °C thermocouple K; Thermocouple 0...1760 °C thermocouple R; Thermocouple 0...1760 °C thermocouple S; Thermocouple 0...1820 °C thermocouple B; Thermocouple - 200...400 °C thermocouple T; Thermocouple - 200...1300 °C thermocouple N; Thermocouple - 200...800 °C thermocouple E; Thermistor -90...150 °C NTC 10k; Thermistor 100...10000 Ohm PTC

Analogue input resolution

16 bits; 15 bits + sign

Input impedance

>= 1 MOhm

Sampling duration

100 ms

Conversion time

100 ms + 100 ms per channel + 1 controller cycle time

Absolute accuracy error

+/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C; +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C; +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C; +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C; +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C; +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C; +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C; +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C; +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C; +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C; +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C; +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C; +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C; +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C

Repeat accuracy

+/-0.5 %FS

Cross talk

<= 1 LSB

Type of cable

Twisted shielded pairs cable <30 m for input circuit

Electrical connection

10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply; 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs

LSB value

0.1 °C; 1 Ohm

Insulation

Between output and supply at 1500 V AC; Between output and internal logic at 500 V AC

Immunity to microbreaks

10 ms

Temperature drift

+/- 0.01 %FS/°C

Non-linearity

+/- 0.2 %FS

Typical current consumption

30 mA at 24 V DC; 45 mA at 5 V DC; 40 mA at 5 V DC

Local signalling

1 LED green for PWR

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Width

23.6 mm

Depth

70 mm

Product weight

0.1 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CE; UKCA; RCM; EAC; CULus; CULus HazLoc

Standards

IEC 61131-2

Electromagnetic emission

Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011

Ambient air temperature for operation

-10…55 °C (horizontal installation); -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

9

Number of Units in Package 3

288

Country of origin

JP

Warranty (in months)

18

Number of analogue inputs

8

Analogue inputs configurable

No

Analogue outputs configurable

No

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

Yes

Input, thermocouple

Yes

Input signal, configurable

No

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Type of electric connection

Spring clamp connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
