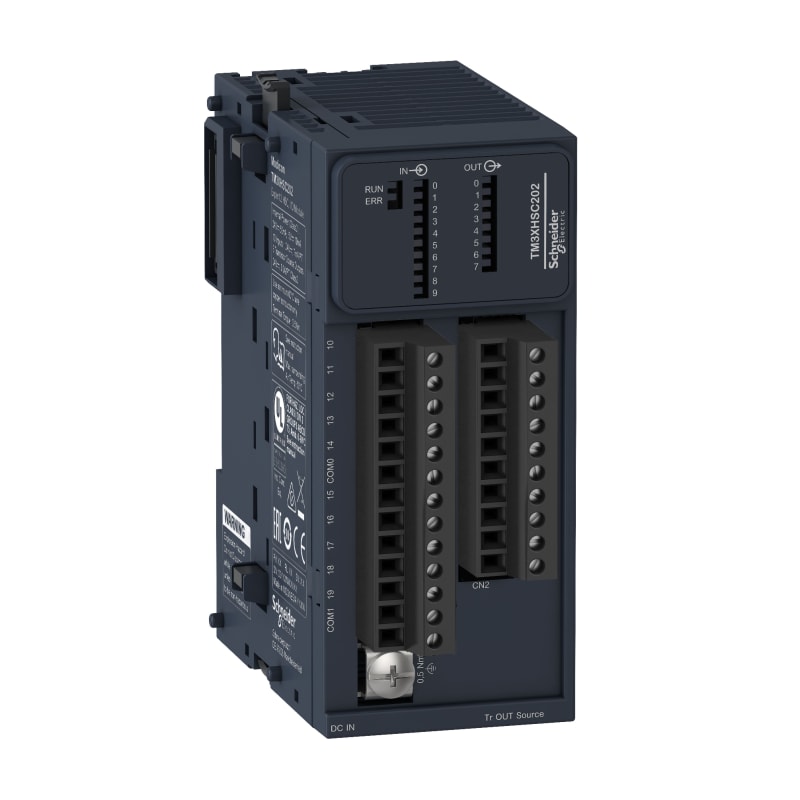

Schneider Electric Module hight speed counting, Modicon TM3, 2 channels HSC, 10 inputs, 8 outputs (screw) TM3XHSC202

Schneider Electric TM3XHSC202 Modicon extension module TM3 Expert 2 HSC screw terminal, for M2xx PLS.

Manufacturer part number (MPN)

TM3XHSC202

EAN / GTIN

3606489604257

Sales unit

pcs

Package quantity

18 pcs

Range of product

Modicon TM3

Product or component type

Module hight speed counting

[Us] rated supply voltage

24 V DC by external supply (- 15...20 %)

Number of input channels

10

Number of output channels

8

Discrete I/O number

18

Range compatibility

Modicon M262

Current consumption

100 mA at 5 V DC; 50 mA at 24 V DC

Counting frequency

200 kHz

Discrete input voltage

24 V DC

Electrical circuit type

Standard input; Latch input

Discrete input logic

Sink or source

Output voltage

24 V DC for transistor output

Output voltage limits

30 V DC

Discrete output current

300 mA for fast output (Q0...Q7)

Discrete output logic

Source

Output protection type

Against overload and short-circuits

Reset

Automatic reset

Local signalling

1 LED for I/O; 1 LED for RUN; 1 LED for ERR

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Services

HSC simple - functions available: One shot/Modulo; HSC main single phase - functions available: One shot/Modulo/Event counting; HSC main dual phase - functions available: Modulo/Free-large; Period meter - functions available: Edge to Edge, Edge to Opposite

Counting mode

2 main expert function (main counting function, frequency meter, period meter); Max 8 simple counting function

Event management

No event; Thresholds < 10 µs

Height

90 mm

Depth

85 mm

Width

39 mm

Product weight

150 g

DC supply voltage

24 V

Product certifications

cULus; IACS E10; RCM; CE; UKCA; EAC

Standards

CSA C22.2 No 142; ANSI/ISA 12-12-01; UL 1604; CSA C22.2 No 213; EN/IEC 61131-2:2007; UL 508; EN/IEC 61010-2-201

Resistance to electrostatic discharge

8 kV in air conforming to EN/IEC 61000-4-2; 4 kV on contact conforming to EN/IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Resistance to fast transients

2 kV for alimentation cable conforming to EN/IEC 61000-4-4; 1 kV for Ethernet line conforming to EN/IEC 61000-4-4; 1 kV for serial link conforming to EN/IEC 61000-4-4; 1 kV for input conforming to EN/IEC 61000-4-4; 1 kV for transistor output conforming to EN/IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4

Electromagnetic emission

Conducted emissions - test level: 120...69 dBµV/m QP at 10…150 kHz conforming to EN/IEC 55011; Conducted emissions - test level: 63 dBμV/m QP at 1.5…30 MHz conforming to EN/IEC 55011; Radiated emissions - test level: 40 dBµV/m class A at 30…230 MHz conforming to EN/IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP at 150…1500 kHz conforming to EN/IEC 55011; Radiated emissions - test level: 47 dBµV/m class A at 230…1000 MHz conforming to EN/IEC 55011

Ambient air temperature for operation

-20…60 °C horizontal installation; -20…50 °C vertical installation

Ambient air temperature for storage

-40…85 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 2…8.4 Hz on DIN rail; 1 gn at 8.4…200 Hz on DIN rail; 3.5 mm at 2…8.4 Hz on panel; 1 gn at 8.4…200 Hz on panel

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

18

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of functions

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

No

Suitable for counting

Yes

Suitable for weighing

No

Suitable for temperature control

No

Suitable for welding control

No

Suitable for pressure control

No

Suitable for NC

No

Suitable for electronic positioning

Yes

Suitable for CNC

No

Suitable for SSI

No

Suitable for incremental data detection

No

Suitable for detection absolute value

No

Suitable for flux controller

No

Suitable for flux measurement

No

Suitable for path controller

No

Suitable for cam controller

No

Suitable for multi-axis control

No

Suitable for single-axis controller

No

Suitable for multi-axis positioning

No

Suitable for single-axis positioning

No

Function block restart blockage

No

Function block automatic reset

No

Contactor control function block

No

Function block emergency stop

No

Function block contactless working protection installation

No

HS Code

8538.90
