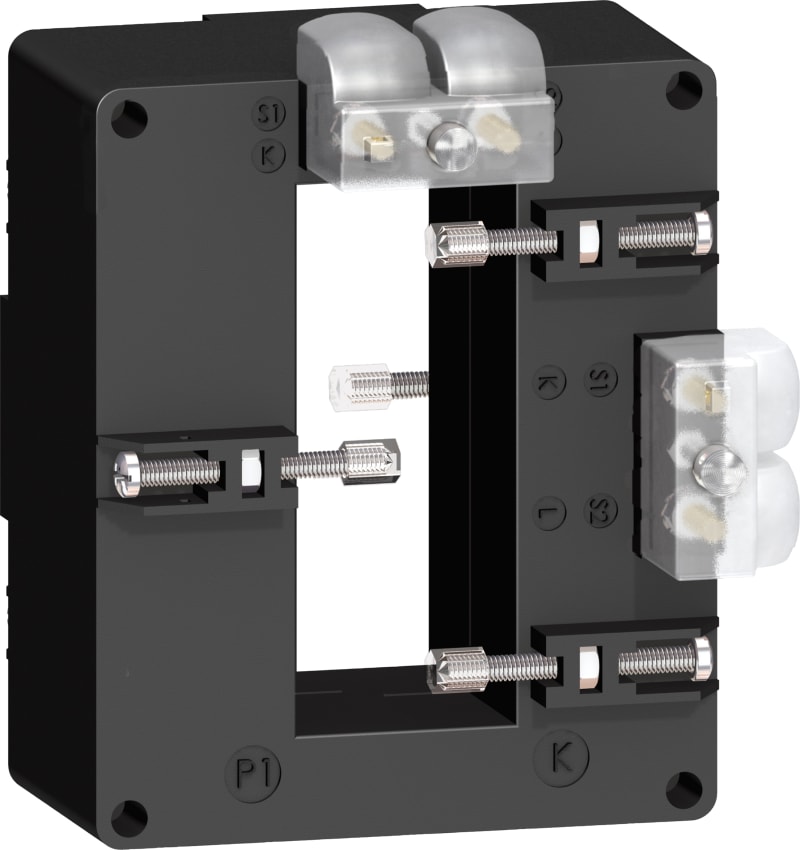

Current Transformer 1250/5 Rail 34X84

Schneider Electric METSECT5DD125 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5DD125

EAN / GTIN

3303431123711

Sales unit

pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 12 VA; Class 1 at 15 VA

[In] rated current

1250 A

Current transformer type

Tropicalised for busbar; Solid core

Current transformer ratio

1250/5

[Ith] conventional free air thermal current

60 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV

mounting mode

Insulated locking screw

Mounting support

Busbar

Width

Outside: 96 mm; Inner: 34 mm

Height

Outside: 116 mm; Inner: 84 mm

Depth

Frame : 40 mm; Total : 78.4 mm

Product weight

0.626 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Opening of bars

84 x 34

Sealing

With

Standards

VDE 0414; IEC 61869-2

Product certifications

EAC; CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…50 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.500 cm

Package 1 Width

10.000 cm

Package 1 Length

13.500 cm

Package 1 Weight

627.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

12

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.924 kg

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

1250 A

Rated secondary current

5 A

Rated secondary apparent power

15 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

84 mm

Width opening

35 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31

• EAN 3303431123711
• SAP 1000632729
• Code 8567429
