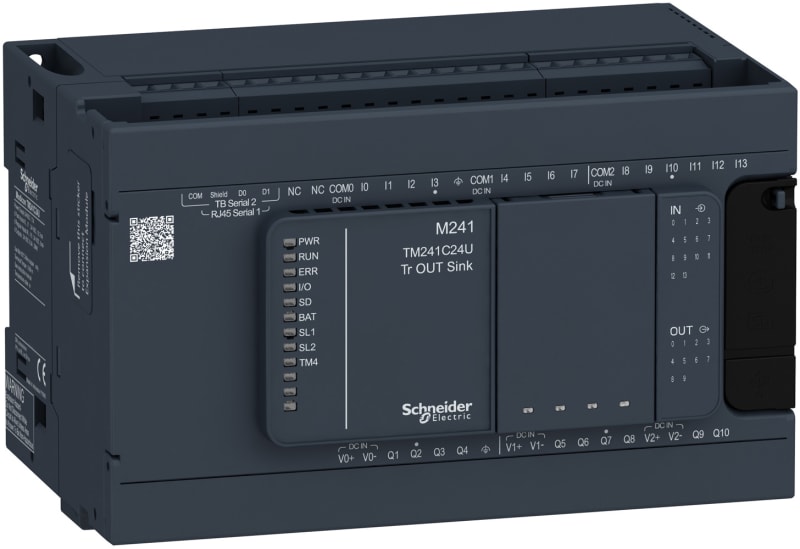

Schneider Electric controller M241 24 IO transistor NPN TM241C24U

Schneider Electric TM241C24U Flexible and modular PLS.

Manufacturer part number (MPN)

TM241C24U

EAN / GTIN

3606480611131

Sales unit

pcs

Package quantity

8 pcs

Output type

NPN

Range of product

Modicon M241

Product or component type

Logic controller

[Us] rated supply voltage

24 V DC

Discrete input number

14, discrete input 8 fast input conforming to IEC 61131-2 Type 1

Discrete output type

Transistor

Discrete output number

10 transistor 4 fast output

Discrete output voltage

24 V DC for transistor output

Discrete output current

0.5 A for transistor output (Q0...Q9); 0.1 A for fast output (PTO mode) (Q0...Q3)

Discrete I/O number

24

Maximum number of I/O expansion module

7 (local I/O-Architecture); 14 (remote I/O-Architecture)

Supply voltage limits

20.4…28.8 V

Inrush current

50 A

Power consumption in W

32.6…40.4 W (with max number of I/O expansion module)

Discrete input logic

Sink or source

Discrete input voltage

24 V

Discrete input voltage type

DC

Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

5 mA for input; 10.7 mA for fast input

Input impedance

4.7 kOhm for input; 2.81 kOhm for fast input

Response time

50 µs turn-on, I0...I13 terminal(s) for input; 50 µs turn-off, I0...I13 terminal(s) for input; <= 2 µs turn-on, I0...I7 terminal(s) for fast input; <= 2 µs turn-off, I0...I7 terminal(s) for fast input; <= 34 µs turn-on, Q0...Q9 terminal(s) for output; <= 250 µs turn-off, Q0...Q9 terminal(s) for output; <= 2 µs turn-on, Q0...Q3 terminal(s) for fast output; <= 2 µs turn-off, Q0...Q3 terminal(s) for fast output

Configurable filtering time

1 s for fast input; 12 ms for fast input; 0 ms for input; 1 ms for input; 4 ms for input; 12 ms for input

Discrete output logic

Negative logic (sink)

Output voltage limits

30 V DC

Maximum current per output common

2 A with Q0...Q3 for fast output; 2 A with Q4...Q7 for output; 1 A with Q8...Q9 for output

Maximum output frequency

20 kHz for fast output (PWM mode); 100 kHz for fast output (PLS mode); 1 kHz for output

Accuracy

+/- 0.1 % at 0.02…0.1 kHz for fast output; +/- 1 % at 0.1…1 kHz for fast output

Maximum leakage current

5 µA for output

Maximum voltage drop

<1 V

Maximum tungsten load

<2.4 W

Protection type

Short-circuit protection; Short-circuit and overload protection with automatic reset; Reverse polarity protection for fast output

Reset time

10 ms automatic reset output; 12 s automatic reset fast output

Memory capacity

64 MB for system memory RAM

Data backed up

128 MB built-in flash memory for backup of user programs

Data storage equipment

<= 16 GB SD card (optional)

Battery type

BR2032 lithium non-rechargeable, battery life: 4 year(s)

Backup time

2 years at 25 °C

Execution time for 1 KInstruction

0.3 ms for event and periodic task; 0.7 ms for other instruction

Application structure

4 cyclic master tasks; 8 external event tasks; 8 event tasks; 3 cyclic master tasks + 1 freewheeling task

Realtime clock

With

Clock drift

<= 60 s/month at 25 °C

Positioning functions

PTO function 4 channel(s) (positioning frequency: 100 kHz); PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz)

Counting input number

4 fast input (HSC mode) at 200 kHz; 14 standard input at 1 kHz

Control signal type

A/B at 100 kHz for fast input (HSC mode); Pulse/direction at 200 kHz for fast input (HSC mode); Single phase at 200 kHz for fast input (HSC mode)

Integrated connection type

Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface ; Non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface ; USB port with mini B USB 2.0 connector

Supply

(serial 1)serial link supply: 5 V, <200 mA

Transmission rate

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 480 Mbit/s for bus length of 3 m for USB

Communication port protocol

Non isolated serial link: Modbus master/slave

Local signalling

1 LED (green) for PWR; 1 LED (green) for RUN; 1 LED (red) for module error (ERR); 1 LED (red) for I/O error (I/O); 1 LED (green) for SD card access (SD); 1 LED (red) for BAT; 1 LED (green) for SL1; 1 LED (green) for SL2; 1 LED (red) for bus fault on TM4 (TM4); 1 LED per channel (green) for I/O state

Electrical connection

removable screw terminal blockfor inputs and outputs (pitch 5.08 mm); removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm)

Maximum cable distance between devices

Unshielded cable: <50 m for input; Shielded cable: <10 m for fast input; Unshielded cable: <50 m for output; Shielded cable: <3 m for fast output

Insulation

Between supply and internal logic at 500 V AC; Non-insulated between supply and ground; Between input and internal logic at 500 V AC; Non-insulated between inputs; Between fast input and internal logic at 500 V AC; Between output and internal logic at 500 V AC; Non-insulated between outputs; Between fast output and internal logic at 500 V AC

Marking

CE

Surge withstand

1 kV power lines (DC) common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5; 1 kV relay output differential mode conforming to IEC 61000-4-5; 1 kV input common mode conforming to IEC 61000-4-5; 1 kV transistor output common mode conforming to IEC 61000-4-5

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Depth

95 mm

Width

150 mm

Product weight

0.53 kg

Standards

ANSI/ISA 12-12-01; CSA C22.2 No 142; CSA C22.2 No 213; IEC 61131-2:2007; Marine specification (LR, ABS, DNV, GL); UL 508

Product certifications

RCM; cULus; CE; UKCA; DNV-GL; ABS; LR

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2; 4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4; 1 kV (input) conforming to IEC 61000-4-4; 1 kV (transistor output) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBμV/m QP class A at 30…230 MHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to IEC 55011

Immunity to microbreaks

10 ms

Ambient air temperature for operation

-10…50 °C (vertical installation); -10…55 °C (horizontal installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 5…8.4 Hz on symmetrical rail; 3 gn at 8.4…150 Hz on symmetrical rail; 3.5 mm at 5…8.4 Hz on panel mounting; 3 gn at 8.4…150 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

ID

Warranty (in months)

18

Model

Compact

With display

No

Suitable for safety functions

No

Number of digital inputs

14

Number of digital outputs

10

Voltage type (supply voltage)

DC

Type of memory

NVRAM

Memory size

64000 kByte

Processing time (1K, binary operation)

0.022 ms

Max. number of addressable analogue I/O-ports

114

Max. number of addressable digital I/O-ports

264

Supporting protocol for LON

No

Number of HW-interfaces RS-232

2

Number of HW-interfaces RS-485

2

Number of HW-interfaces USB

1

With optical interface

No

Additional program memory possible

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

Redundancy

No

Suitable for rail mounting

Yes

Explosion safety category for gas

None

Explosion safety category for dust

None

System accessory

No

Appendant operation agent (Ex ia)

No

Supporting protocol for SERCOS

No

HS Code

8537.10
