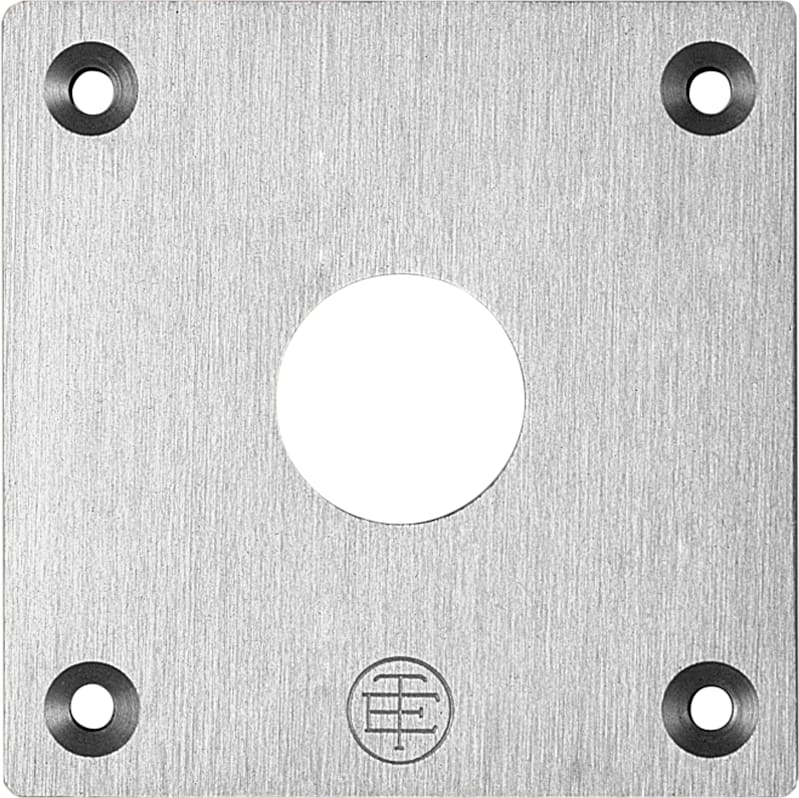

Plate FOR RECESSED (XAPE301)

Schneider Electric XAPE301 Front plate For Recessed Mounting 1 Hole.

Manufacturer part number (MPN)

XAPE301

EAN / GTIN

3389110628005

Sales unit

pcs

Package quantity

30 pcs

Range of product

Harmony XAP

Product or component type

Front plate with fixing screws

Device short name

XAPE

Product destination

For Ø 22 mm control and signalling units

Product front plate size

72 x 72 mm

Number of cut-out

1 cut-out

Material

Anodised aluminium

Device mounting

Flush

IP degree of protection

IP65 conforming to IEC 60529; IP65 conforming to NF C 20-010

Resistance to chemical agents

Good resistant to acetone; Good resistant to alcohols; Good resistant to chloride and fluoride solvents; Good resistant to diluted mineral acids; Good resistant to oils and petrol; Good resistant to organic acids; Good resistant to salts

Product weight

0.05 kg

Protective treatment

TH; TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

Class I conforming to IEC 60536; Class I conforming to NF C 20-030

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

12.500 cm

Package 1 Length

17.000 cm

Package 1 Weight

69.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

30

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

2.382 kg

Country of origin

FR

Warranty (in months)

18

Width

72 mm

Height

72 mm

Diameter openings

22 mm

Number of command positions

1

Degree of protection (IP)

IP65

HS Code

8538.90

• EAN 3389110628005
• SAP 1000069530
• Code 8725370
