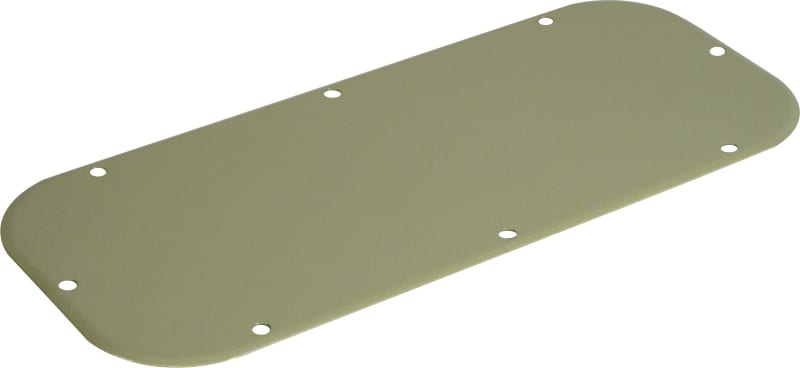

Gland Plate 545X130 (NSYTLF)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTLF Flange plate 545x130.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTLF
- EAN / GTIN
- 3606480168345
- Sales unit
- pcs
- Dimensions
- 545×130 mm
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT S3D
- Mounting location
- Enclosure bottom
- Cable gland type
- Standard
- Device composition
- fixing elements; 1 plate; 1 separate gasket
- Quantity per set
- Set of 1
- Material
- Plate: steel; Seal: polyethylene (PE) foam
- Colour
- Plate: grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Number of cut-out
- 57 markings 25 mm
- Height
- 545 mm
- Width
- 545 mm; Real: 600 mm
- Depth
- 130 mm; Real : 200 mm
- Product weight
- 890 kg
- thickness
- 1.5…2.0 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 55.000 cm
- Package 1 Width
- 14.000 cm
- Package 1 Length
- 1.000 cm
- Package 1 Weight
- 878.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 13.000 cm
- Package 2 Width
- 22.000 cm
- Package 2 Length
- 62.000 cm
- Package 2 Weight
- 9.222 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 200
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 195.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Cable screw gland
- Surface protection
- Untreated
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
- Degree of protection (NEMA)
- 4X
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480168345
- SAP 1000470549
- Code 8932029
