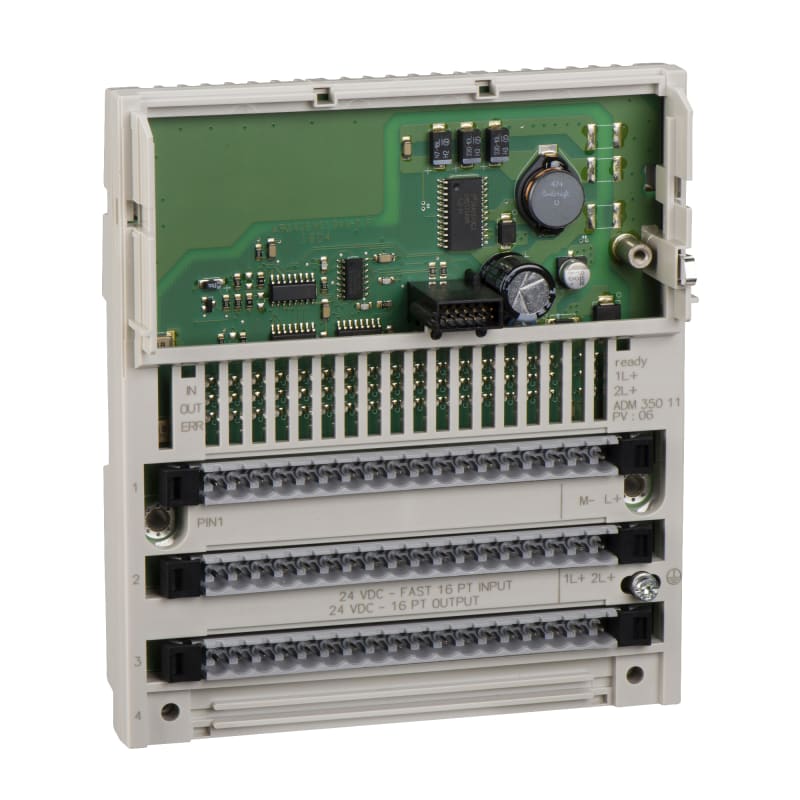

Schneider Electric discrete I/O module Modicon Momentum - 16 I/O solid state 170ADM35010

Schneider Electric 170ADM35010 16 in 24VDC/ 16 out trans.

Manufacturer part number (MPN)

170ADM35010

EAN / GTIN

3595861000261

Sales unit

pcs

Package quantity

10 pcs

Voltage

24 V DC

Range of product

Modicon Momentum automation platform

Product or component type

Discrete solid state I/O base DC

Group of channels

2 groups of 8 outputs; 1 group of 16 inputs

Discrete input number

16

Discrete input voltage

24 V DC (voltage limits: - 3...30 V)

Discrete input logic

Positive

Discrete output number

16

Discrete output logic

Positive

Discrete output voltage

<= 30 V DC for solid state switch; 24 V DC for solid state switch

Input resistance

4 kOhm

Peak output current

5 A

Fault type

Overload on output

Response time

< 0.1 ms from state 0 to state 1 on output; < 0.1 ms from state 1 to state 0 on output; 2.2 ms from state 0 to state 1 on input; 3.3 ms from state 1 to state 0 on input

Discrete input compatibility

16 conforming to IEC 1131-2 Type 1 at 24 V DC

Voltage state 1 guaranteed

11...30 V

Voltage state 0 guaranteed

-3...5 V

Current state 1 guaranteed

>= 2.5 mA

Current state 0 guaranteed

<= 1.2 mA

Discrete output current

4 A per group; 8 A per module; 0.5 A per point

Maximum leakage current

1 mA 24 V DC output circuit

Maximum voltage drop

<0.5 V at state 1 for output circuit

Typical current consumption

250 mA at 24 V DC

Power dissipation in W

6 W

Isolation between channels and bus

500 V AC

Terminals description PLC n°1

(L+)PW_POS; (8)IN_DIS#8; (6)IN_DIS#6; (5)IN_DIS#5; TB; (2)IN_DIS#2; (12)IN_DIS#12; (M-)PW_NEG; (15)IN_DIS#15; (13)IN_DIS#13; (10)IN_DIS#10; (3)IN_DIS#3; (9)IN_DIS#9; (7)IN_DIS#7; (1)IN_DIS#1; (11)IN_DIS#11; (14)IN_DIS#14; (16)IN_DIS#16; (4)IN_DIS#4

Terminals description PLC n°2

(10)OUT_DIS#10; (6)OUT_DIS#6; (8)OUT_DIS#8; (1)OUT_DIS#1; (11)OUT_DIS#11; (4)OUT_DIS#4; (5)OUT_DIS#5; (15)OUT_DIS#15; (2L+)PW_POS; TB_1; (7)OUT_DIS#7; (2)OUT_DIS#2; (14)OUT_DIS#14; (9)OUT_DIS#9; (13)OUT_DIS#13; (3)OUT_DIS#3; (1L+)PW_POS; (12)OUT_DIS#12

Local signalling

16 LEDs for channel status

Height

141.5 mm

Width

125 mm

Depth

47.5 mm

Product weight

0.2 kg

IP degree of protection

IP20

Protective treatment

TC

Marking

CE

Product certifications

UL; CSA

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

95 % without condensation

Operating altitude

<= 5000 m

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

80

Country of origin

ID

Warranty (in months)

18

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Number of digital inputs

16

Number of digital outputs

16

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

10 mA

Permitted voltage at input

-3–30 V

Type of voltage (input voltage)

AC/DC

Type of digital output

Transistor

Output current

0.5 A

Permitted voltage at output

20–30 V

Type of output voltage

AC/DC

Short-circuit protection, outputs available

Yes

Redundancy

No

Time delay at signal change

3.3 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
