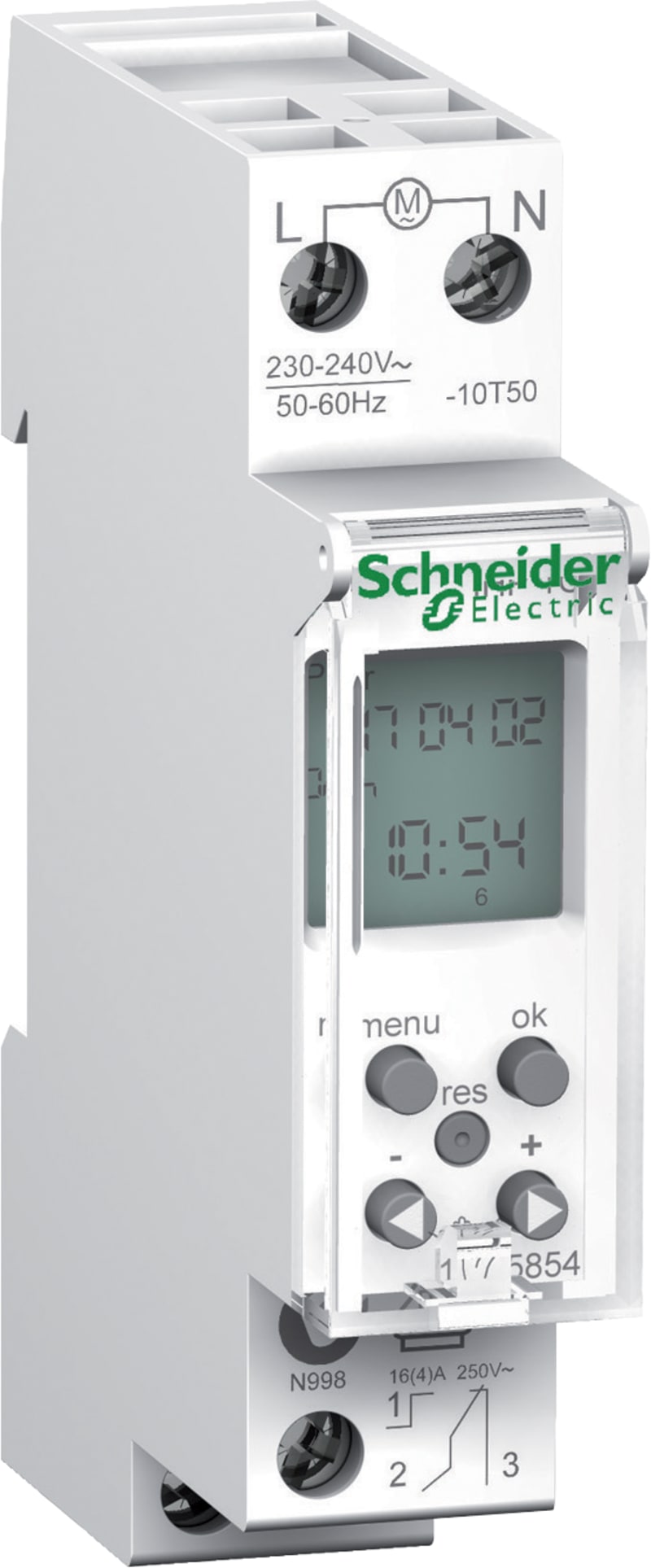

Schneider Electric ACTI9 - IHP - 1C digital time switch - 24 hours + 7 days CCT15854

Schneider Electric CCT15854 Acti 9 IHP single-channel programmable digital time switch with 24-hour and 7-day cycles. LCD display with lithium battery backup provides 10 years of program and time retention. Rated 16 A at 250 V AC with automatic winter/summer time changeover, 2-module DIN-rail mount.

Manufacturer part number (MPN)

CCT15854 EAN / GTIN: 3606480492358 Sales unit: pcs Package quantity: 86 pcs range of product: Acti9 Product name: Acti9 IHP Device short name: IHP Product or component type: Programmable digital time switch Device application: Building battery type: Lithium Number of channels: 1 Available equipment: Programming kit; Memory key User language: Portuguese; English; French; Italian; German; Spanish Colour tint: White (RAL 9003) Maximum switching current: 16 A - 250 V AC pf = 1; 4 A - 250 V AC pf = 0.6 [Ue] rated operational voltage: 230 V AC - 15...10 % at 50/60 Hz Accuracy: +/- 0.5 s/day 25 °C Cycle duration: 24 hours + 7 days Maximum number of switchings: 56 minimum interval duration: 1 min Function available: Operating hours counter; Automatic winter/summer time changeover Display type: LCD Battery life: 10 year(s) Backup time: 10 years time and program saving Type of setting: PIN code; Absence for holidays function Connections - terminals: 2 x 0.5…2.5 mm² screwless terminals Mounting support: DIN rail 9 mm pitches: 2 Width: 18 mm Height: 90 mm Depth: 66 mm Product weight: 0.09 kg Function: None Absence for holidays: Yes Time changeover: Automatic Updated by: None Compatibility code: IHP Market segment: Residential; Small commercial Ambient air temperature for operation: -25…55 °C IP degree of protection: IP20 B Number of Units in Package 1: 1 Number of Units in Package 2: 86 Country of origin: DE Warranty (in months): 18 Shortest switching time channel 1: 60 s Mounting method: DIN rail Voltage type (supply voltage): AC Autonomy in hours: 52560 Autonomy in years: 10 Accuracy per day: 0.5 s Contact type: Breaker contact Nominal switching current at 250 V AC: 16 A Degree of protection (IP): IP20 Width in number of modular spacings: 1

HS Code

9107.00

• EAN 3606480492358
• SAP 1200011257
• Code 8557895
