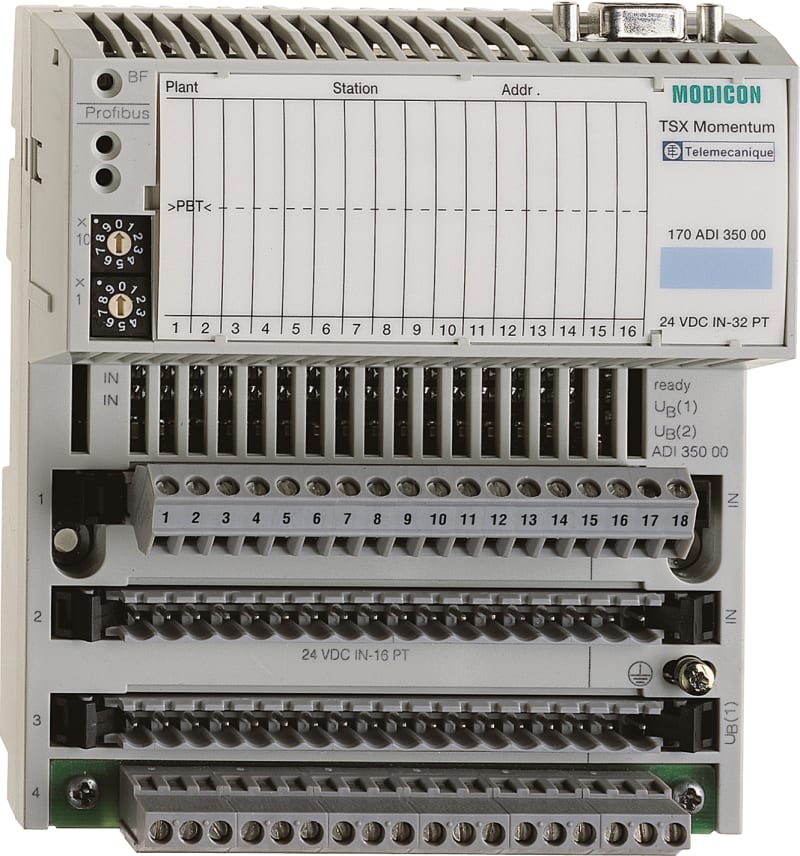

Schneider Electric discrete input module Modicon Momentum - 32 Input 24 V DC 170ADI35000

Schneider Electric discrete input module Modicon Momentum - 32 Input 24 V DC 170ADI35000 is listed under Control & Automation / I/O Modules. Sales unit: pcs; Package quantity: 4 pcs; Voltage: 24 V DC; Range of product: Modicon Momentum automation platform; Product or component type: Discrete inputs base DC; Group of channels: 2 groups of 16 inputs.

Manufacturer part number (MPN)

170ADI35000

EAN / GTIN

3595861000254

Sales unit

pcs

Package quantity

4 pcs

Voltage

24 V DC

Range of product

Modicon Momentum automation platform

Product or component type

Discrete inputs base DC

Group of channels

2 groups of 16 inputs

Discrete input number

32

Discrete input logic

Positive

Voltage range

- 3...30 V

Isolation between channels and bus

500 V AC

Terminals description PLC n°1

(5)IN_DIS#5; (L+)PW_POS; (12)IN_DIS#12; (9)IN_DIS#9; (14)IN_DIS#14; (7)IN_DIS#7; (4)IN_DIS#4; (6)IN_DIS#6; (10)IN_DIS#10; (2)IN_DIS#2; (8)IN_DIS#8; (M-)PW_NEG; (16)IN_DIS#16; (13)IN_DIS#13; (15)IN_DIS#15; (11)IN_DIS#11; (1)IN_DIS#1; (3)IN_DIS#3; TB

Terminals description PLC n°2

TB_1; (13)IN_DIS#29; (4)IN_DIS#20; (1L+)PW_POS; (11)IN_DIS#27; (8)IN_DIS#24; (6)IN_DIS#22; (16)IN_DIS#32; (1)IN_DIS#17; (2)IN_DIS#18; (2L+)PW_POS; (10)IN_DIS#26; (5)IN_DIS#21; (9)IN_DIS#25; (3)IN_DIS#19; (12)IN_DIS#28; (14)IN_DIS#30; (7)IN_DIS#23; (15)IN_DIS#31

Local signalling

32 LEDs for channel status

Height

141.5 mm

Width

125 mm

Depth

47.5 mm

Product weight

0.2 kg

Protective treatment

TC

Marking

CE

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

80

Country of origin

ID

Warranty (in months)

18

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital inputs

32

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

2.5 mA

Permitted voltage at input

-3–30 V

Type of voltage (input voltage)

DC

Type of digital output

None

Type of output voltage

AC/DC

Short-circuit protection, outputs available

No

Redundancy

No

Time delay at signal change

3.3 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90

• EAN 3595861000254
• SAP 1000045266
• Code 8527918
