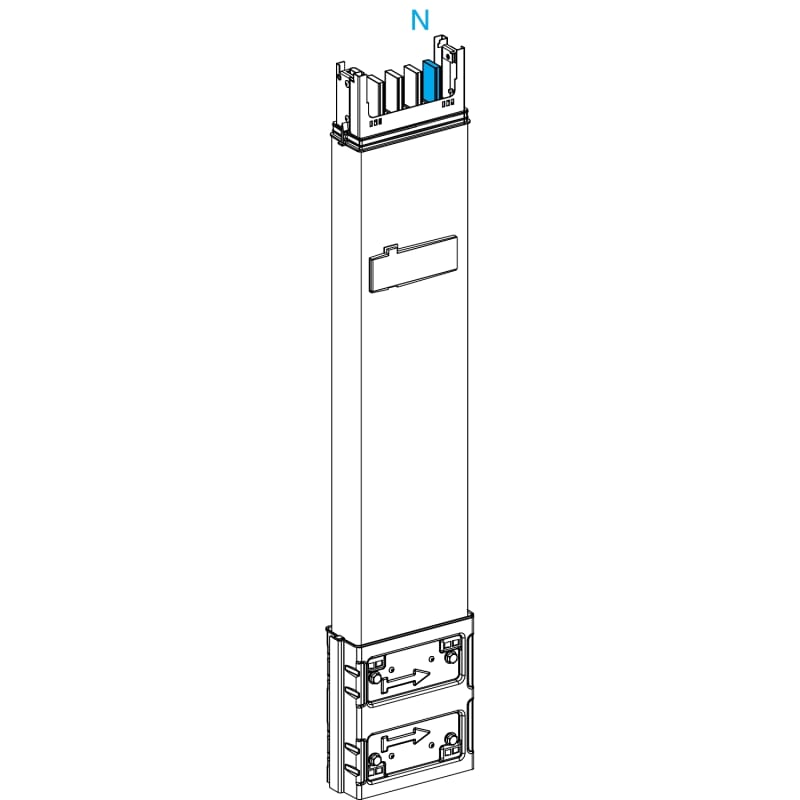

Schneider Electric Vertical distribution length, Canalis KSA250, aluminium, 160/250A, fixed length 0.8M, 1 outlet, 3L+N+PE, white RAL9001 KSA250ED4081

Schneider Electric KSA250ED4081 Ladders 250A 0,8M 1 outlet.

Manufacturer part number (MPN)

KSA250ED4081

EAN / GTIN

3606480004353

Sales unit

pcs

Rated current

250 A

Range

Canalis

Device short name

KSA

Offer type

Rising main

Product or component type

Busbar trunking

Busbar description

Vertical distribution length

Product compatibility

Canalis KSA busbar trunking 100…250 A

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

Number of tap-off outlets

1

[Ie] rated operational current

250 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

mounting mode

By screws

Dimension type

Fix

Length

0.8 m

Colour

White (RAL 9001)

Number of poles

4

Neutral position

Right

Mounting position

Vertical

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

10 kA

[Ipk] rated peak withstand current

28 kA

Electrical connection

Lubricated sliding contact

Width

54 mm

Height

146 mm

Product weight

6.5 kg

Radiated magnetic field

0.69 µT

Thermal stress limit

100000 kA².s

THDI

0…15 % 250 A; 15…33 % 200 A; 33…100 % 160 A

Maximum voltage drop

<0.034 V with power factor = 1 at 50 Hz with 1A for 100 m long; <0.036 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.035 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.034 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

35 °C (without derating); 55 °C (with derating factor)

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

Number of conductors (without earthing)

4

Rated current AC 50 Hz

250 A

Rated voltage AC 50 Hz

230–690 V

Number of tap-off units

1

Expansion equalization

No

Fireproof bulkhead

No

RAL-number

9001

Degree of protection (IP)

IP55

Country of origin

France

HS Code

8536.90

• EAN 3606480004353
• SAP 1200270008
• Code 82238114
