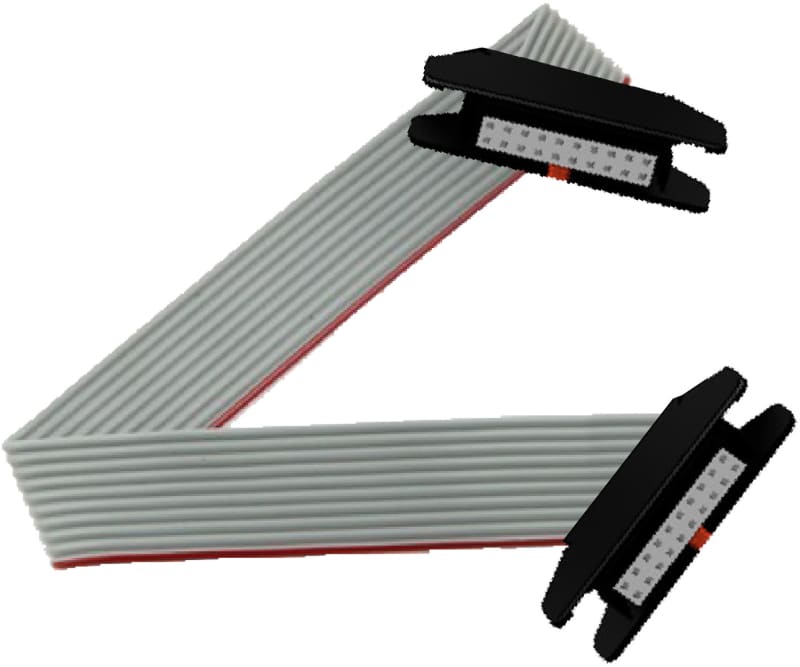

Flatcable 2XHE10, 3M
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TSXCDP302 Flat Cable 2XHE10, 3m, 0,08.
Technical Specifications
- Manufacturer part number (MPN)
- TSXCDP302
- EAN / GTIN
- 3389110603095
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Range of product
- Modicon Premium Automation platform
- Accessory / separate part designation
- Rolled ribbon connecting cable
- Accessory / separate part type
- Connecting cable
- Accessory / separate part category
- Connection accessories
- Accessory / separate part destination
- Telefast 2 sub-base; I/O module fitted with HE10 connectors
- Product specific application
- Encoder supply 5 V/10...30 V DC; Auxiliary inputs supply 24 V DC
- Product compatibility
- ABE7H08R10; TSXCTY2C; ABE7H16R20
- Cable length
- 3 m
- Electrical connection
- 2 connectors HE10, 20 ways
- Wire section
- 0.08 mm²
- AWG gauge
- 28 AWG
- Current per channel
- 0.1 A
- Product weight
- 0.25 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- CN
- Warranty (in months)
- 18
- Function
- PLC - other devices
- Length
- 3 m
- Suitable for input board PLC
- No
- Suitable for output card PLC
- No
- Suitable for digital signals
- No
- Suitable for analogue signals
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3389110603095
- SAP 1000063289
- Code 8889468
Product Documentation
