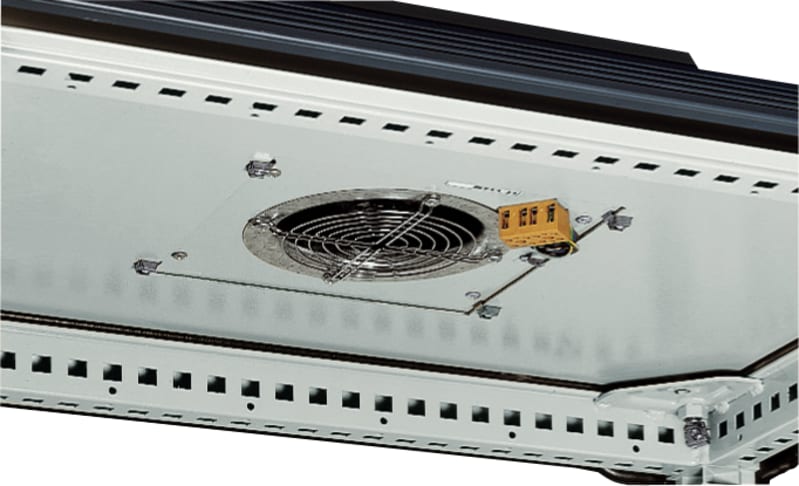

Schneider Electric Climasys forced vent. 54 M3/h, 230V, 2 metal grilles and 2 anti-insect filters NSYCVF54M230MM2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF54M230MM2 FAN 54M3 M/2 VENT.RIS, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF54M230MM2
- EAN / GTIN
- 3606480151415
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Type of filter
- Anti-insect
- Flow rate
- Free flow rate without filter or grille: 170 m3/h; Overall flow rate: 54 m3/h at 50 Hz
- Input voltage
- 230 V 50/60 Hz
- Height
- External: 120 mm
- Width
- External: 120 mm
- Depth
- External : 38 mm
- Cut-out dimensions
- 96 x 96 mm
- Material
- Outlet grille: steel; Filter: stainless steel 304L
- Colour
- Outlet grille: grey (RAL 7035)
- IP degree of protection
- IP33
- Device composition
- 1 axial motor; 1 power cord; 2 anti-insect filter; 2 metal louvre
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 300
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP33
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 18 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 54 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 50 dB(A)
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151415
- SAP 1000089062
- Code 8913413
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Active arc fault detection RCBO, ACTI9 Active ICV40N ARC, 1P+N, 16A, C curve, 30MA, type A-SI, 6000A A9TDFC616
Schneider Electric
A9 Comb busbar with connectors 1PN 24MOD
A9XPP624
Schneider Electric
Schneider Electric TeSys LRD - electronic thermal overload relay - 3P - 0.4...2 A LR9D02
Schneider Electric
Shelf for FDP dokumentskap A3
FFS00704652
Schneider Electric

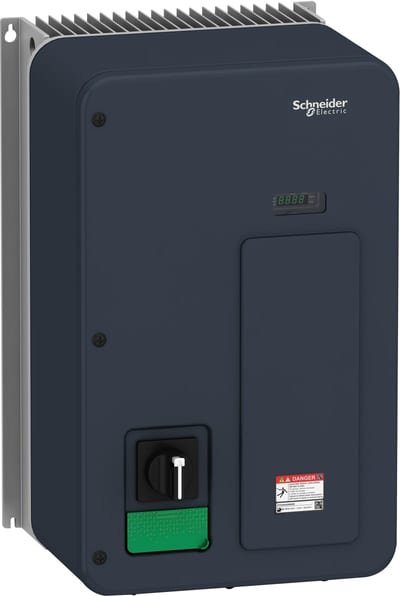

Schneider Electric Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, enclosed ATV320U22N4WS
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 7A 3P - with EverLink GV4LE07N
Schneider Electric
Schneider Electric Switch disconnector, ComPacT NSXm 100NA, 4 poles, thermal current Ith 100A, compression lugs and busbar connectors C114100BS
Schneider Electric

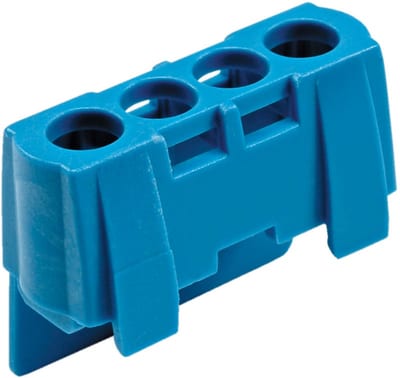

Cover f/coupling.st. 4 HOLES blue
