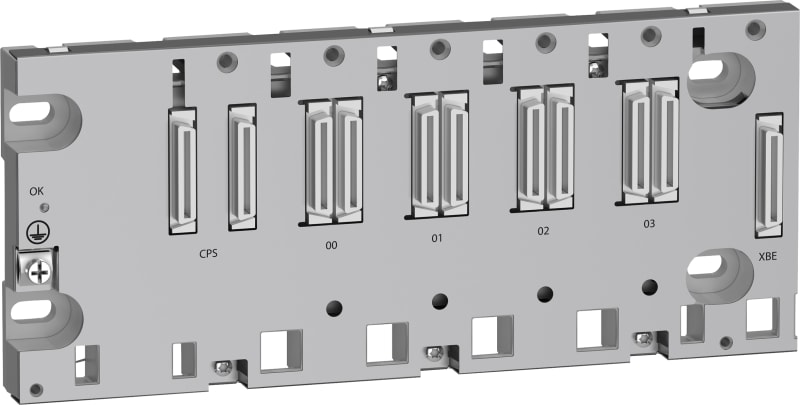

Schneider Electric rack X80 - 4 slots - Ethernet backplane BMEXBP0400

Schneider Electric BMEXBP0400 eX80 Ethernet rack, 4 modules.

Manufacturer part number (MPN)

BMEXBP0400

EAN / GTIN

3595864174037

Sales unit

pcs

Range of product

Modicon X80

Accessory / separate part type

Rack

Number of slots

4 bus X + Ethernet

Product compatibility

I/O module; BMX processor; Specific application module; BMXCPS power supply; BME processor

Power consumption in W

162 mW 3.3 V DC; 2.8 W 24 V DC

Electrical connection

1 connector (XBE) expansion module

Fixing mode

By 4 screws - diameter: 4.32…6.35 mm, mounting on panel; By 4 M6 screws, mounting on plate; By clips, mounting on 35 mm symmetrical DIN rail

Current consumption

49 mA at 3.3 V DC; 118 mA at 24 V DC

MTBF reliability

1588025 H

Product weight

0.705 kg

IP degree of protection

IP20

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % without condensation

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.600 cm

Package 1 Width

15.300 cm

Package 1 Length

32.500 cm

Package 1 Weight

743.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

13

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

10.305 kg

Country of origin

FR

Warranty (in months)

18

Width

242.4 mm

Height

105.11 mm

Depth

19 mm

Suitable for safety functions

No

Type of voltage (input voltage)

AC/DC

Redundancy

No

With integrated power supply

Yes

Suitable for rail mounting

Yes

Explosion safety category for gas

None

Explosion safety category for dust

None

Appendant operation agent (Ex ia)

No

Front built-in possible

Yes

Rack-assembly possible

Yes

Wall mounting/direct mounting

Yes

Input voltage DC

3.3–24 V

Max. output current DC

118 A

Max. input current DC

118 A

Performance level according to EN ISO 13849-1

None

Type of output voltage

AC/DC

SIL according to IEC 61508

None

HS Code

8538.10
