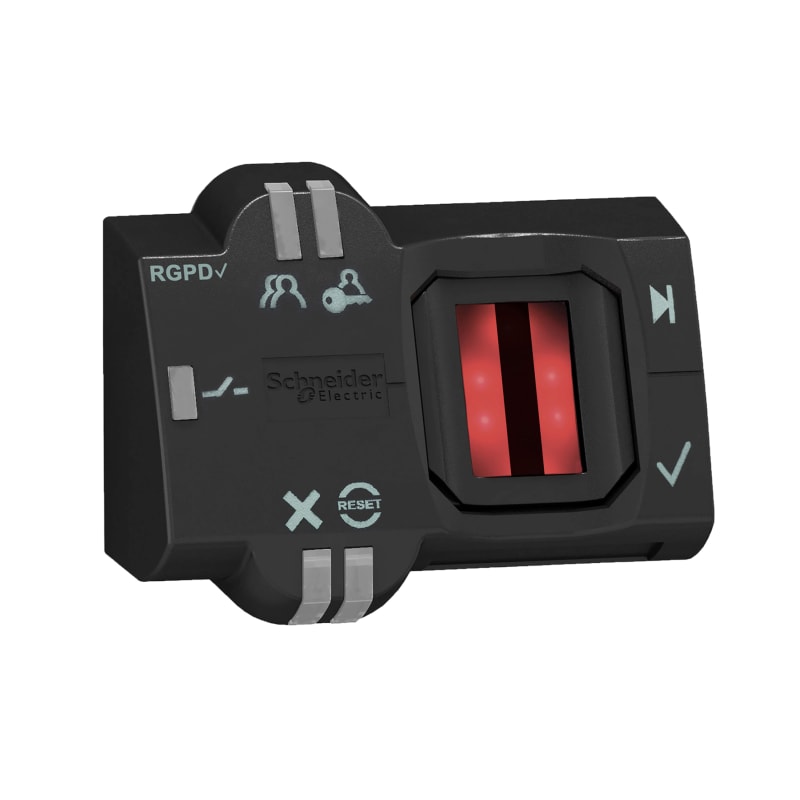

Schneider Electric Biometric switch bistable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC XB5S6B2M12

Schneider Electric XB5S6B2M12 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Fingeravtrykksbryter with bistabil output and M12 socket.

Manufacturer part number (MPN)

XB5S6B2M12

EAN / GTIN

3606489824914

HS code

8536.90

Sales unit

pcs

Package quantity

8 pcs

Product or component type

Biometric switch RGPD

Product specific application

Industrial machines; Materials handling

Device short name

XB5S

Bezel material

Plastic

Mounting diameter

22 mm

Output type

PNP

Sale per indivisible quantity

1

IP degree of protection

IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529

Type of operator

Stay put

Operator position information

2 positions

Operator profile

fingerprint reader

Memory usage

200 users with up to 2 fingerprints per user

Enclosure material

Polyamide PA66

Cable insulation material

PvR

Operating position

Horizontal position; Flat surface installation; Vertical surface installation

Function of module

Bi-stable

Product weight

0.183 kg

Marking

CE

Local signalling

1 LED (green) for output state indicator; 1 LED (orange) for administrator's registration mode; 1 LED (orange) for operator's registration mode; 1 LED (red) for error; 1 LED (red) for reset

Short-circuit protection

250 mA external fuse type gG

[Us] rated supply voltage

24 V DC

Electrical connection

M12 connector of 0.2 m

Supply voltage limits

20…30 V DC

Protection type

Reverse polarity; Overload protection; Short-circuit

Maximum switching current

200 mA

[Ures] residual voltage

1 V closed state

Current consumption

<= 70 mA no-load

Maximum delay first up

3 s + 0.5 ms per user registered

Maximum delay recovery

1.5 s

Maximum delay response

1.5 s

Range of product

Harmony XB5S

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-5…50 °C

NEMA degree of protection

NEMA 12

Standards

IEC 61000-6-4; IEC 61000-6-2

Product certifications

CSA; UL

Vibration resistance

+/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6; 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

8

Warranty (in months)

18

HS Code

8536.90

• EAN 3606489824914
• SAP 1200271336
• Code 82235421
