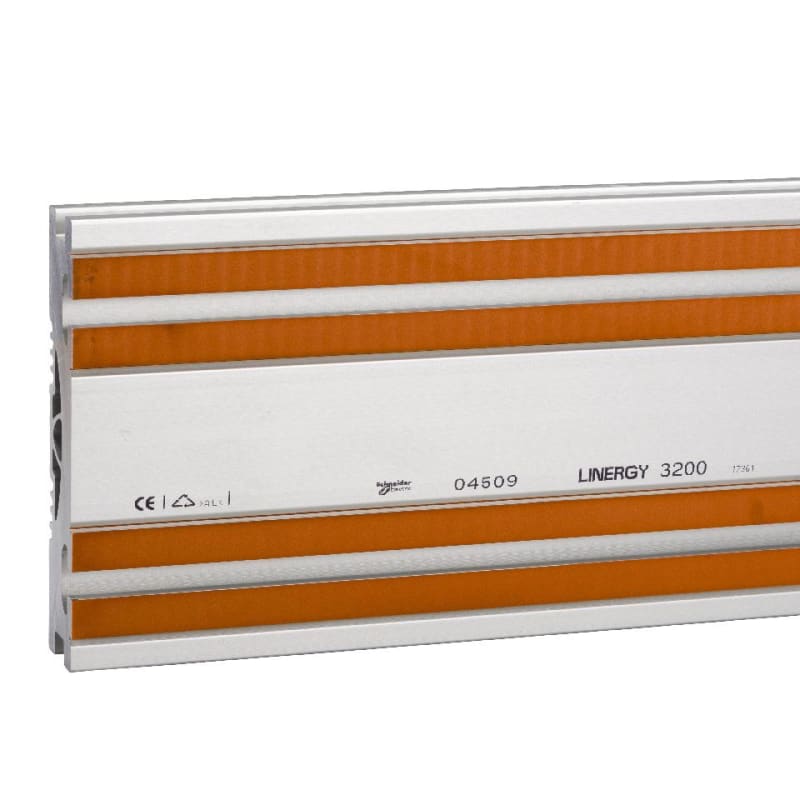

Busbar-vertical-Linergy-LGYE 3200A (LVS04509)

Schneider Electric LVS04509 Busbar-vertical-Linergy-LGYE for mounting in PrismaSeT P- length 1670mm- 3200A.

Manufacturer part number (MPN)

LVS04509

EAN / GTIN

3606481870384

Sales unit

pcs

Rated current

3200 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGYE

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Vertical, operating position: lateral; Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

3200 A

[Icw] rated short-time withstand current

60 kA (1 s) for 2 supports (horizontal position); 85 kA (1 s) for 3 supports (horizontal position); 85 kA (1 s) for 7 supports (lateral position); 100 kA (1 s) for 4 supports (horizontal position); 100 kA (1 s) for 9 supports (lateral position); 60 kA (1 s) for 3 supports (lateral position); 75 kA (1 s) for 5 supports (lateral position)

Permissible current

3200 A at 35 °C: <= IP31; 2800 A at 35 °C: IP31

Length

1625 mm

Colour

Natural

Type of busbar connection

Double t-slot

Connection pitch

Free connection position

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

18

Warranty (in months)

18

Width

150 mm

Model

Profile

Height

31 mm

Flexible

No

Surface protection

Untreated

Rated current In

3200 A

Country of origin

France

HS Code

8536.90

• EAN 3606481870384
• SAP 1200546959
• Code 82879371
