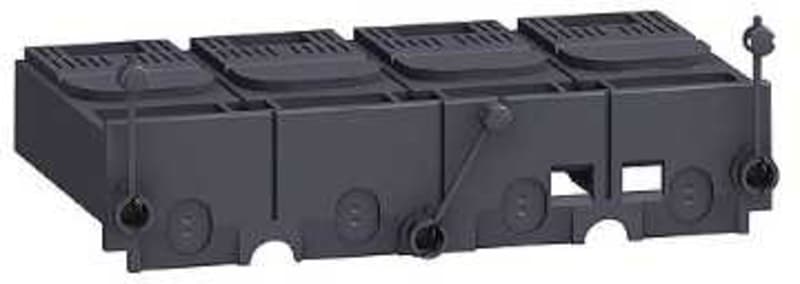

Schneider Electric LV429516 — Short terminal shield, NSX100/160/250, pitch 35 mm, IP40, 4 poles
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429516 is a Short terminal shield for the ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250) moulded-case circuit-breaker range, for 4-pole devices at 35 mm connection pitch. It shields the power terminals against direct contact and establishes the clearance distance required by IEC 60947-2, and may be fitted upstream and downstream of fixed, plug-in or withdrawable devices. Degree of protection IP40, mechanical impact protection IK07. RoHS 2011/65/EU and REACH compliant; CE marked.
Technical Specifications
- Type
- Short terminal shield (insulation accessory)
- Compatible devices
- ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250)
- Poles
- 4
- Connection pitch
- 35 mm
- Degree of protection
- IP40
- Mechanical impact protection
- IK07
- Function
- protects against direct contact with the power circuit; provides the clearance distance required by IEC 60947-2; may be fitted upstream and downstream of fixed, plug-in or withdrawable devices
- Standard
- IEC 60947-2 (circuit-breaker accessory)
- Compliance
- RoHS 2011/65/EU, REACH; CE marked
- Manufacturer part number (MPN)
- LV429516
- EAN / GTIN
- 3606480019906
- HS code
- 8538.90
- Product or component type
- Short terminal shield
- Range compatibility
- ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX250; ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPacT ComPacT NSX DC NSX100 DC; ComPacT ComPacT NSX DC NSX160 DC; ComPacT ComPacT NSX DC NSX250 DC; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; EasyPact EasyPact CVS250
- Accessory / separate part type
- Insulation accessories
- Poles description
- 4P
- Quantity per set
- 1
- IP degree of protection
- IP40 conforming to IEC 60529
- Product compatibility
- Circuit-breaker; Plug-in base
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- Standard
- IEC 60947-2
- HS Code
- 8538.90
Cross References
- EAN 3606480019906
- SAP 1000092350
- Code 8906511
