MEMBRANE FLANGE-FL21-35 knockout-PrismaSeTG
Pricing
Request a quote
We reply within 24 hours
Product Description

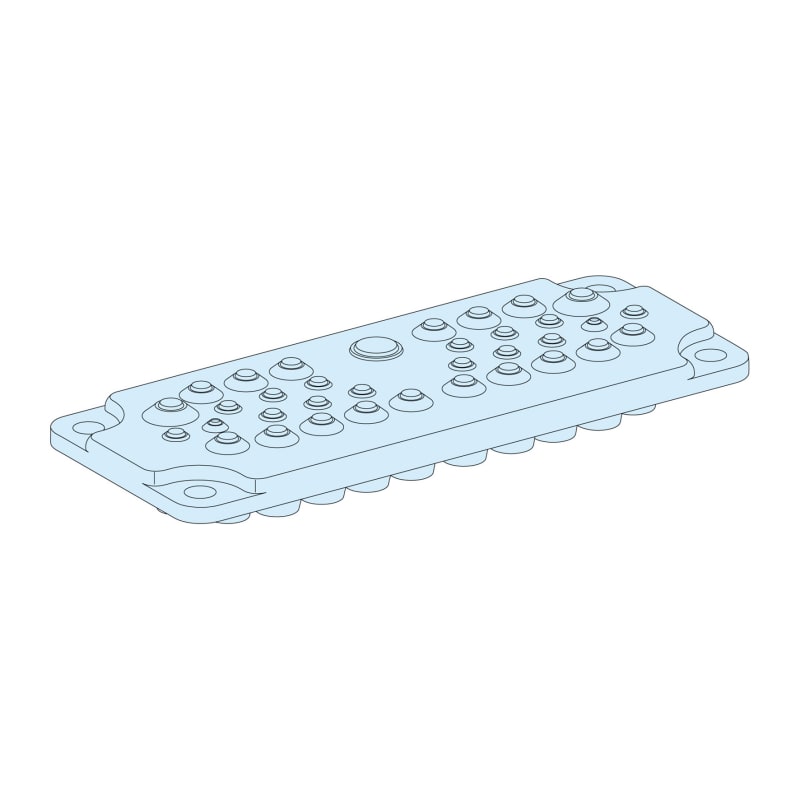

Schneider Electric LVS08896 — MEMBRANE GLAND PLATE 35 ENTRIES 5-32MM.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08896
- EAN / GTIN
- 3606481879349
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- PrismaSeT G
- Range
- PrismaSeT
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Product or component type
- Gland plate
- Accessory / separate part category
- Enclosure accessory
- Product compatibility
- IP30 enclosure; IP31 enclosure; IP55 enclosure; IP43 enclosure
- Enclosure/cubicle description
- Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 600 mm; Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm
- Type of gland plate
- Membrane
- Mounting location
- Top; Bottom
- Material
- Insulated material
- Cable entry number
- 4 diameter: 7…14 mm; 8 diameter: 3 mm; 1 diameter: 17…30 mm; 4 diameter: 3…7 mm; 4 diameter: 5 mm; 10 diameter: 7…12 mm; 10 diameter: 7…10 mm; 2 diameter: 7…18 mm
- Quantity per set
- Set of 1
- Depth
- 180 mm
- Product weight
- 0.28 kg
- Colour
- White (RAL 9003)
- IP degree of protection
- IP55
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 8.300 cm
- Package 1 Length
- 21.700 cm
- Package 1 Weight
- 281.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 20
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 5.920 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 240
- Package 3 Height
- 43.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 81.440 kg
- Warranty (in months)
- 18
- Width
- 225 mm
- Model
- Membrane
- Thickness
- 11 mm
- Surface protection
- Untreated
- Pre-stamping
- No
- Thread type
- Metric
- Number of connector holes
- 35
- Degree of protection (NEMA)
- 1
- Country of origin
- Finland
Standards & Compliance
