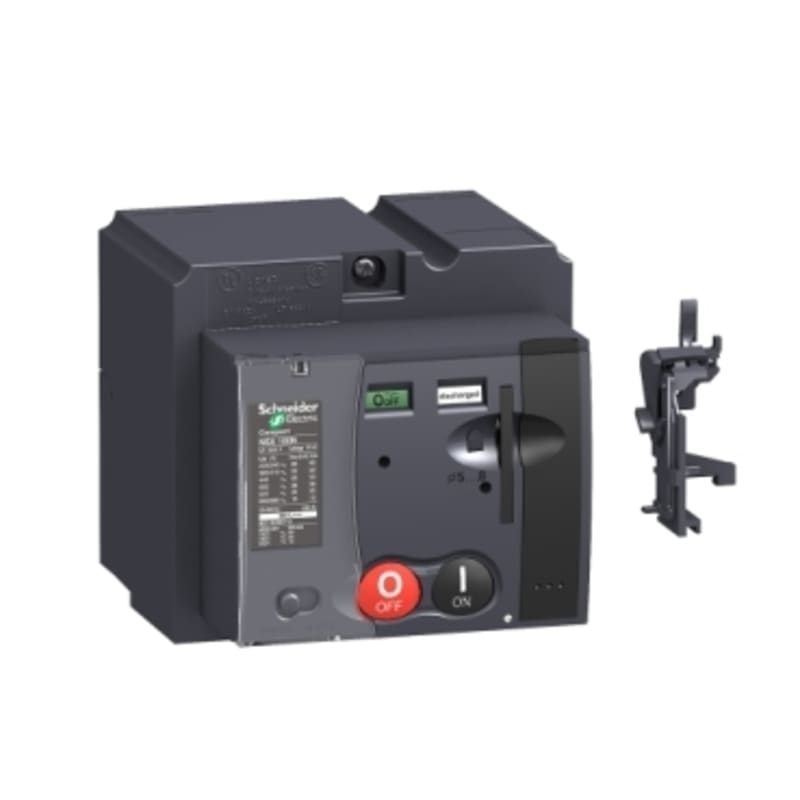

Schneider Electric standard motor mechanism module MT100/160, ComPact NSX100/160, 48/60 VAC 50/60 Hz LV429440
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429440 Motor mechanism. 48-60VAC NSX100/160.
Technical Specifications
- Manufacturer part number (MPN)
- LV429440
- EAN / GTIN
- 3606480020063
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Voltage
- 48-60 V AC
- Device short name
- MT250
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 48...60 V AC 50/60 Hz
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 160 A; 100 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in VA
- 500 VA closing; 500 VA opening
- Provided equipment
- SDE adaptor
- Locking options description
- 1 to 3 padlocks Ø 5 to Ø 8; Padlocking in OFF position
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 48–60 V
- Rated control supply voltage AC 60 Hz
- 48–60 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020063
- SAP 1000092324
- Code 8859746
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Selector switch, Harmony XB4 - ATEX D, metal, 22mm, 3 positions, black standard handle, stay put, screw clamp terminals, 2NO XB4BD33GEX
Schneider Electric
Schneider Electric Retrofit handle, PrismaSeT P, Rotary Handle Spare Parts with Rod LVS01219
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800LB, 200KA at 415VAC, 800A, 4P, drawout, manually operated, without control unit C080B4WM
Schneider Electric
Illuminated mushroom pushbutton impulse white
ZB4BW413
Schneider Electric
Schneider Electric variable speed drive, ATV950, 45kW, 400/480V, w braking unit/switch, IP55 ATV950D45N4E
Schneider Electric
Schneider Electric Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 5 to 100A, 24 VDC LTMR100EBD
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 2P, 63A, A type, instantaneous, 500MA, 230...415VAC A9V26263
Schneider Electric
Schneider Electric advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 64 MB HMIGTO2300
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV429440?
- LV429440 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV429440.
- What is the HS code for LV429440?
- The customs tariff (HS) code for LV429440 is 8501.20.
- Who manufactures LV429440?
- LV429440 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV429440?
- Yes — the LV429440 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV429440?
- The minimum order quantity is 1.
- Is LV429440 available?
- Yes — LV429440 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
