Illuminated mushroom pushbutton impulse white
Pricing
Request a quote
We reply within 24 hours
Product Description

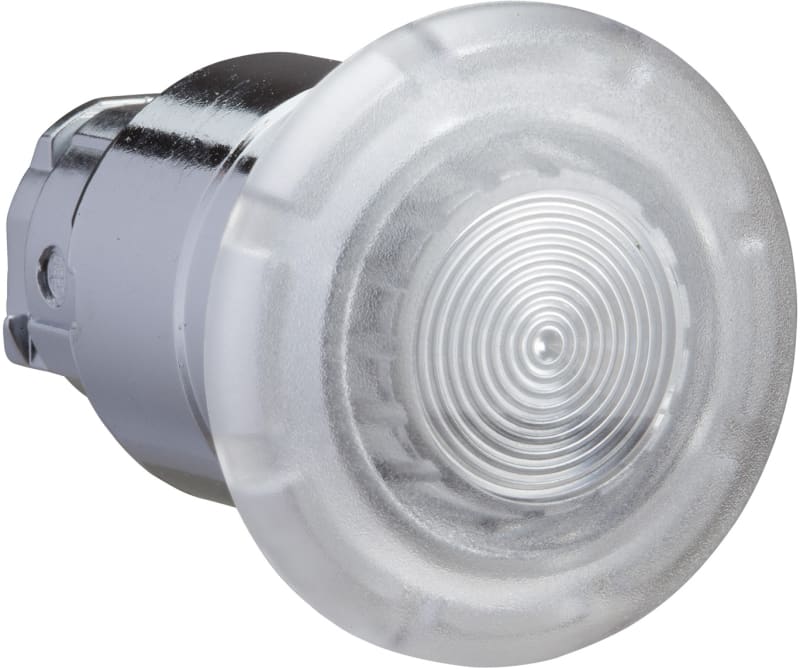

Schneider Electric ZB4BW413 illuminated mushroom pushbutton impulse white.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BW413
- EAN / GTIN
- 3389110666472
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for illuminated push-button
- Device short name
- ZB4
- Product compatibility
- Universal LED
- Bezel material
- Chromium plated metal
- Head type
- Standard
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- White mushroom Ø 40 mm, unmarked
- Cap/operator or lens colour
- White
- CAD overall width
- 40 mm
- CAD overall height
- 40 mm
- CAD overall depth
- 53 mm
- Product weight
- 0.051 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 10000000 cycles
- Electrical composition code
- M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with in
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110666472
- SAP 1000003491
- Code 8470092
Product Documentation
More from Schneider Electric
Schneider Electric

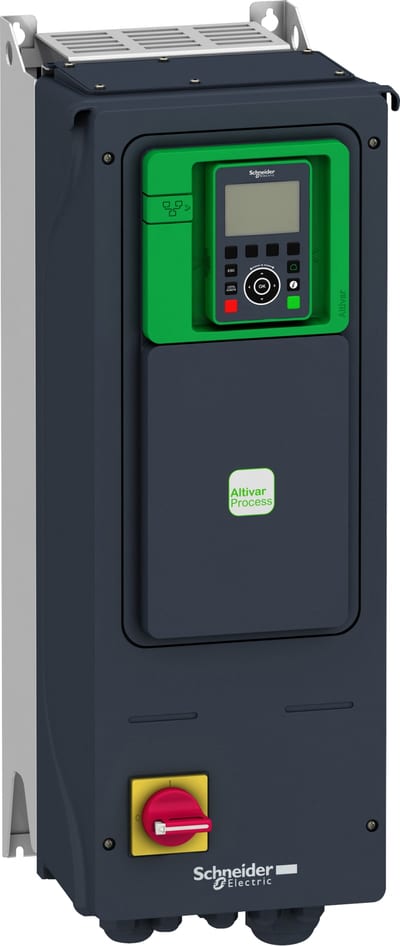

Schneider Electric variable speed drive, ATV950, 45kW, 400/480V, w braking unit/switch, IP55 ATV950D45N4E
Schneider Electric
Schneider Electric Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 5 to 100A, 24 VDC LTMR100EBD
Schneider Electric

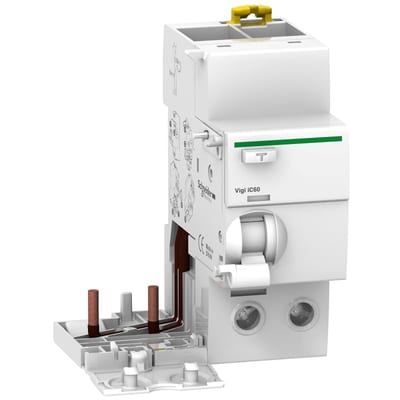

Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 2P, 63A, A type, instantaneous, 500MA, 230...415VAC A9V26263
Schneider Electric

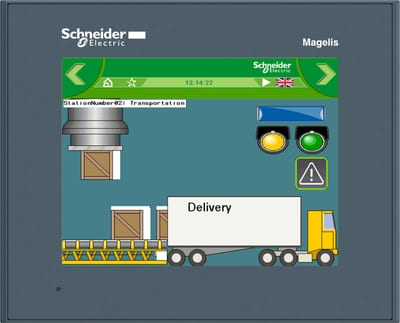

Schneider Electric advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 64 MB HMIGTO2300
Schneider Electric
Front Cover FOR NSX100-250
LV434435
Schneider Electric

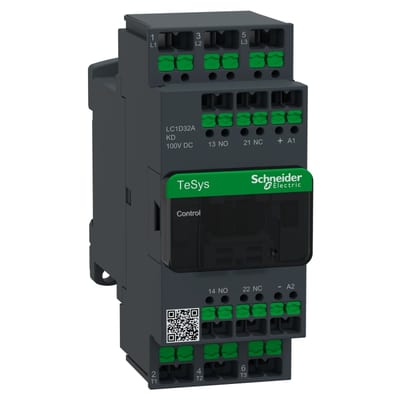

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 32A, 100V DC coil, snap-in terminals LC1D32AKD
Schneider Electric

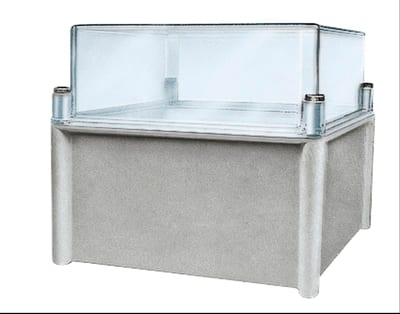

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 54X72X23CM NSYPLS5472AG
